Home >> Chrysler >> 1996 >> Concorde V6-201 3.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Group Number >> Group 8W-80 Connector Pin-Outs >> Sheet 8W-80-24

Sheet 8W-80-24

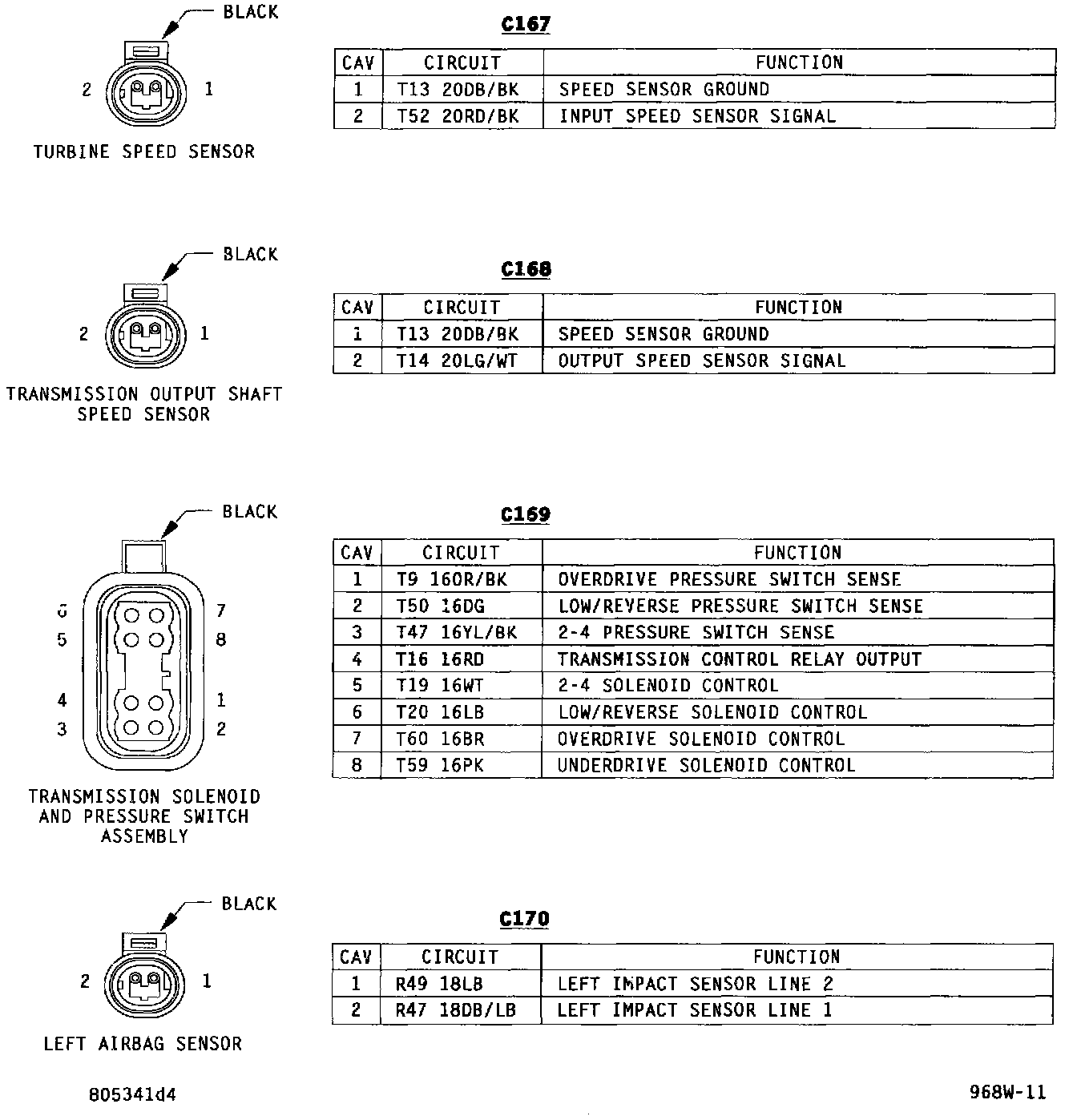

Connector Pin-Outs (Part 20 Of 69):
