Home >> Chrysler >> 1996 >> Concorde V6-201 3.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Group Number >> Group 8W-45 Body Control Module >> Sheet 8W-45-14

Sheet 8W-45-14

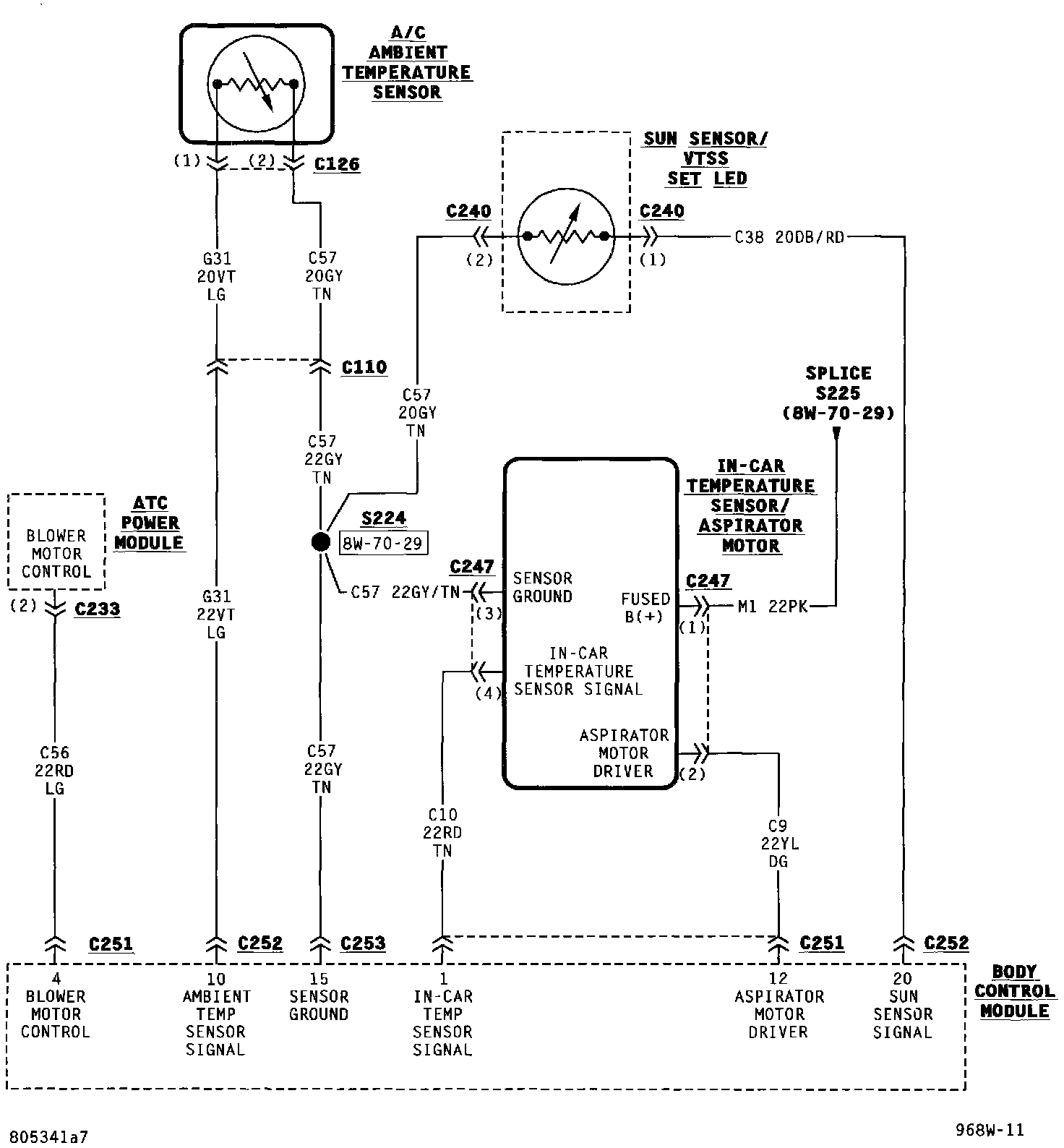

Body Control Module (Part 11 Of 13):
