Home >> Chrysler >> 1996 >> Concorde V6-201 3.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Group Number >> Group 8W-42 Air Conditioning/Heater >> Sheet 8W-42-7

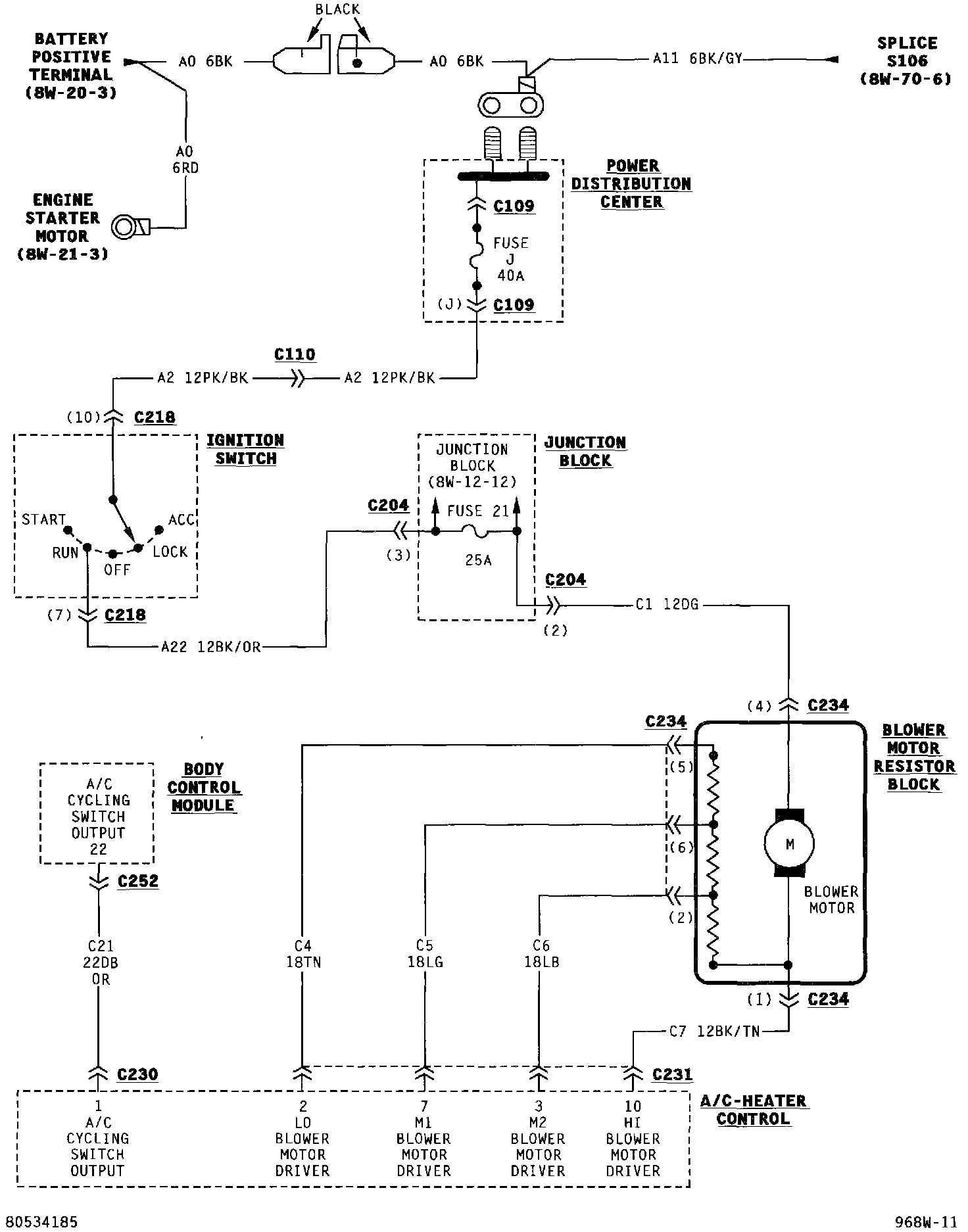

Sheet 8W-42-7

Air Conditioning /Heater:
