Home >> Chrysler >> 1996 >> Concorde V6-201 3.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Group Number >> Group 8W-40 Instrument Cluster >> Sheet 8W-40-6

Sheet 8W-40-6

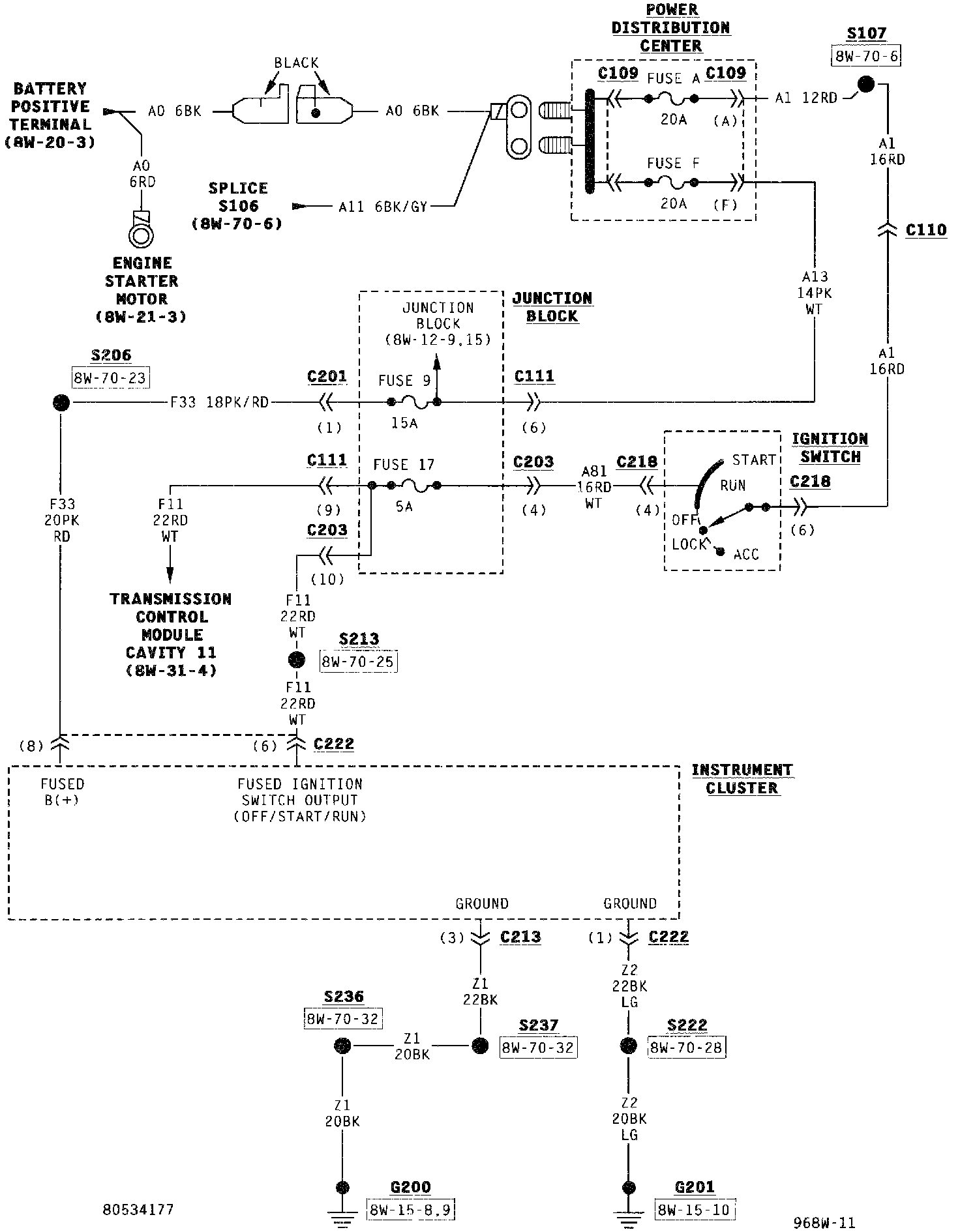

Instrument Cluster (Part 1 Of 10):
