Home >> Chrysler >> 1996 >> Concorde V6-201 3.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Group Number >> Group 8W-30 Fuel/Ignition System >> Sheet 8W-30-9

Sheet 8W-30-9

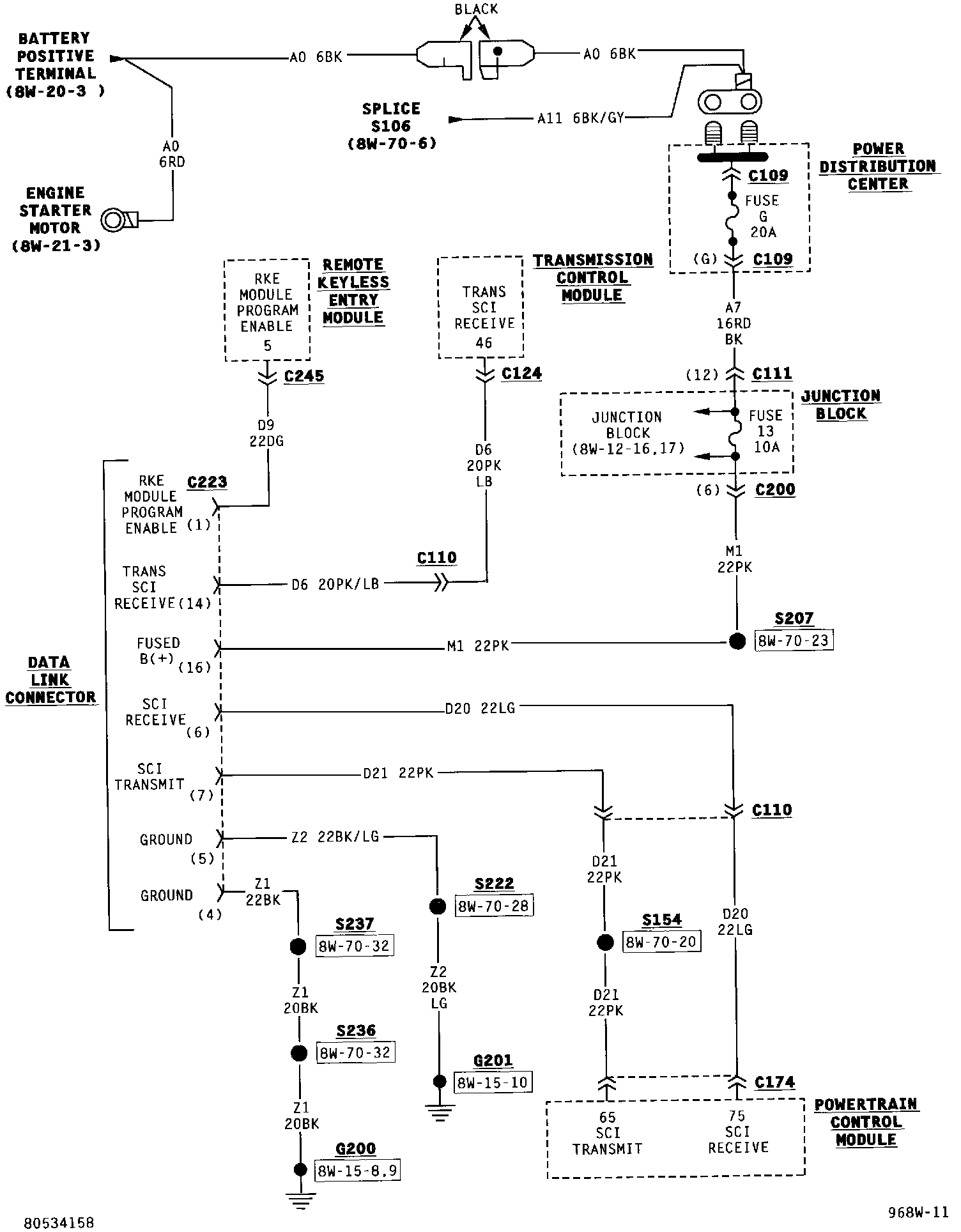

Fuel/Ignition Systems (Part 2 Of 16):
