Heater, A/C Housing - Water Ingestion
NO: 24-08-97GROUP: Heater & A/C
DATE: May 9, 1997
SUBJECT:
Water Ingestion Into Heater/AC Housing
THIS BULLETIN SUPERSEDES TECHNICAL SERVICE BULLETIN 24-04-94 REV. A DATED OCT. 14, 1994 WHICH SHOULD BE REMOVED FROM YOUR FILES AND NOTED IN THE 1994 TECHNICAL SERVICE BULLETIN MANUAL (PUBLICATION NO. 81-699-95054). THE MODELS, PARTS, AND REPAIR PROCEDURE HAVE BEEN REVISED.
MODELS:
1993 - 1997 (LH) Concorde/Intrepid/Vision/LHS/New Yorker
SYMPTOM/CONDITION:
Seized or frozen blower motor caused by excess water entering through the fresh air intake after vehicle sets for a long period of time in freezing weather. This condition can occur when the vehicle is:
^ Subjected to certain car washes or other extreme circumstances introducing a large volume of water into the wet plenum; and
^ The mode is set to "OUTSIDE AIR"; and
^ The blower speed is on "HIGH" or "M2".
DIAGNOSIS:
If water has collected in the blower motor housing and the vehicle is subjected to below freezing temperatures perform the Repair Procedure.
PARTS REQUIRED:
1 04756940AB Screen, Cowl Plenum
REPAIR PROCEDURE:
This bulletin involves drilling a hole in the blower motor cover, modifying the right heat distribution duct and replacing the cowl plenum screen.
1. Loosen and lower the right side of the right heat distribution duct.
2. Drill one 1/16" hole in the center of the blower motor cover to drain any water present and allow for future drainage, Figure 1.
NOTE:
CARE MUST BE TAKEN WHEN DRILLING HOLE IN ORDER TO PREVENT DAMAGE TO BLOWER MOTOR LOCATED ON THE OPPOSITE SIDE OF THE BLOWER COVER. DO NOT DRILL HOLE LARGER THAN SPECIFIED. THIS WILL ALLOW COLD AIR TO ENTER VEHICLE AT THE PASSENGER FOOT AREA.

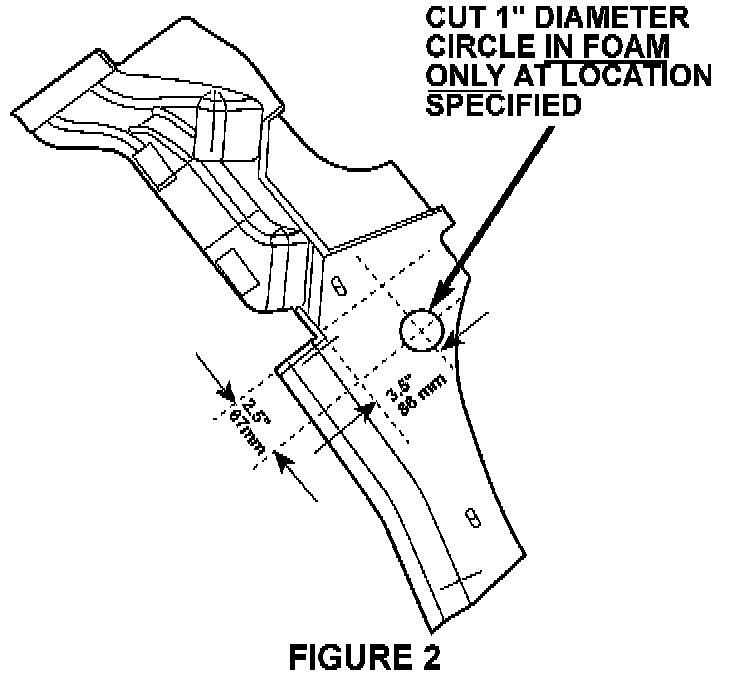

3. Cut out a 1" diameter circle of foam off of the top of the right heat distribution duct, Figure 2.
4. Install right heat distribution duct.
5. Remove cowl cover as described on page 23-25 of the 1997 Concorde/Intrepid/Vision/LHS Service Manual (Publication No. 81-270-7140).
6. Remove cowl plenum screen from right side plenum area.
1993-1994 MODEL YEAR, PERFORM STEPS 7 THRU 10, 1995-1997 MODEL YEAR, SKIP TO STEP 9.

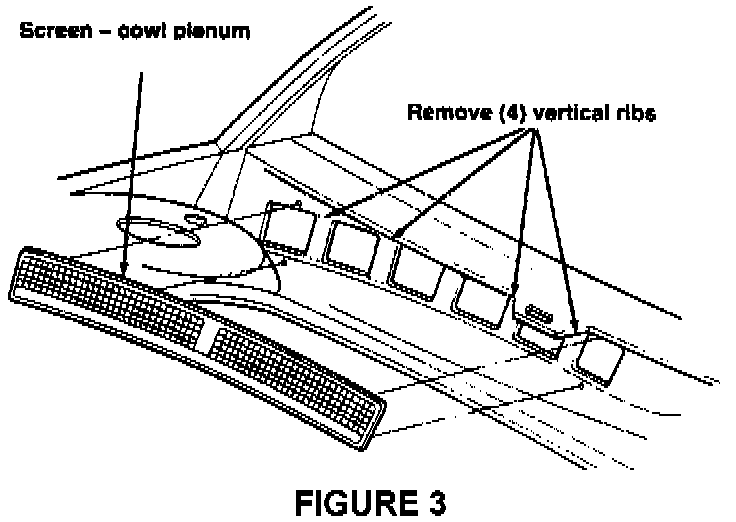

7. Remove (4) vertical ribs from the cowl plenum closure as shown using a hack-saw or saws-all, Figure 3.
NOTE:
CARE MUST BE TAKEN TO ENSURE REMOVED SHEETMETAL DOES NOT ENTER THE HVAC UNIT THROUGH THE FRESH AIR INTAKE.
8. Touch up exposed bare sheetmetal with Mopar Touch-Up Paint or equivalent.
9. Install revised cowl plenum screen, p/n 04756940AB.
10. Install cowl cover.
POLICY: Reimbursable within the provisions of the warranty.
TIME ALLOWANCE:
Labor Operation No: 24-65-32-94 1995 - 1997 (LH) 0.5 Hrs.
1993 - 1994 (LH) 0.7 Hrs.
FAILURE CODE: P8 - New Part
