Home >> Chrysler >> 1996 >> Concorde V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Heating and Air Conditioning >> Manual HVAC System >> 25A Identifying Manual A/C System Problems

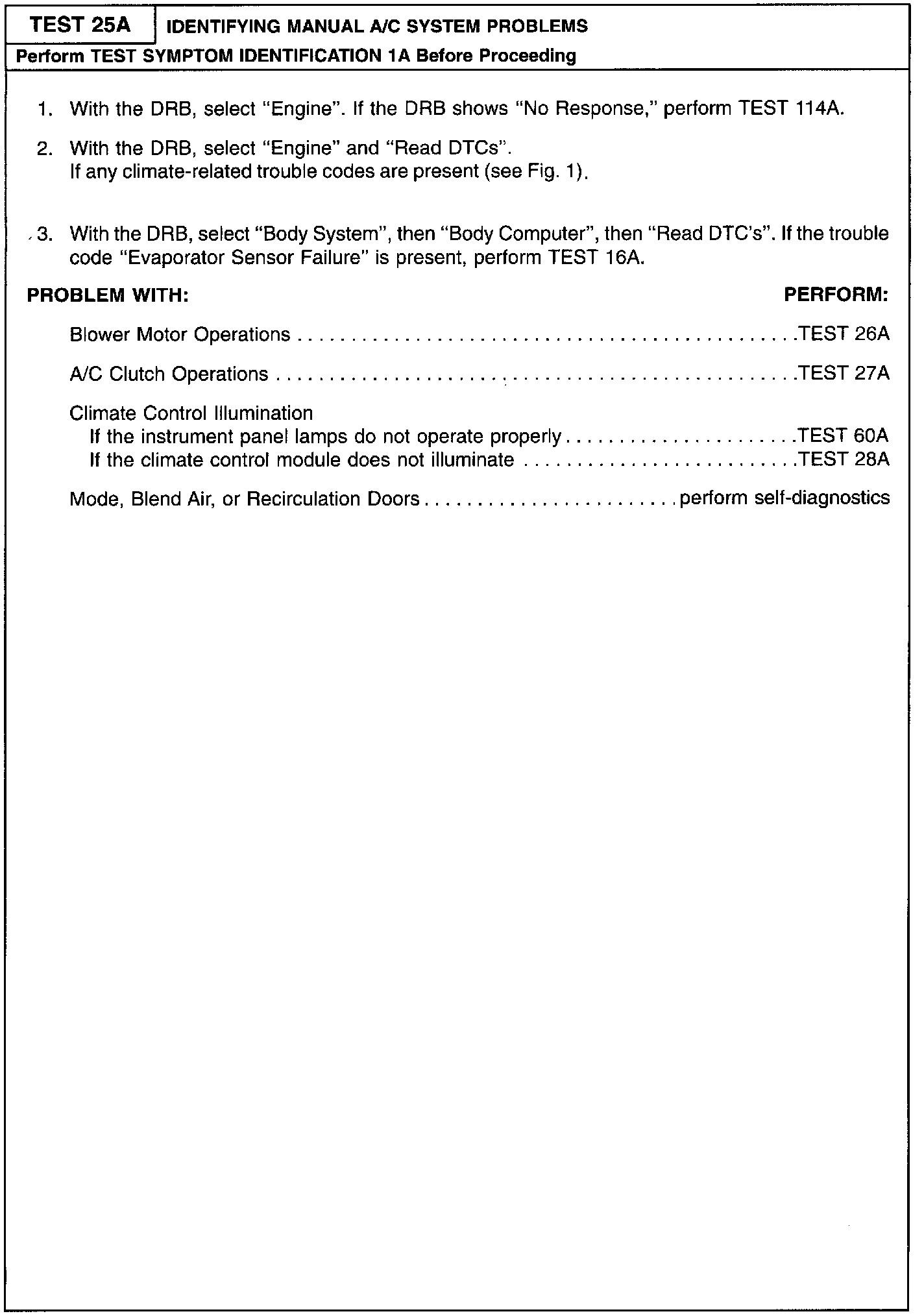

25A Identifying Manual A/C System Problems

Related Images:

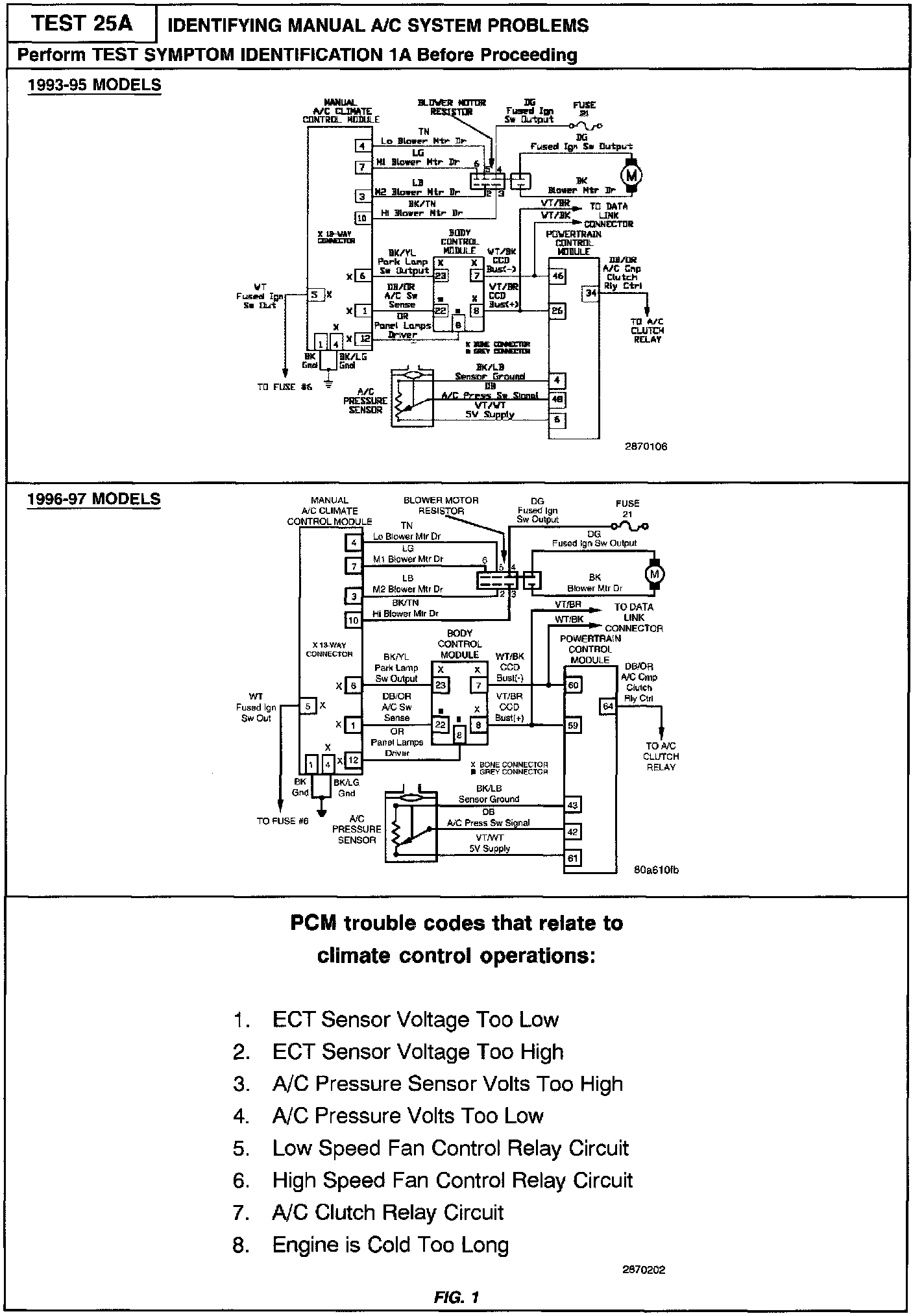

Diagnostic Chart:
