4A ATC Control Head Communication Failure
4A ATC Control Head Communication Failure

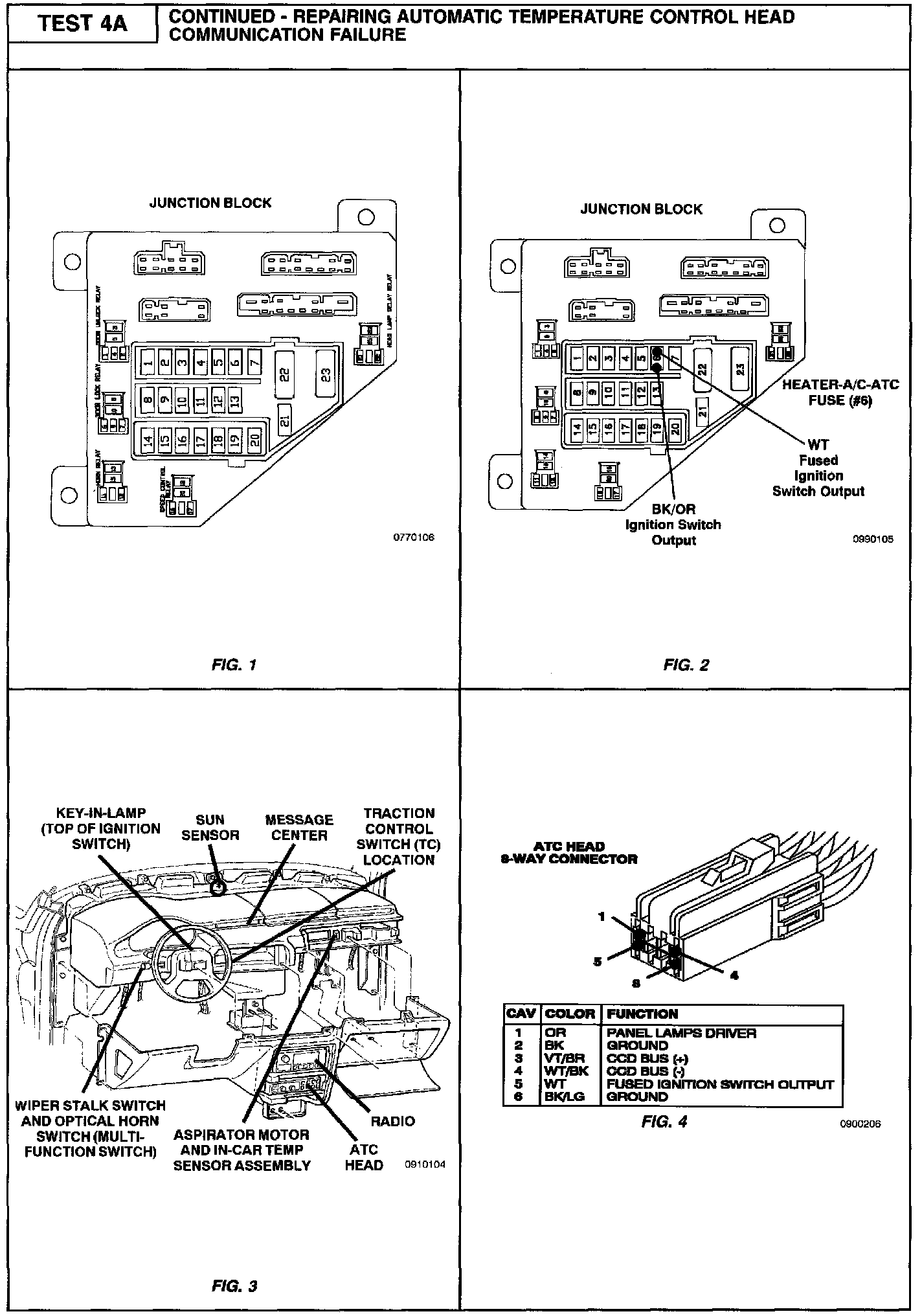

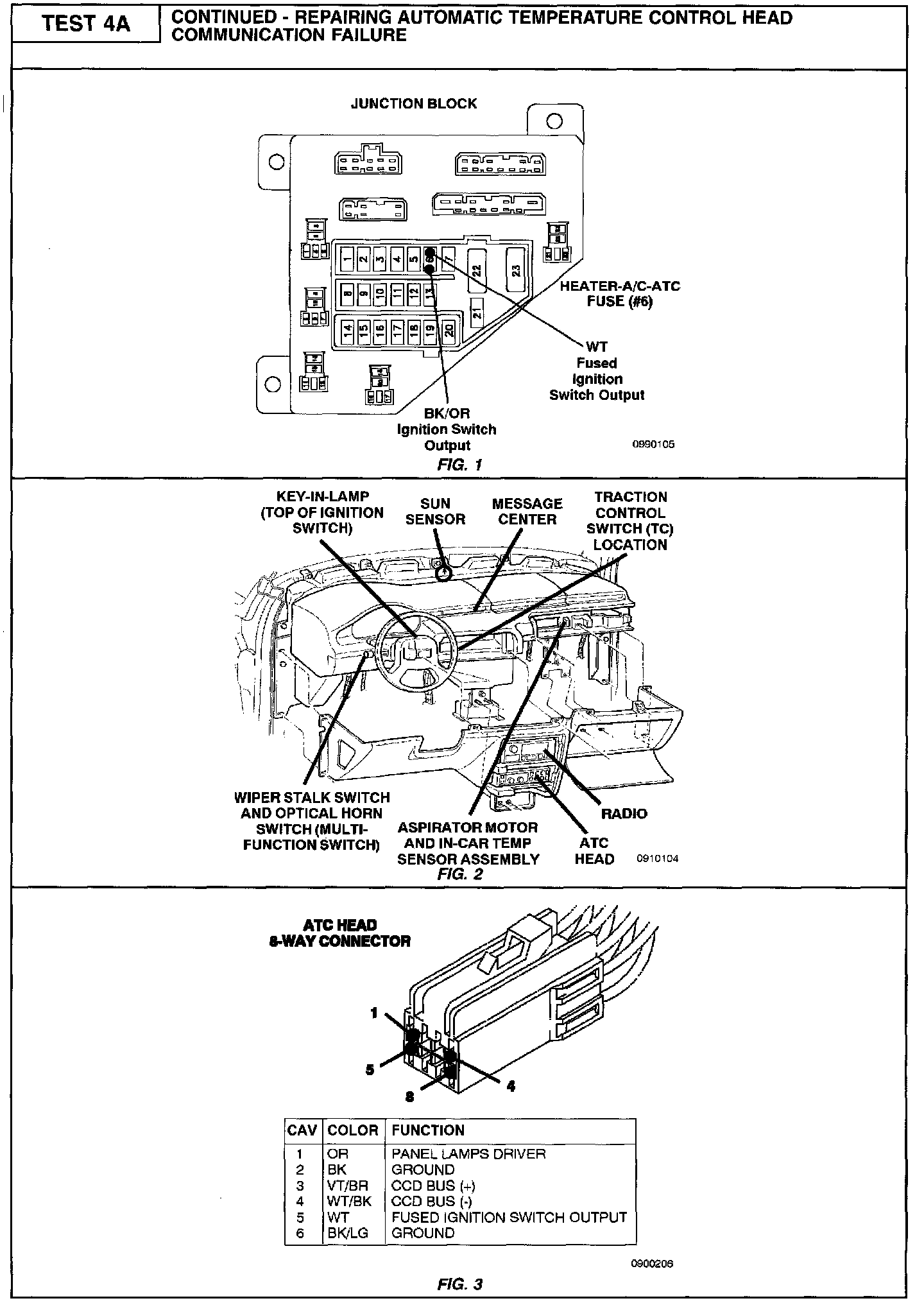

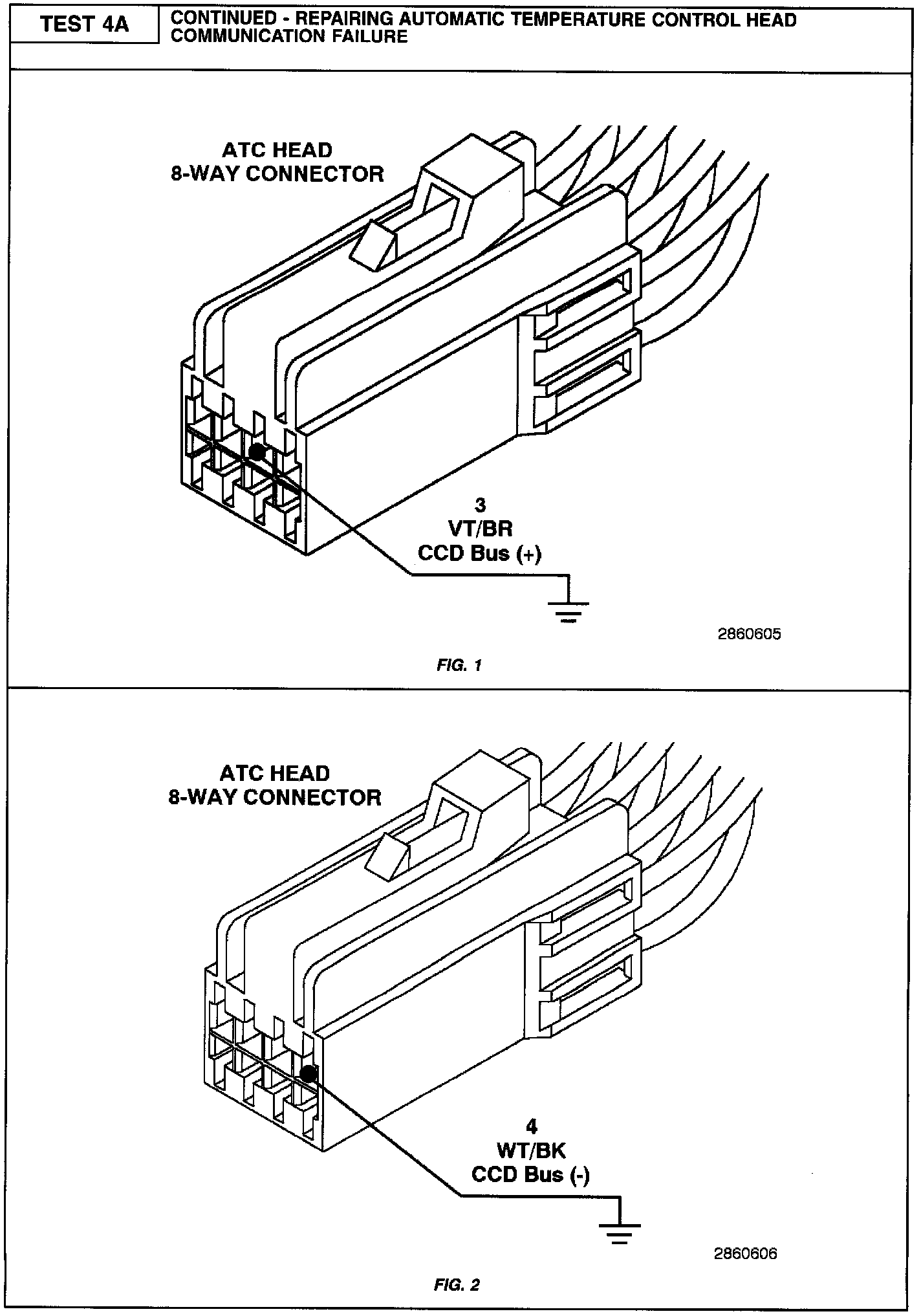

Related Images:

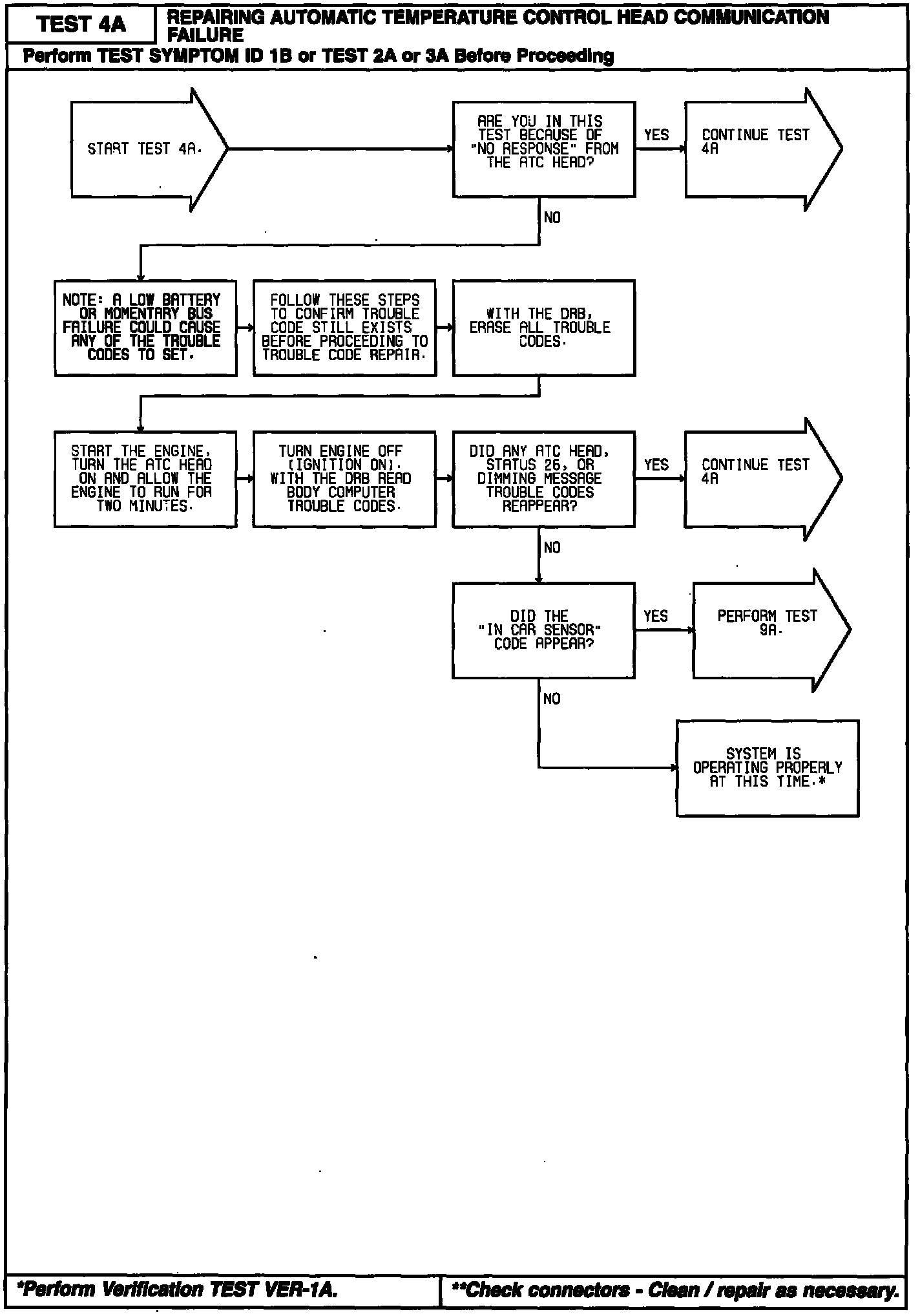

4A Part 1 Of 4:
Related Images:

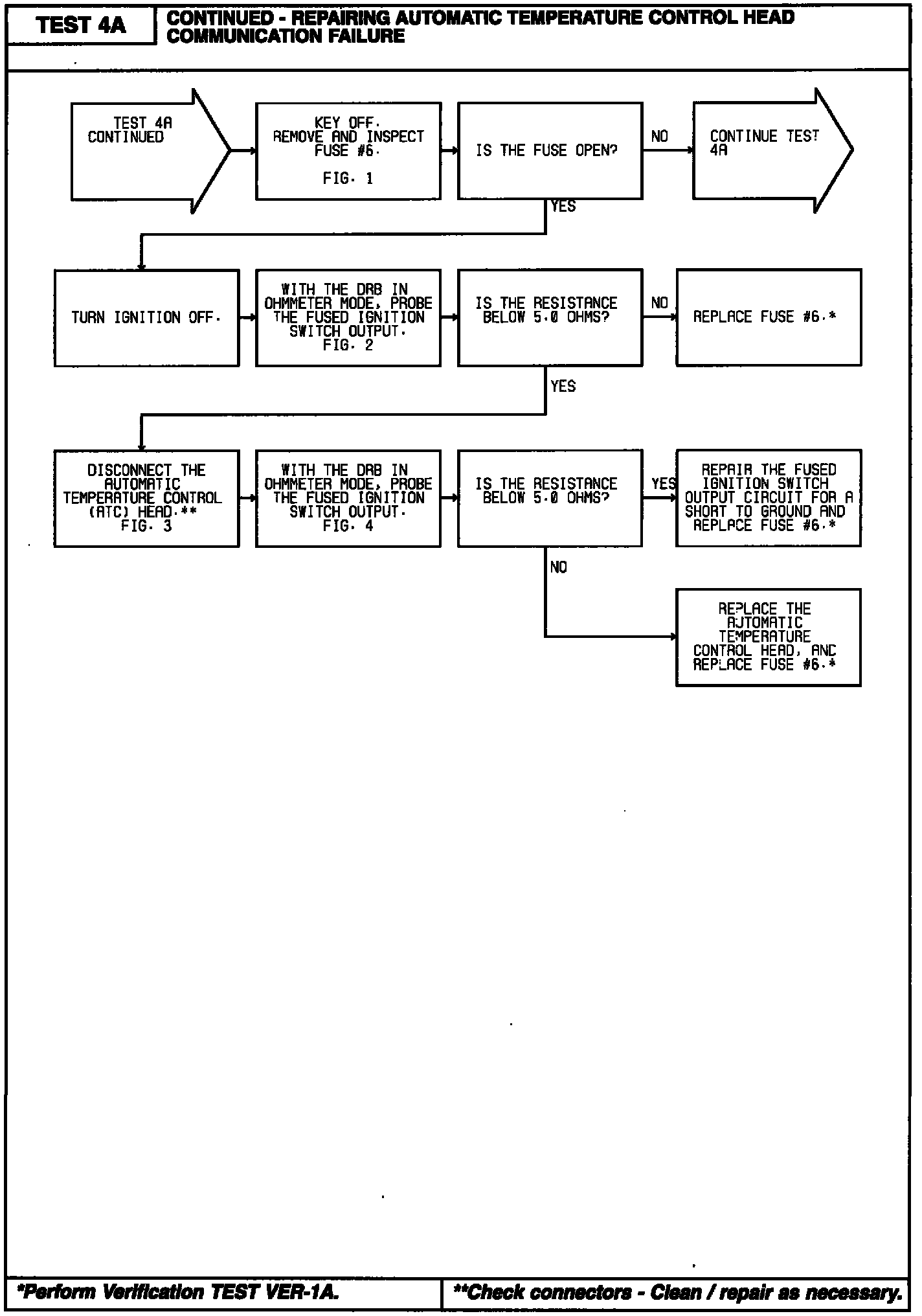

4A Part 2 Of 4:
Related Images:

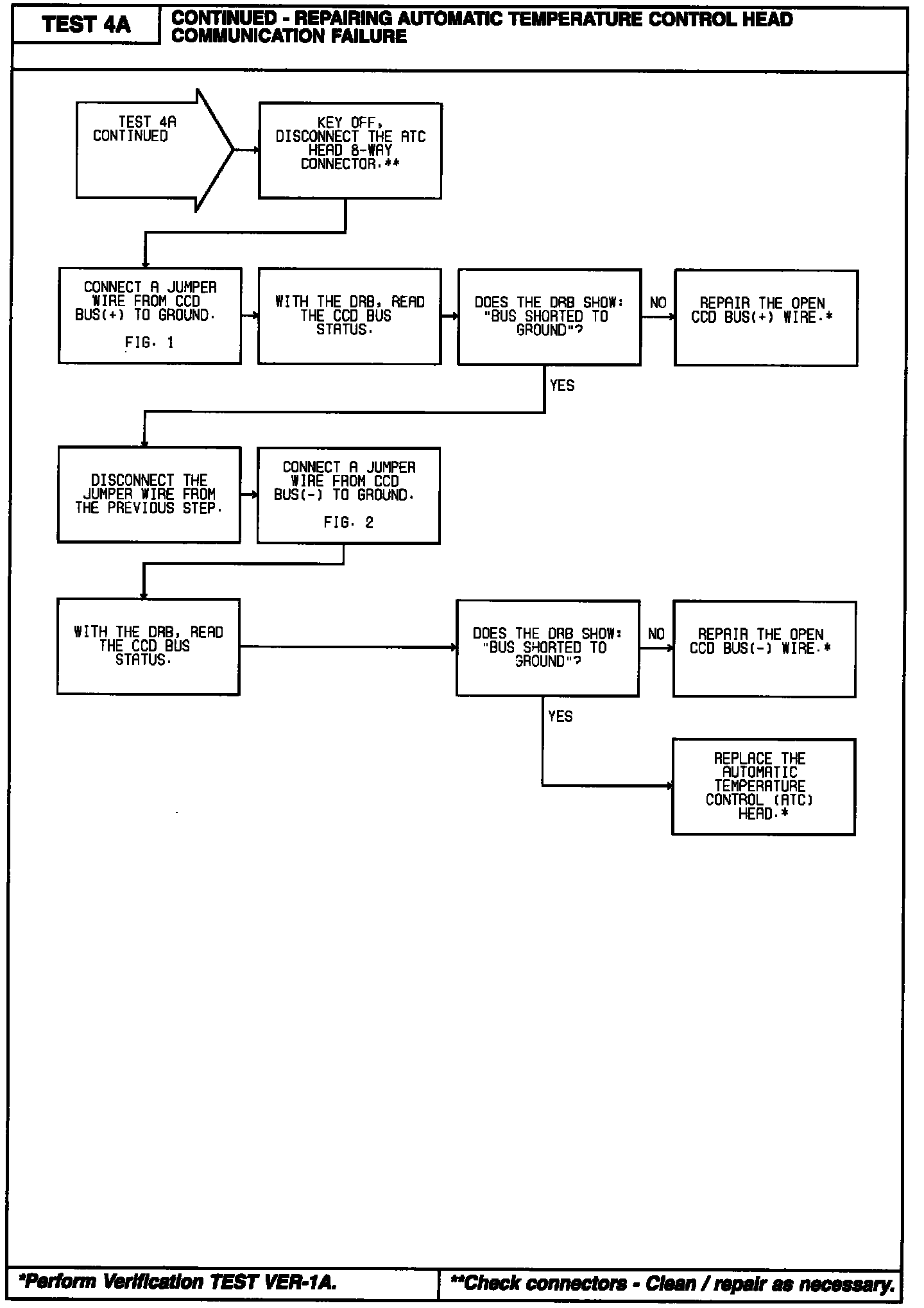

4A Part 3 Of 4:
Related Images:
4A Part 4 Of 4:
