Home >> Chrysler >> 1996 >> Concorde V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Chime System >> 29A Identifying Chime System Problems

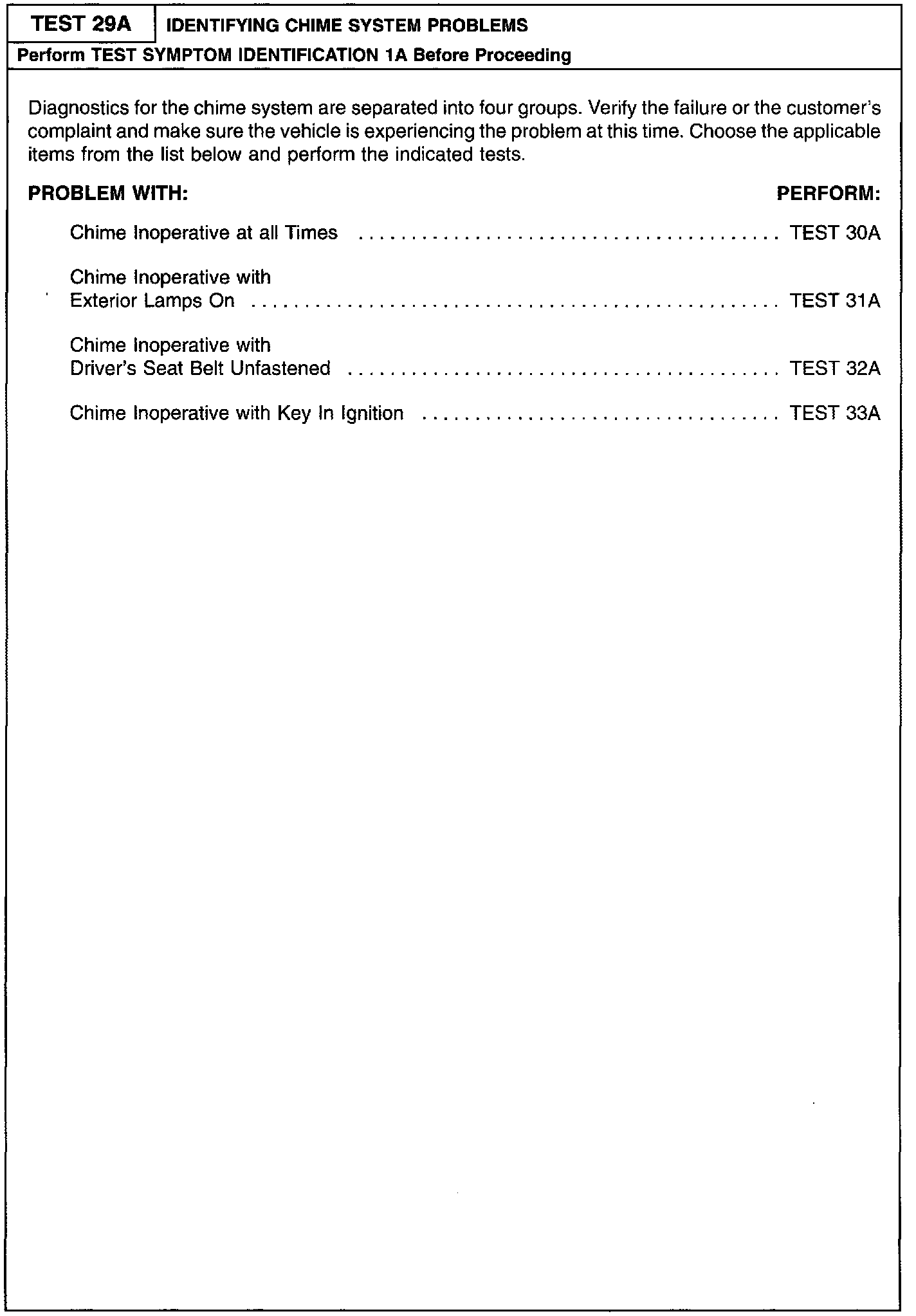

29A Identifying Chime System Problems

Diagnostic Chart:
