FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Chrysler >> 1996 >> Concorde V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Body Control Module >> Headlamp System >> 49A Headlamps Inoperative In Auto Mode

49A Headlamps Inoperative In Auto Mode

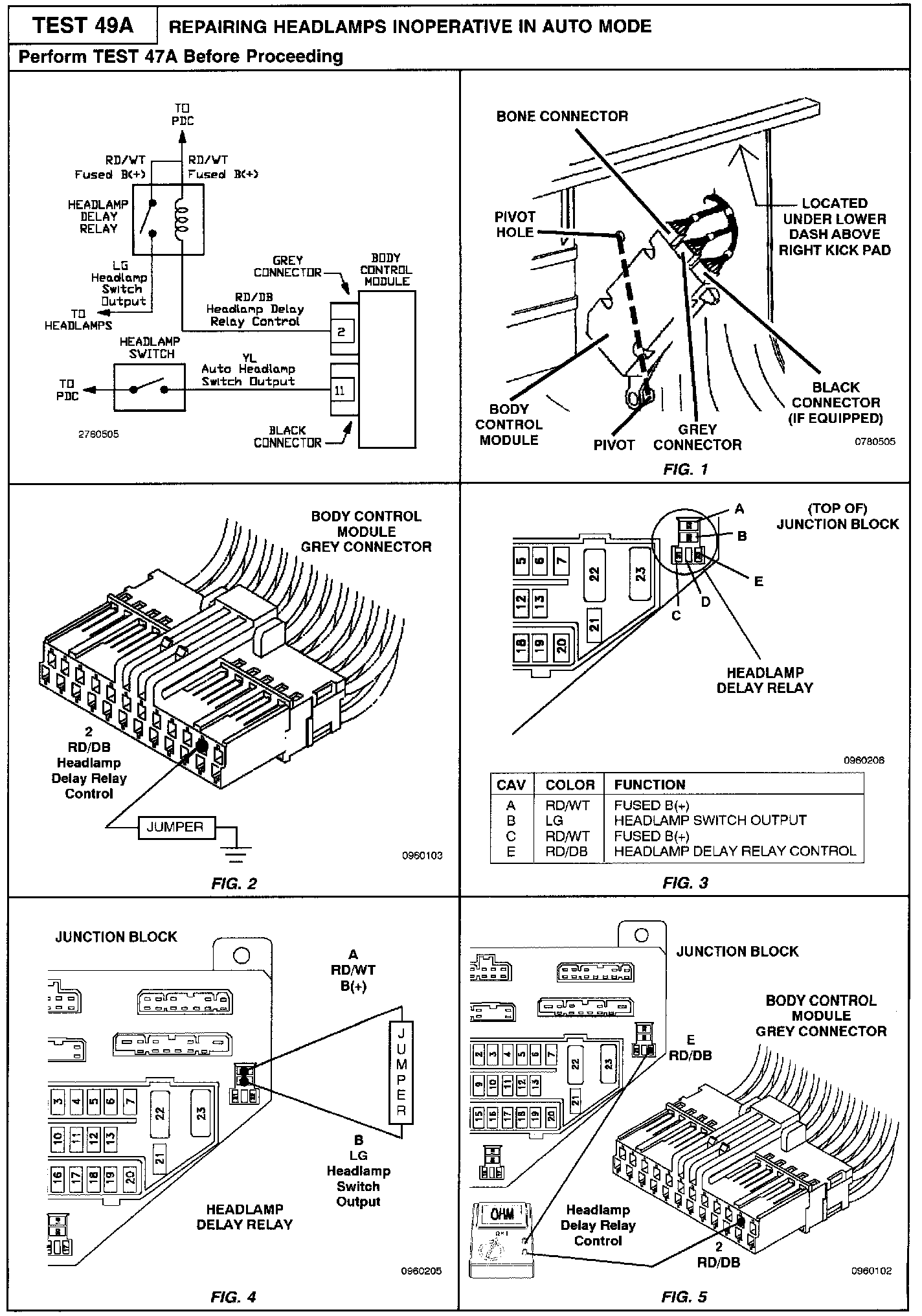

Related Images:

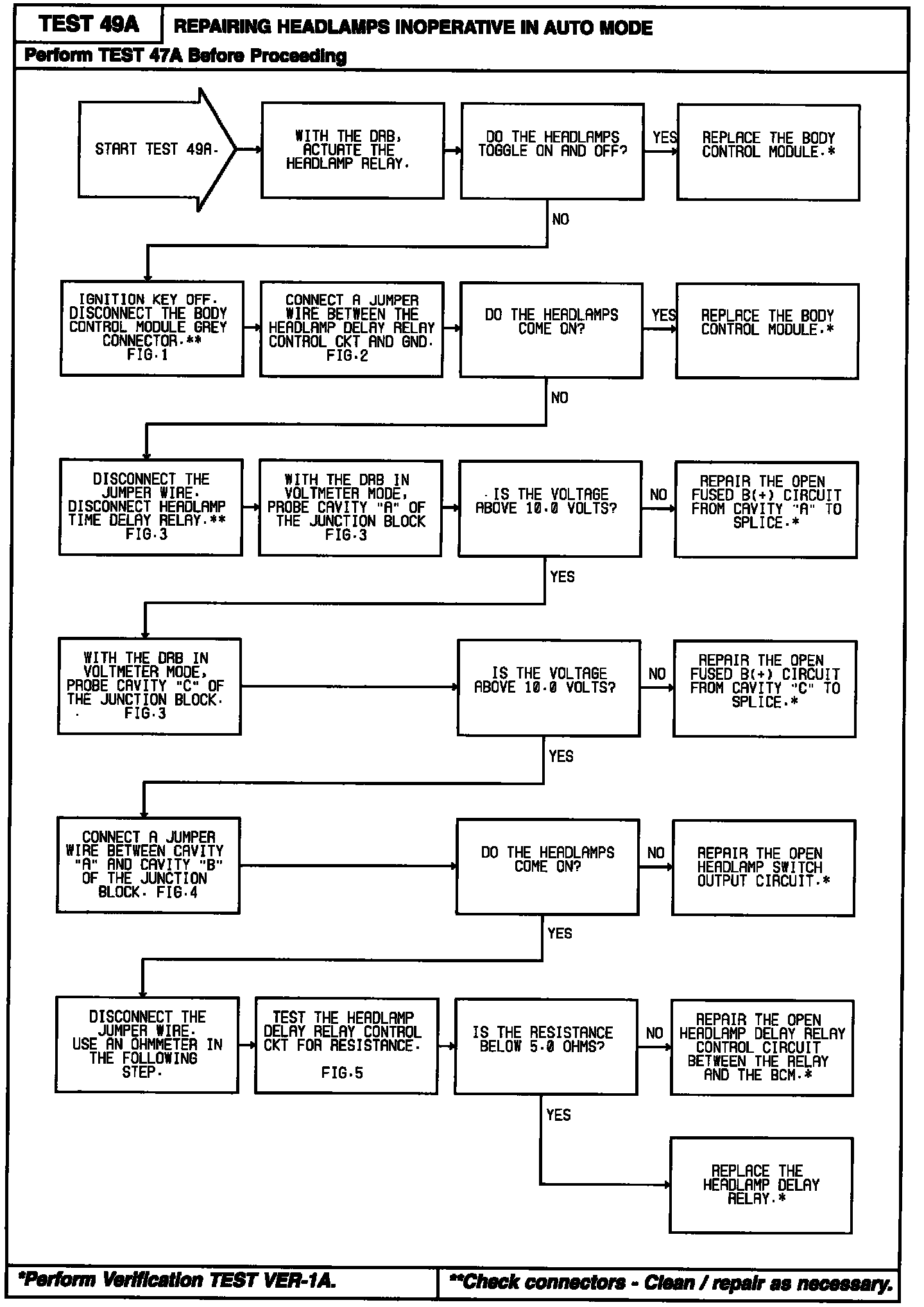

Diagnostic Chart:
