Seat Belt: Service and Repair

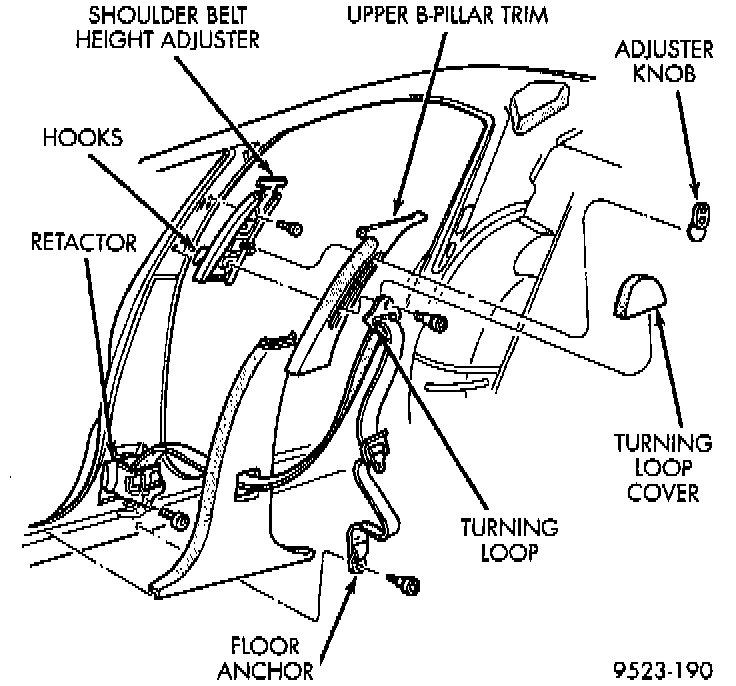

Seat Belt - Front Outboard:

SEAT BELT-FRONT OUTBOARD REMOVAL
1. Remove upper B-pillar trim panel.
2. Remove lower B-pillar trim panel.
3. Remove bolt holding seat belt retractor to B-pillar.
4. Separate retractor and belt from vehicle.
5. Reverse the preceding operation for installation.

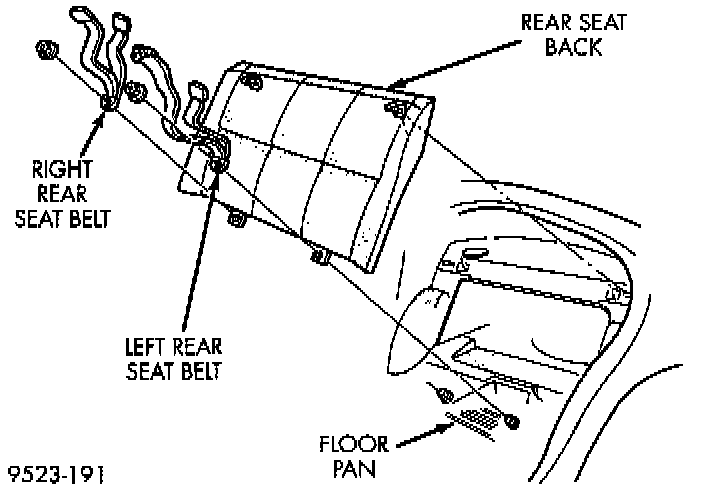

Seat Belt - Rear Inboard:

SEAT BELT-REAR INBOARD REMOVAL
1. Remove rear seat cushion.
2. Remove nut holding seat belt to floor.
3. Separate seat belt from vehicle.
4. Reverse the preceding operation for installation.

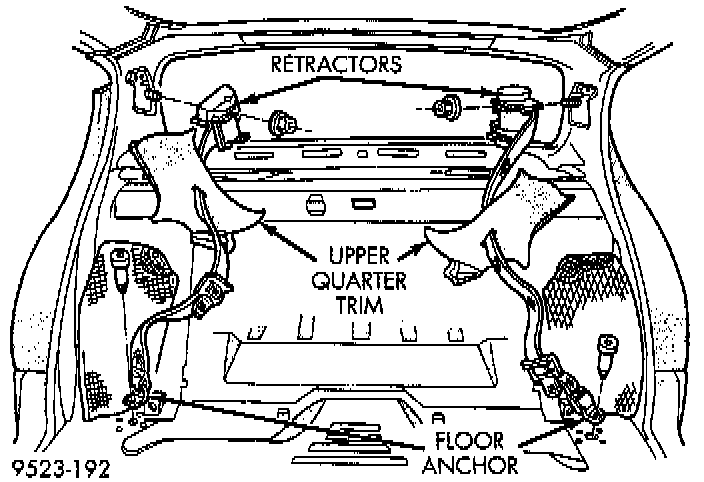

Seat Belt - Rear Outboard:

SEAT BELT-REAR OUTBOARD REMOVAL
1. Remove rear seat cushion.
2. Remove bolt holding seat belt anchor to floor pan.
3. Remove upper quarter trim panel.
4. Remove nut holding rear seat belt retractor to inner quarter panel.
5. Separate retractor and belt from vehicle.
6. Reverse the preceding operation for installation.
