Engine - Timing Belt/Tensioner Service Revisions

NUMBER: 26-07-96B

GROUP: Miscellaneous

DATE: July, 1996

REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN

Models:
1996 Breeze/Cirrus/Stratus - Publication Number 81-270-6121

DESCRIPTION OF CHANGES

Revisions to the 2.4L timing belt/ Belt tensioner procedure and specifications

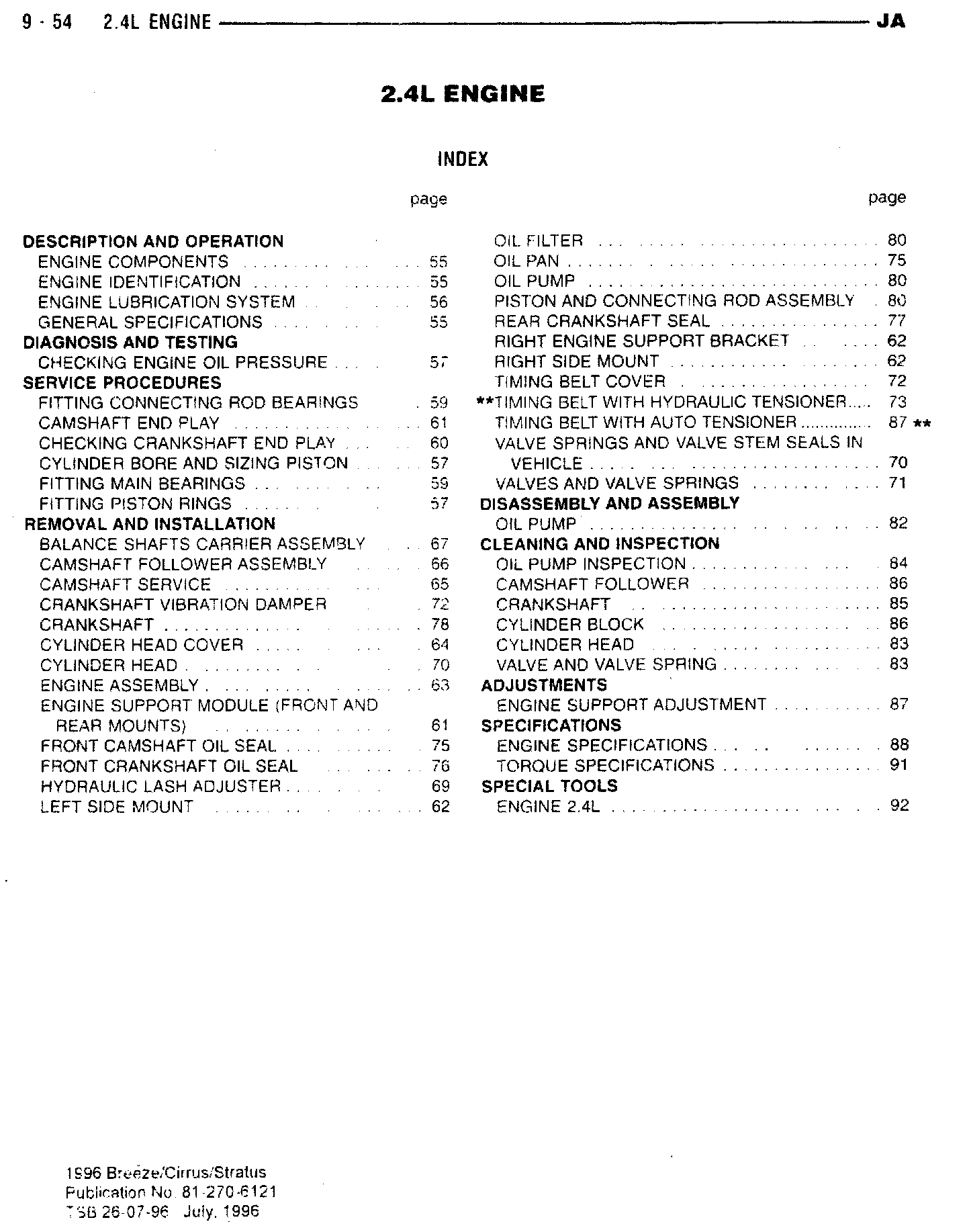

9-54

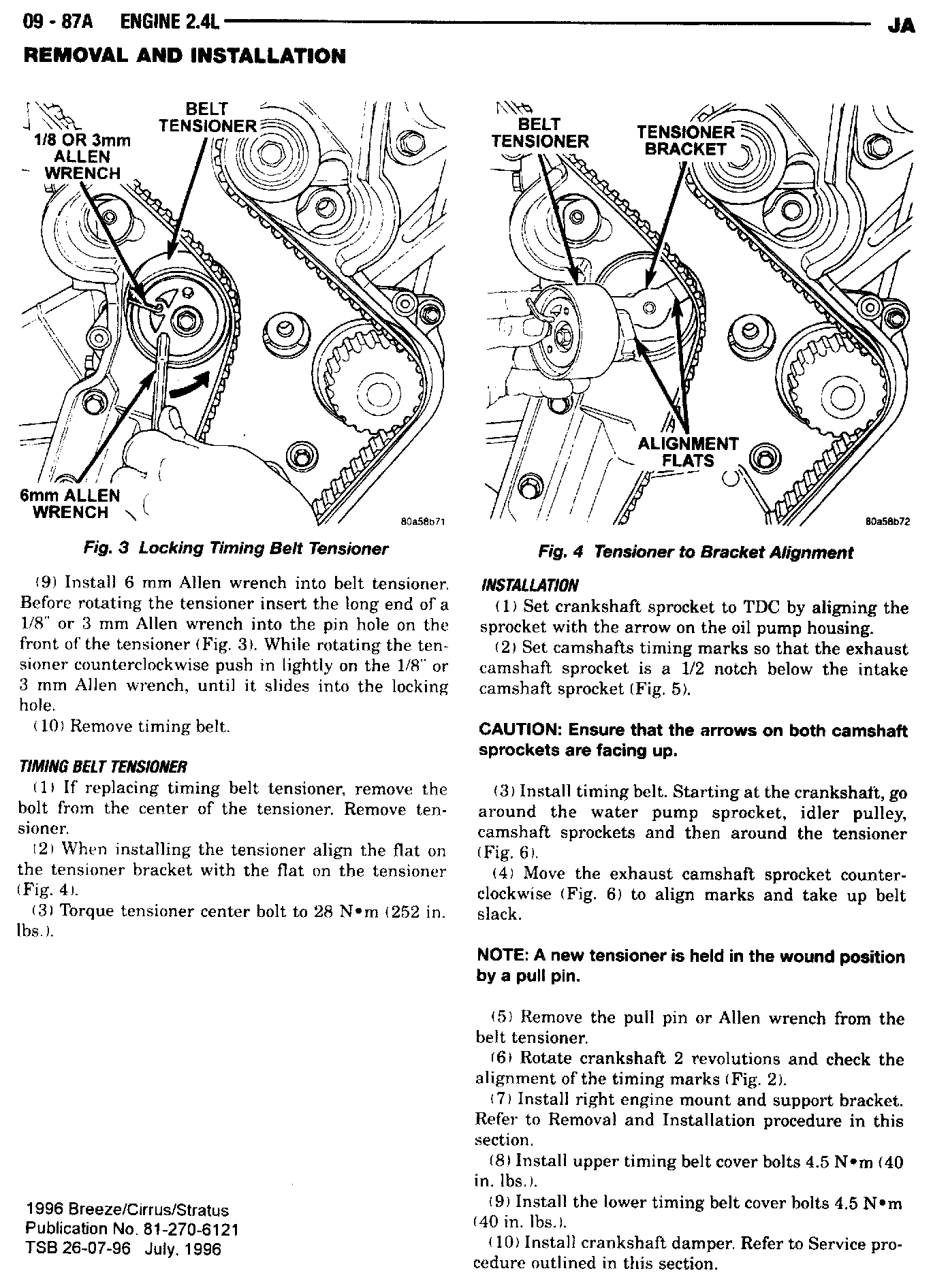

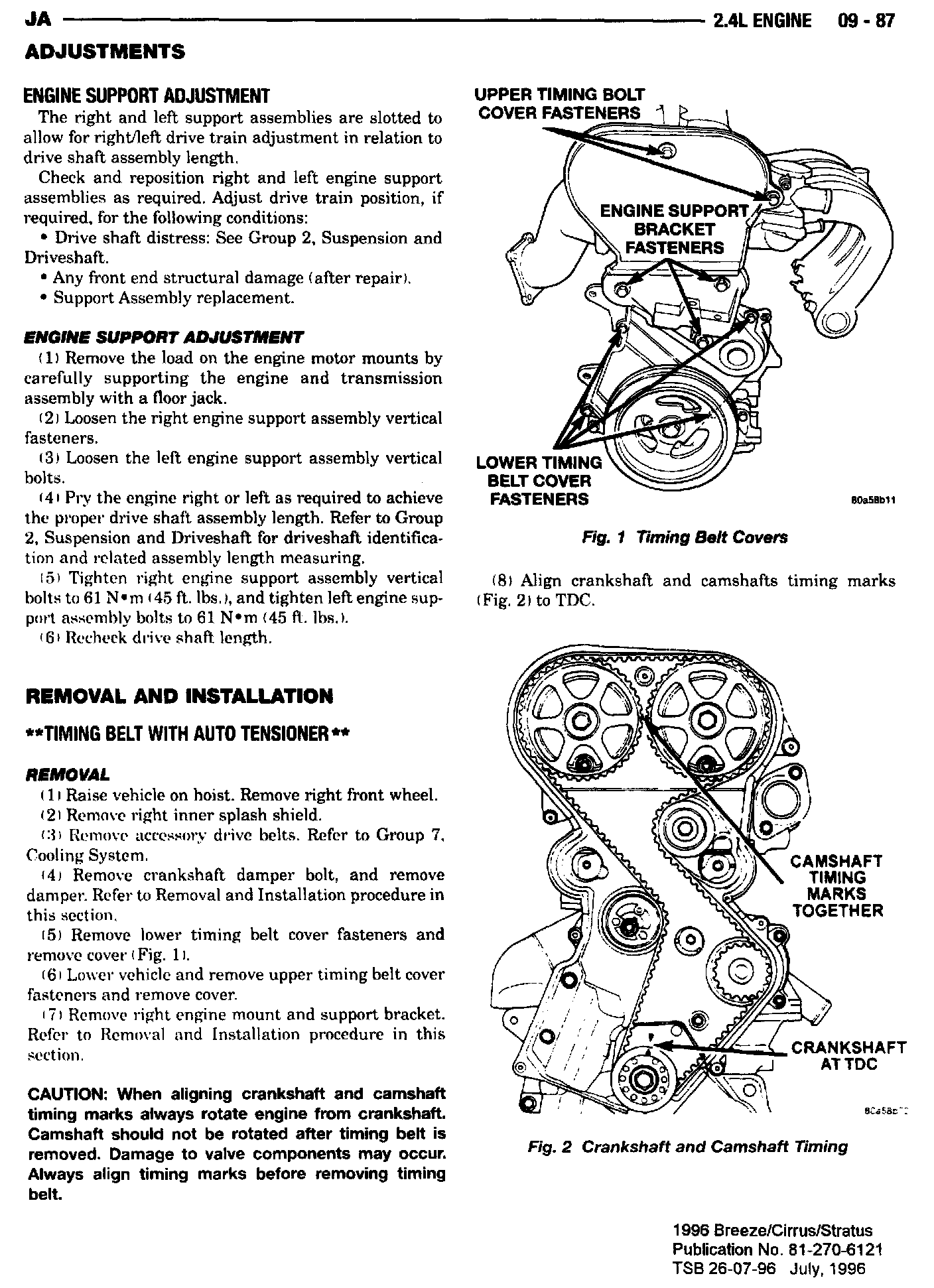

9-87

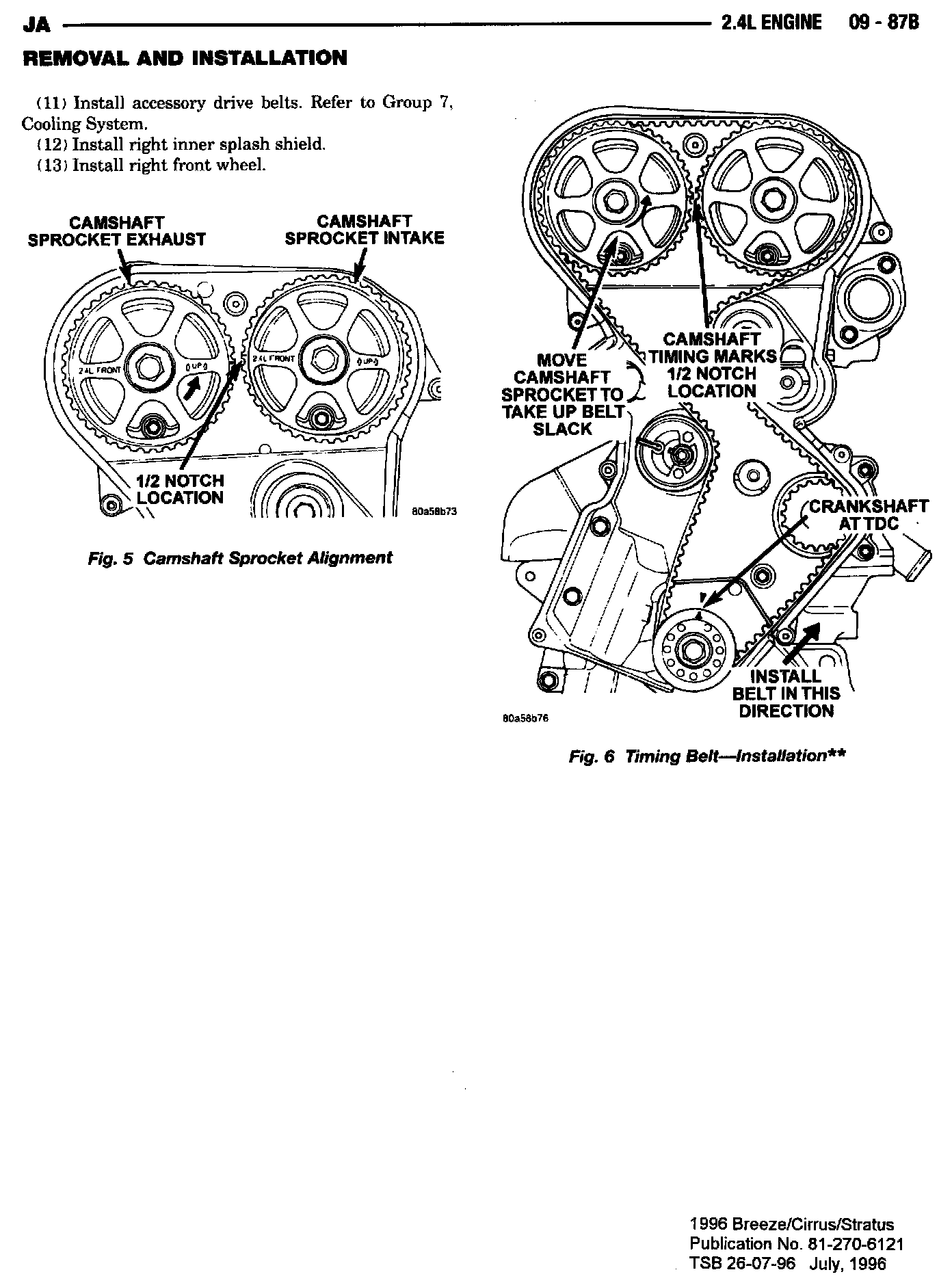

9-87A





9-87B
