Valve Guide: Service and Repair

1.Remove carbon and varnish deposits from inside of valve guides with a reliable guide cleaner.

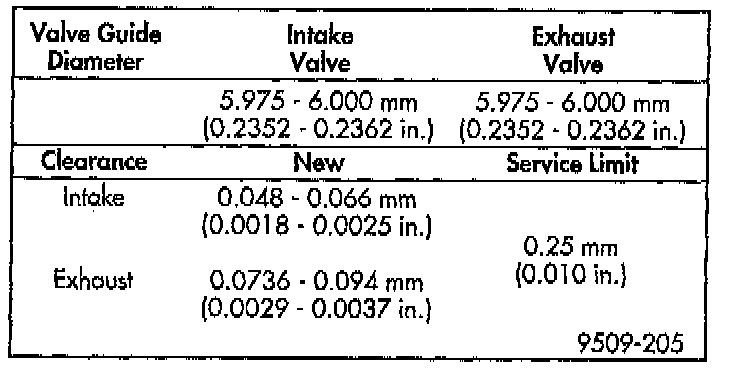

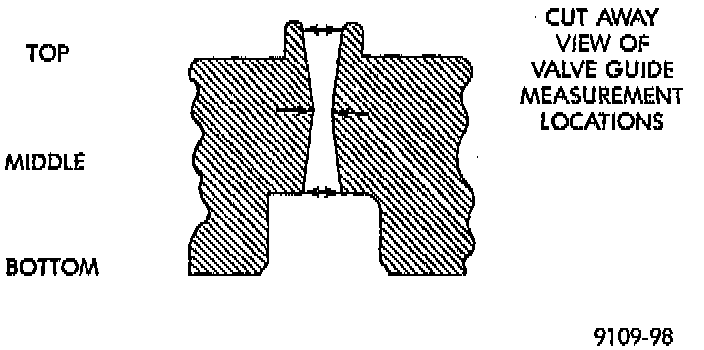

2.Using a small hole gauge and a micrometer, measure valve guides in 3 places top, middle and bottom. Replace guides if they are not within specification.

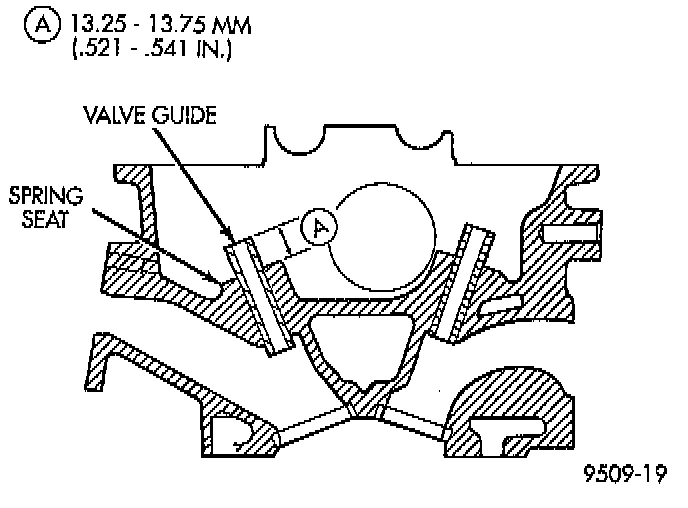

3.Check valve guide height.
