Removal and Installation

NOTE: Crankshaft can not be removed when engine is in vehicle.

REMOVAL
1. Remove oil filter and oil pan.
2. Remove Timing Belt Cover, Timing Belt and Oil Pump.
3. Remove Balance Shafts Assembly.
4. Remove all main bearing cap bedplate bolts from the engine block.
5. Using a mallet gently tap the bedplate loose from the engine block dowel pins.

CAUTION: Do not pry up on one side of the bedplate. Damage may occur to cylinder block to bedplate alignment and thrust bearing.

6. Bedplate should be removed evenly from the cylinder block dowel pins to prevent damage to the dowel pins and thrust bearing.
7. Lift out crankshaft from cylinder block. Do not damage the main bearings or journals when removing the crankshaft.

INSTALLATION

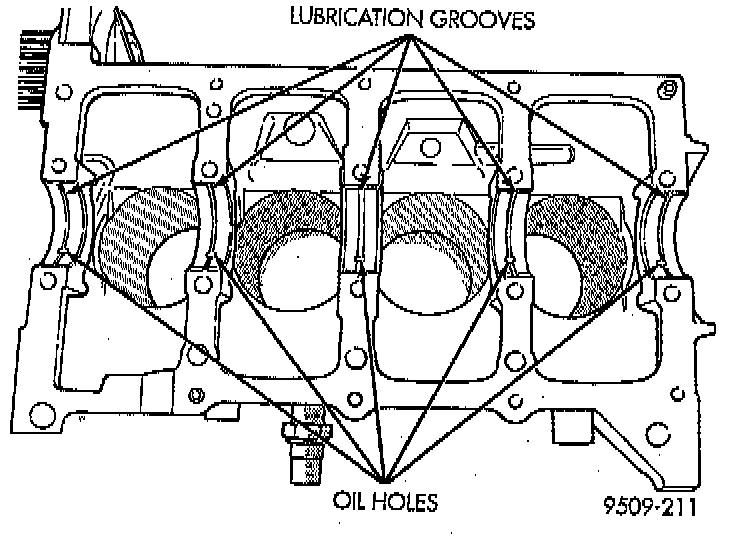

1. Install the main bearing shells with the lubrication groove in the cylinder block.
2. Make certain oil holes in block line up with oil hole in bearings and bearing tabs seat in the block tab slots.

CAUTION: Do not get oil on the bedplate mating surface. It will may effect the sealer ability to seal the bedplate to cylinder block.

3. Oil the bearings and journals. Install crankshaft.

CAUTION: Use only the specified anaerobic sealer on the bedplate or damage may occur to the engine.

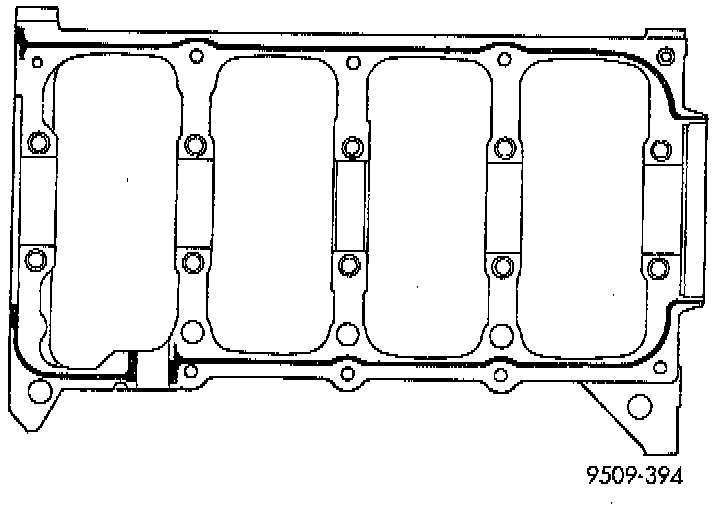

4. Apply 1.5 to 2.0 mm (0.059 to 0.078 inch) bead of Mopar Torque Cure Gasket Maker, or equivalent to cylinder block as shown.
5. Install lower main bearings into main bearing cap/bedplate. Make certain the bearing tabs art seated into the bedplate slots. Install the main bearing/bedplate into engine block.
6. Before installing the bolts the threads should be oiled with clean engine oil, wipe off any excess oil.

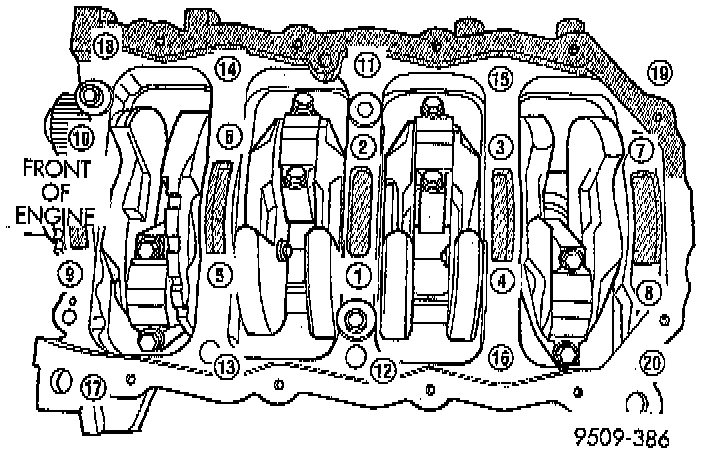

7. Install main bearing bedplate to engine block bolts 11, 17 and 20 finger tight. Tighten this bolts down together until the bedplate contacts the cylinder block. Then torque these bolts to 28 Nm (20 ft. lbs.).





8. Install main bearing bedplate to engine block bolts (1 thru 10) and torque each bolt to 41 Nm (30 ft. lbs.) in sequence, then in sequence tighten bolts an additional 1/4 turn.
9. Install main bearing bedplate to engine block bolts (11 thru 20), and torque each bolt to 28 Nm (20 ft. lbs.) in sequence shown.
10. After the main bearing bedplate is installed, check the crankshaft turning torque. The turning torque should not exceed 5.6 Nm (50 inch lbs.).
