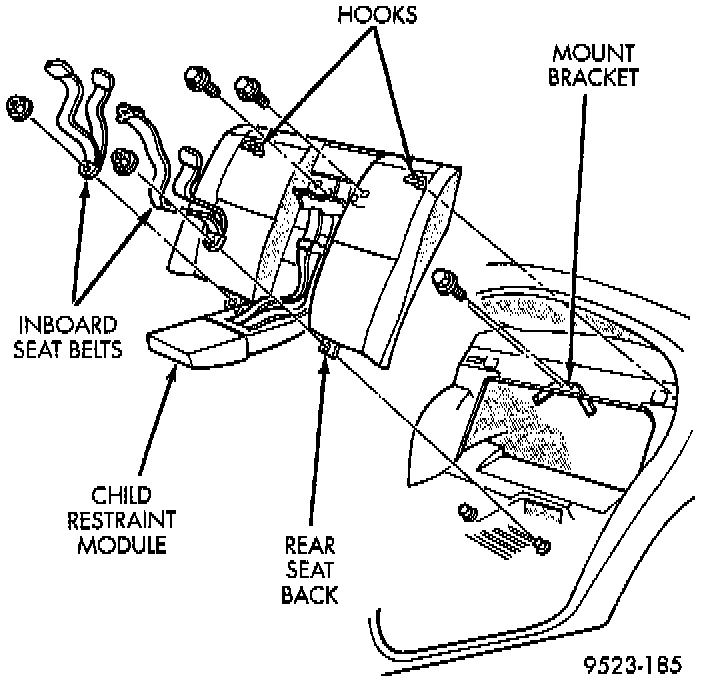

Child Restraint Rear Seat Back

Child Restraint Rear Seat:

REMOVAL
1. Remove rear seat cushion.
2. Remove bolts holding seat back and seat belts to floor pan.
3. Open child restraint seat and peel down top of liner to expose bolt access holes.
4. Remove bolts holding seat back to parcel shelf mount bracket.
5. Lift seat back upward to disengage hooks holding seat back to trunk closure panel.
6. Separate seat back from vehicle.

INSTALLATION
1. Position seat back in vehicle.
2. Push seat back downward to engage hooks holding seat back to trunk closure panel.
3. Install bolts holding seat back to parcel shelf mount bracket.
4. Install bolts holding seat back and seat belts to floor pan.
5. Install rear seat cushion.
