Exploded Views

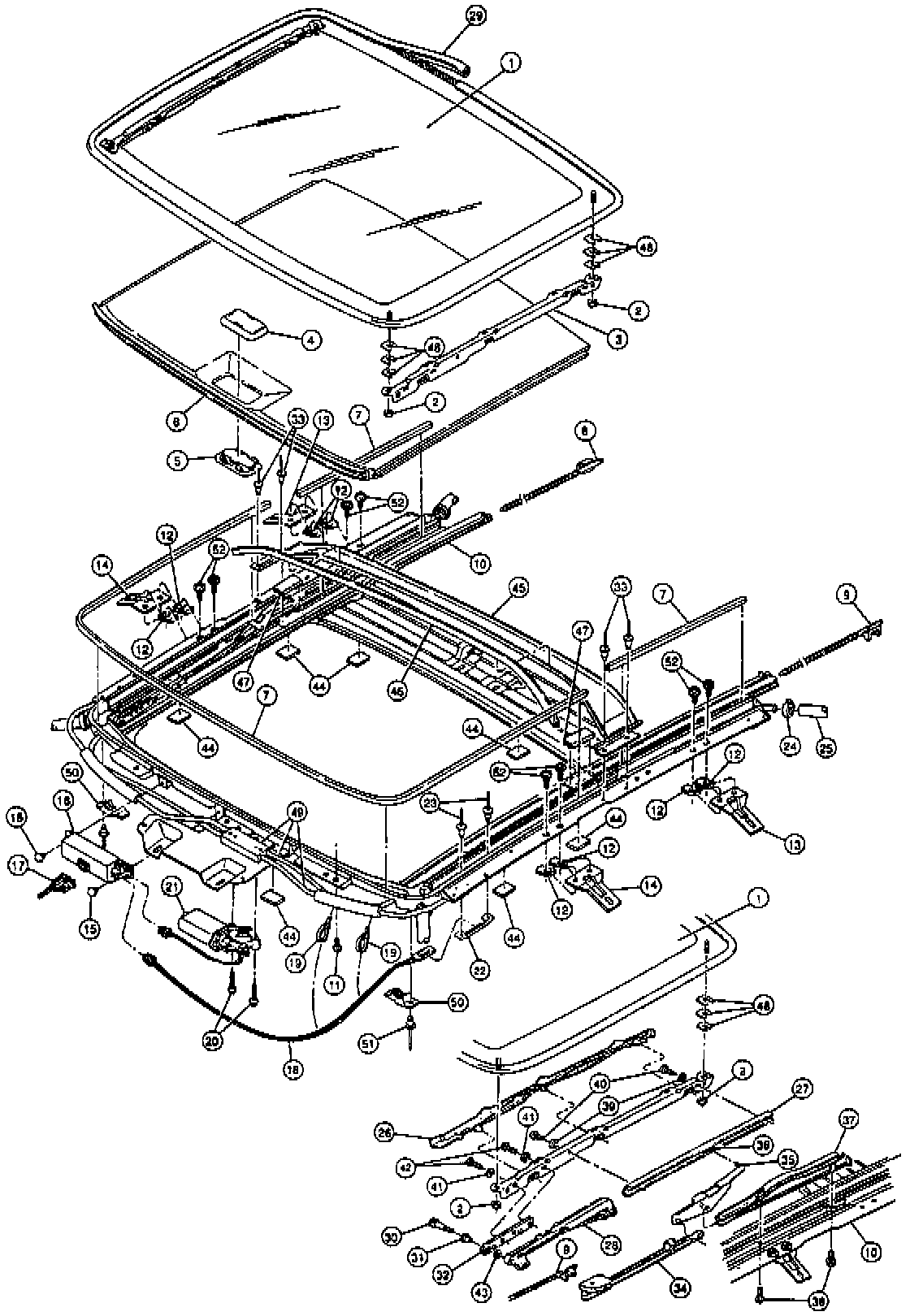

Sunroof Components:

SUNROOF COMPONENT LEGEND AND TORQUE

No. Description Nm(in. lb.) Torque

1 Panel Assembly-Glass Complete
2 Nut-M5 x 0.8 4.5(40)
3 Support-Glass Panel
4 Bezel-Sunscreen
5 Fingerwell-Sunscreen
6 Sunshade Assembly
7 Tape-Closed Cell
8 Cable Assembly-Drive(RH)
9 Cable Assembly-Drive(LH)
10 Sunroof Module
11 Screw-M6 x 1.0 x 16 (6 Req'd) 5.5(50)
12 Nut-M6 x 1.00 U-Type
13 Bracket-Rear Support
14 Bracket-Front Support
15 Retainer-M6 x 15, Controller
16 Controller-Sunroof Open/Vent
17 Body Harness to Sunroof
18 Sunroof Position Sensor
19 Tie Strap
20 Screw-M5 x 0.8 x 44 1.7(15)
21 Drive Motor Assembly
22 Retainer-Sunroof Position Sensor
23 Rivet-1/8 x 0.125
24 Clamp
25 Drain Hose
26 Cover-Mechanism Reveal
27 Track Assembly-Glass Panel
28 Guide Assembly-Panel
29 Seal-Glass Panel
30 Screw-M5 x 0.8 x 16.0 1.7(15)
31 Bushing-Pivot
32 Bracket-Front Guide Attach
33 Rivet-5/32 x 0.125
34 Link Assembly-Actuating
35 Arm Assembly-Glass Lift
36 Guide-Glass
37 Block-Cam Roof Sliding Panel
38 Screw-8-18 x 0.375 1.7(15)
39 Washer-M 4.3 x 7 x 0.5
40 Screw-M4 x 0.7 x 6 1.7(15)
41 Washer-M5.3 x 9 x 0.6
42 Screw-M5 x 0.8 x 8 3.4(30)
43 Washer-Plastic
44 Dual Lock Fastener
45 Water Trough
46 Seal-Water Trough
47 Panel Down Stops
48 Shims
49 Drive Assembly
50 Drive Tube Bracket
51 Rivet-5/32 x 0.125
52 Screw-M6 x 1 x 12 5.5(50)
