Outside Rear View Mirror

SIDE VIEW MIRROR BEZEL REMOVAL
1. Remove door trim panel.
2. Remove screws bolding side view mirror bezel to door frame.

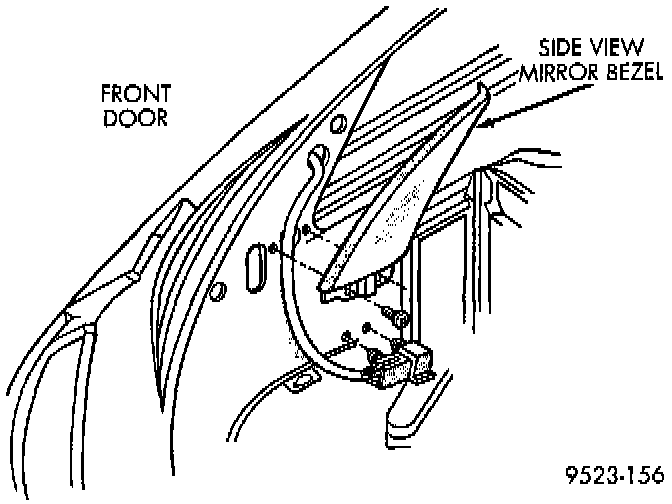

Side View Mirror Bezel:

3. Separate side view mirror bezel from vehicle.
4. If equipped, loosen set screw holding cable adjuster to side view mirror bezel.
5. Separate cable adjuster from side view mirror bezel.
6. Reverse the preceding operation for installation.

SIDE VIEW MIRROR REMOVAL
1. Remove side view mirror bezel.
2. Disengage power mirror wire connector from door harness, if so equipped.
3. Disengage push-in fastener holding power mirror wire lead to inner door panel.

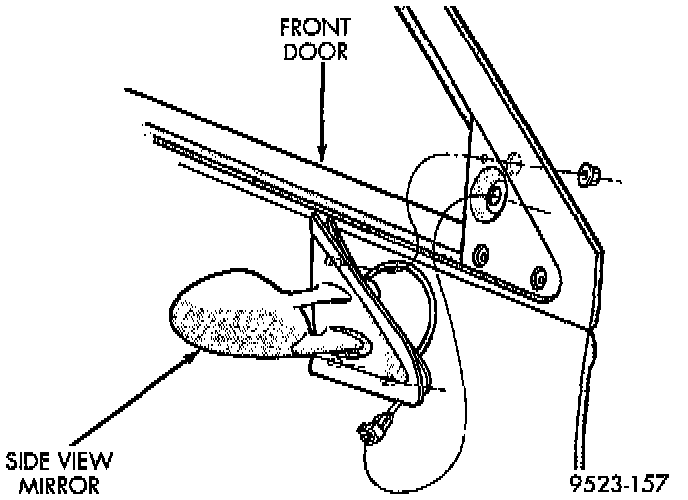

Side View Mirror:

4. Remove nuts holding side view mirror to door frame.
5. Separate side view mirror from door.
6. Reverse the preceding operation for installation.
