Door Lock Cylinder: Service and Repair

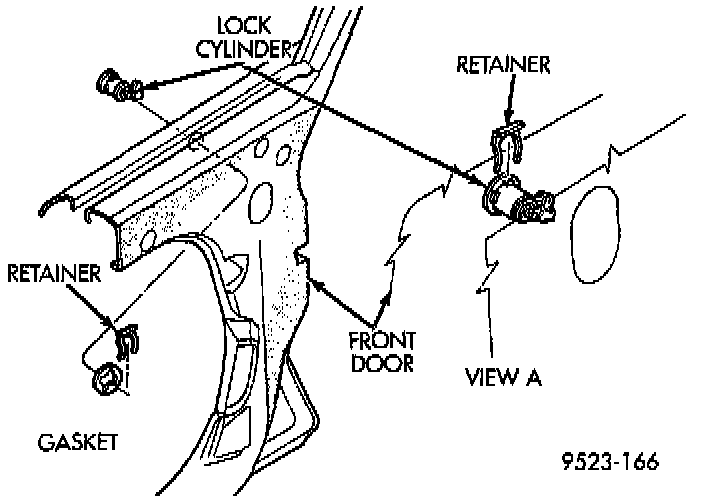

Front Door Lock Cylinder:

1. Remove front door outside handle.
2. Disengage clip holding lock linkage to back of lock cylinder.
3. Separate linkage from lock cylinder.
4. Remove retainer holding lock cylinder to outer door panel.
5. Separate lock cylinder from vehicle.
6. Reverse the preceding operation for installation.
