Sun Visor: Service and Repair

Sun Visor:

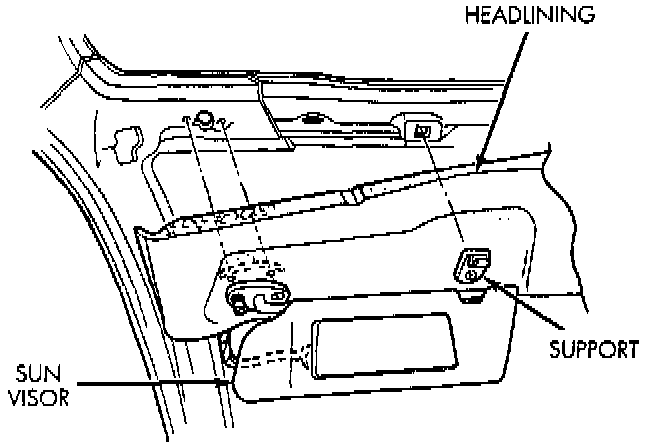

SUN VISOR REMOVAL
1. Disengage sun visor from center support.
2. Remove screws holding sun visor to roof header.
3. Separate sun visor from header.
4. if equipped, disengage wire connector from body harness.
5. Separate sun visor from vehicle.
6. Reverse the preceding operation for installation.

SUN VISOR SUPPORT REMOVAL
1. Disengage sun visor from center support.
2. Remove screw holding support to roof header,
3. Separate support from vehicle.
4. Reverse the preceding operation for installation.
