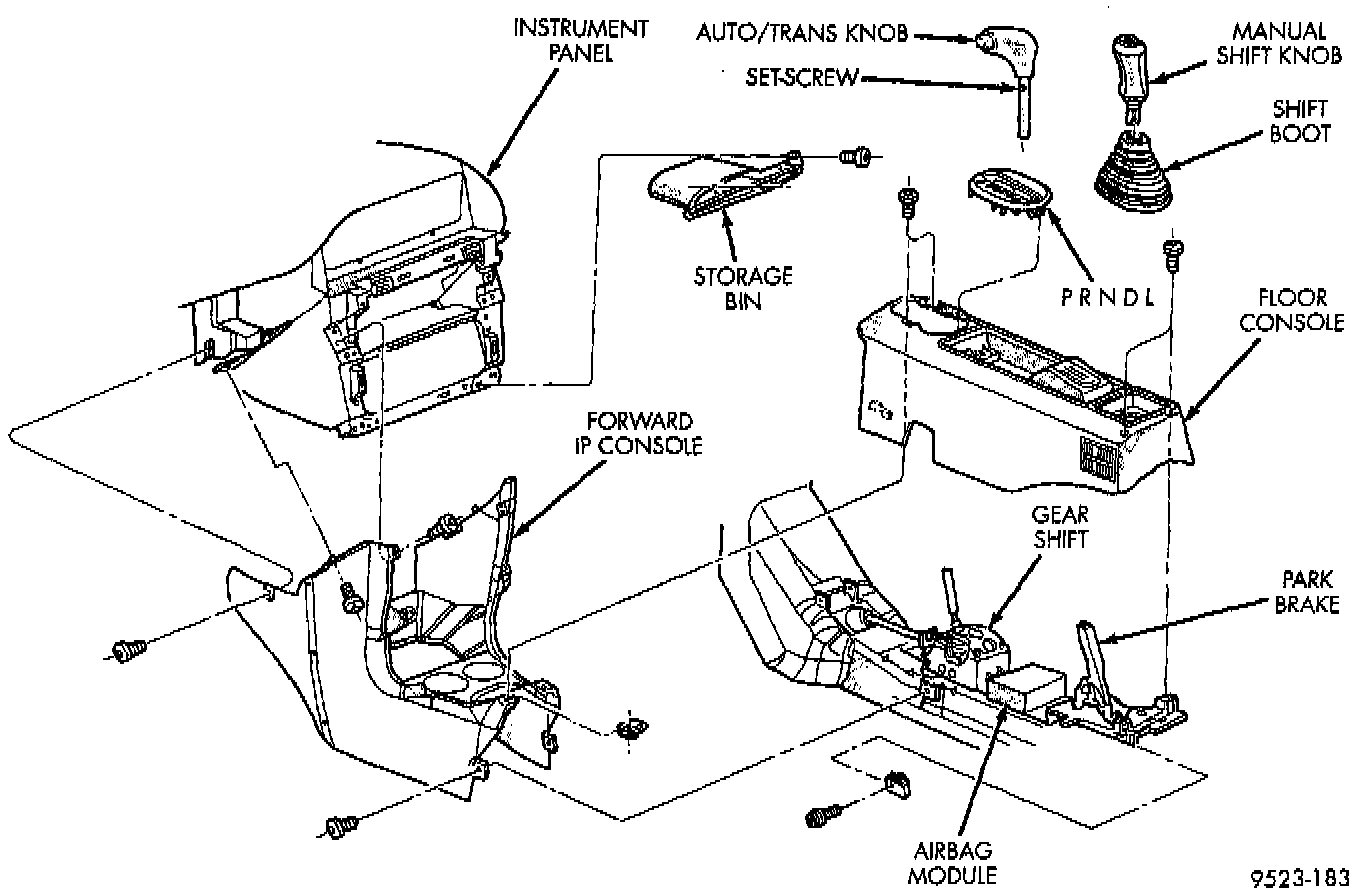

Forward Instrument Panel Console

1. Remove floor console.
2. Remove instrument cluster bezel.

Floor Console:

3. Remove screws holding storage bin forward IP console.
4. Separate storage bin from console.
5. Remove screws holding forward IP console to gear selector mount bracket.
6. Remove screws holding IP console to instrument panel at each side of HEVAC control.
7. Remove screws holding IP console to instrument panel at each side of storage bin area.
8. Remove screws holding IP console to instrument panel support braces.
9. Separate forward IP console from vehicle.
10. Reverse the preceding operation.
