Carpet: Service and Repair

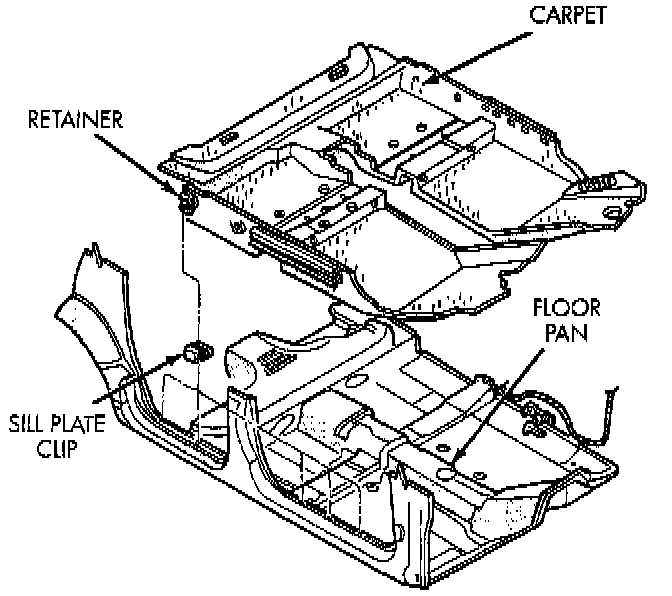

Floor Carpet:

1. Remove door opening sill plates.
2. Remove rear seat cushion.
3. Remove front seats.
4. Remove bolts holding front seat belts to floor.
5. Remove lower B-pillar trim panels as necessary to clear carpet.
6. Remove cowl trim panels.
7. Remove floor console.
8. Remove forward instrument panel console.
9. Disengage retainer channels holding carpet to door sills.
10. Pull carpet from behind brake pedal, accelerator pedal, and HEVAC.
11. Fold carpet to center of vehicle.
12. Remove carpet from vehicle through passenger door opening.
13. Reverse the preceding operation for installation.
