Rear Door Weatherstrip: Service and Repair

Door Opening Weatherstrips:

DOOR OPENING WEATHERSTRIPS REMOVAL
1. Open door.
2. Remove door sill scuff plate.
3. Pull weatherstrip from pinch flange around door opening.

INSTALLATION
Position the splice in the door opening weatherstrip in the center of the bottom of the opening and reverse the preceding operation.

Drip Rail Weatherstrip:

DRIP RAIL WEATHERSTRIP REMOVAL
1. Open front and rear doors.
2. Starting at the bottom of the A-pillar, pull the drip rail weatherstrip from the windshield side molding.
3. Pull the drip rail weatherstrip from the roof rail pinch flange above door openings.
4. Separate drip rail weatherstrip from vehicle.
5. Reverse the preceding operation for installation.

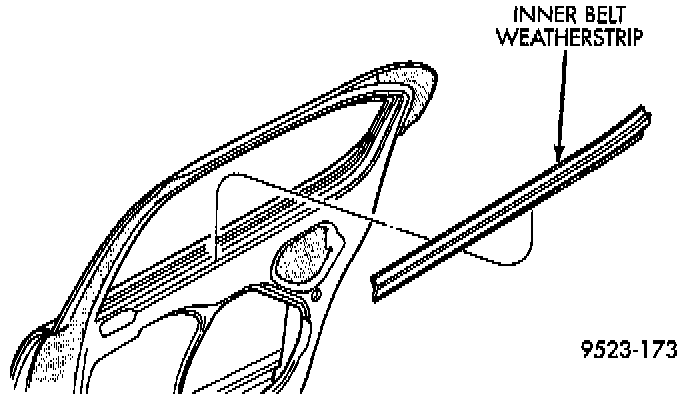

Rear Door Inner Belt Weatherstrip:

REAR DOOR INNER BELT WEATHERSTRIP REMOVAL
1. Remove rear door trim panel.
2. Pull upward at front end of inner belt weatherstrip.
3. Separate inner belt weatherstrip from vehicle.
4. Reverse the preceding operation for installation.

Secondary Rear Door Sill Weatherstrip:

SECONDARY REAR SILL WEATHERSTRIP REMOVAL
1. Open rear door.
2. Using fork tool (C-4828), disengage push-in fasteners holding secondary sill weatherstrip to bottom of door.
3. Separate secondary rear sill weatherstrip from vehicle.
4. Reverse the preceding operation for installation.

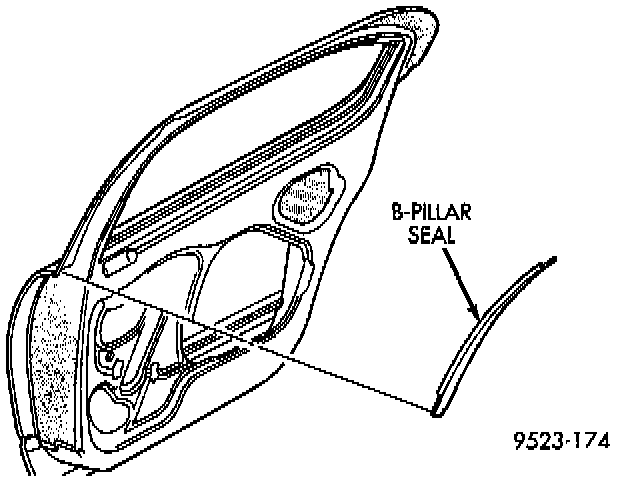

Rear Door B-Pillar Seal:

REAR DOOR B-PILLAR SEAL REMOVAL
1. Using a suitable heat gun, warm seal to approximately 100°F to ease adhesive separation.
2. Peel B-pillar seal from upper door frame, top to bottom.
3. Clean adhesive residue from door frame.

INSTALLATION
1. If original seal is reused, clean adhesive residue from back of seal.
2. Apply body side molding tape to back of seal.
3. Peel protective paper from back of tape.
4. Place cutout in seal around screw head at bottom of seal location.
5. Align seal to edge of door frame.
6. Press adhesive onto door frame.

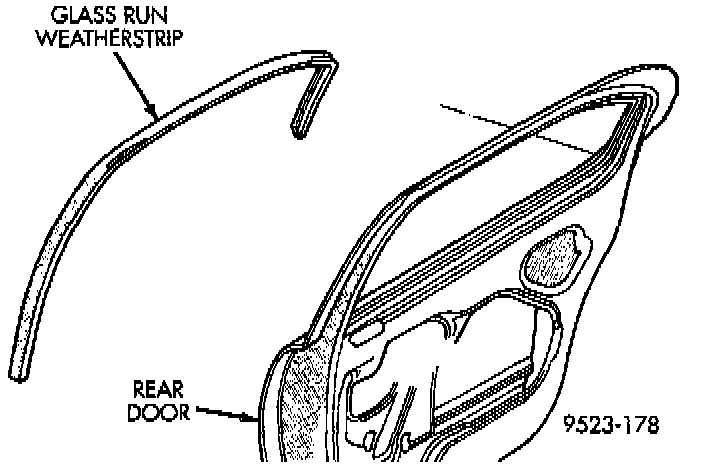

Door Glass Run Weatherstrip:

DOOR GLASS RUN WEATHERSTRIP REMOVAL
1. Remove door trim panel.
2. Remove door glass.
3. Pull glass run weatherstrip from door glass opening frame.
4. Reverse the preceding operation for installation.
