Rear Door Panel: Service and Repair

REMOVAL
1. Open rear door and open glass.

Window Crank:

2. Remove window crank.
3. Remove screw cap from bottom of arm rest pull cup.

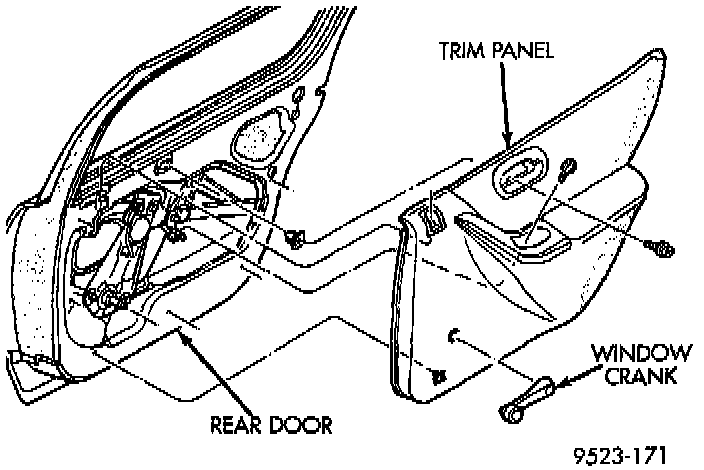

Rear Door Trim Panel:

4. Remove screw from bottom of arm rest pull cup.
5. Remove screw cap from behind door latch handle.
6. Remove screw holding door latch handle to door.
7. Disengage clips holding perimeter of trim panel to rear door.
8. Disengage trim panel from inner belt weatherstrip at top of door.
9. Separate top of trim panel from door.

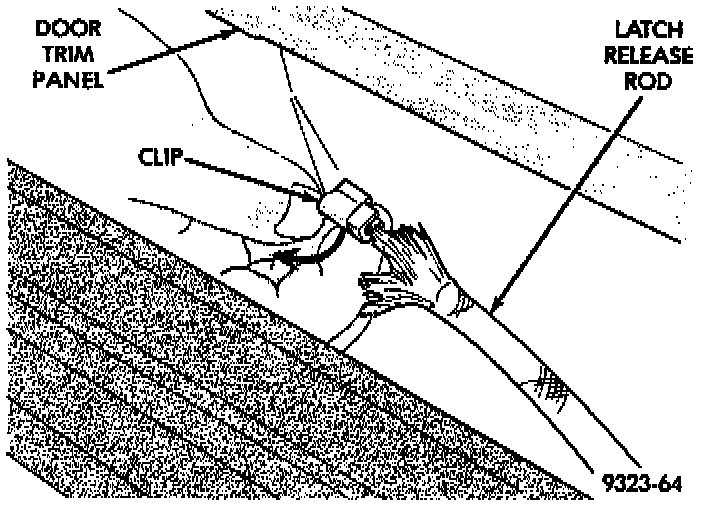

Linkage Clip:

10. Disengage clip holding linkage to latch handle.
11. Separate linkage from latch handle.
12. Lift trim up and off lock button.
13. Separate rear door trim panel from vehicle.

INSTALLATION
1. Position rear door trim panel on vehicle.
2. Connect linkage to latch handle.
3. Engage clip holding linkage to latch handle.
4. Engage trim panel from inner belt weatherstrip at top of door.
5. Engage clips holding perimeter of trim panel to rear door.
6. Install screw holding door latch handle to door.
7. Install screw cap from behind door latch handle.
8. Install screw from bottom of arm rest pull cup.
9. Install screw cap from bottom of arm rest pull cup.
10. Install window crank.
