Starter Motor: Service and Repair

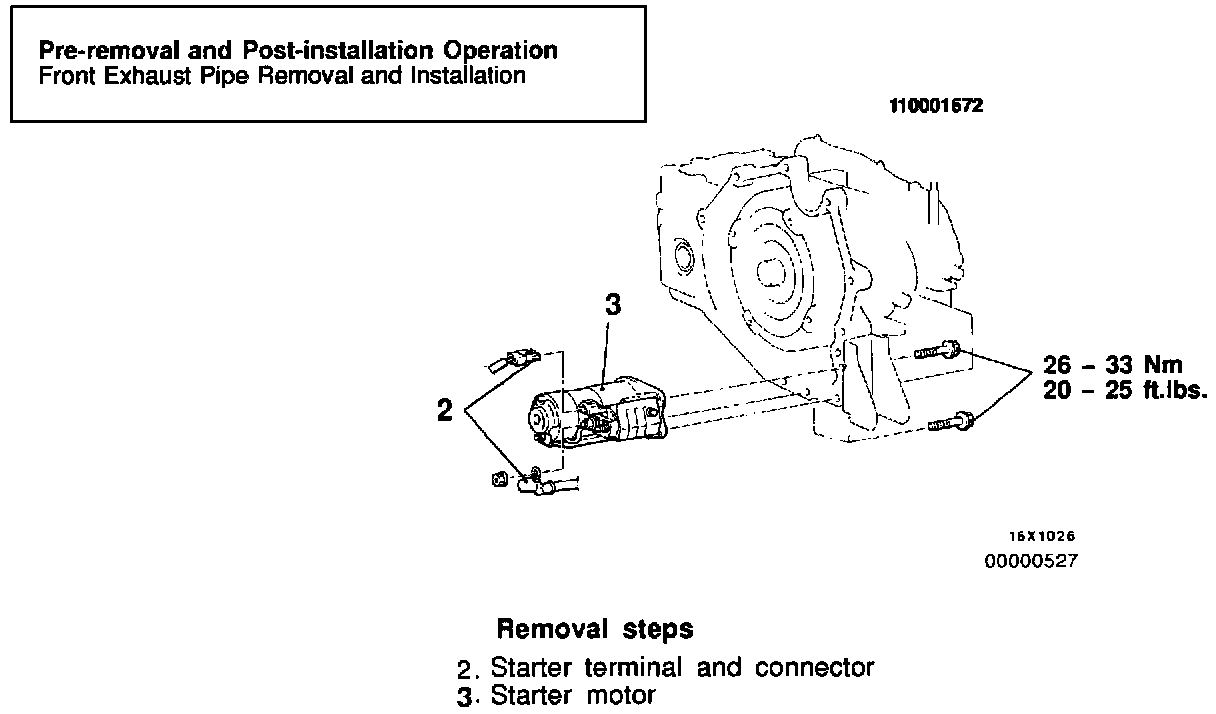

Starter Motor - Removal And Installation:

Pre-Removal and Post-Installation Operation
- Front exhaust pipe

REMOVE
1. Pulsed secondary air injection valve .
2. Starter terminal and connector.
3. Starter motor.

INSTALL
1. Starter motor.
2. Starter terminal and connector.
3. Pulsed secondary air injection valve
