Door Lock Cylinder: Service and Repair

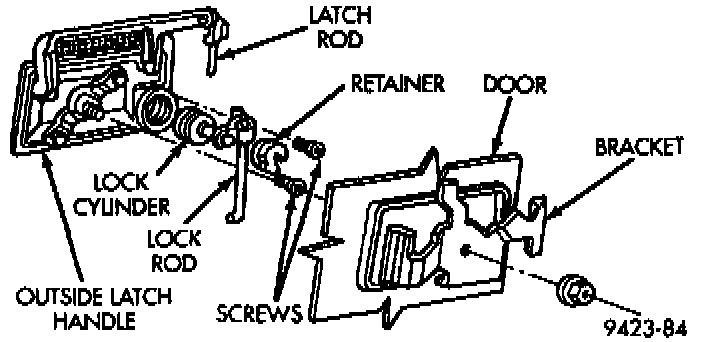

Outside Door Latch Release Handle:

1. Remove outside door latch release handle.
2. Remove screws holding lock cylinder retainer to latch handle.
3. Separate lock cylinder from latch handle.
4. Reverse the preceding operation for installation.
