Home >> Chrysler >> 1995 >> Concorde V6-201 3.3L VIN T MFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Engine Control Module

Engine Control Module

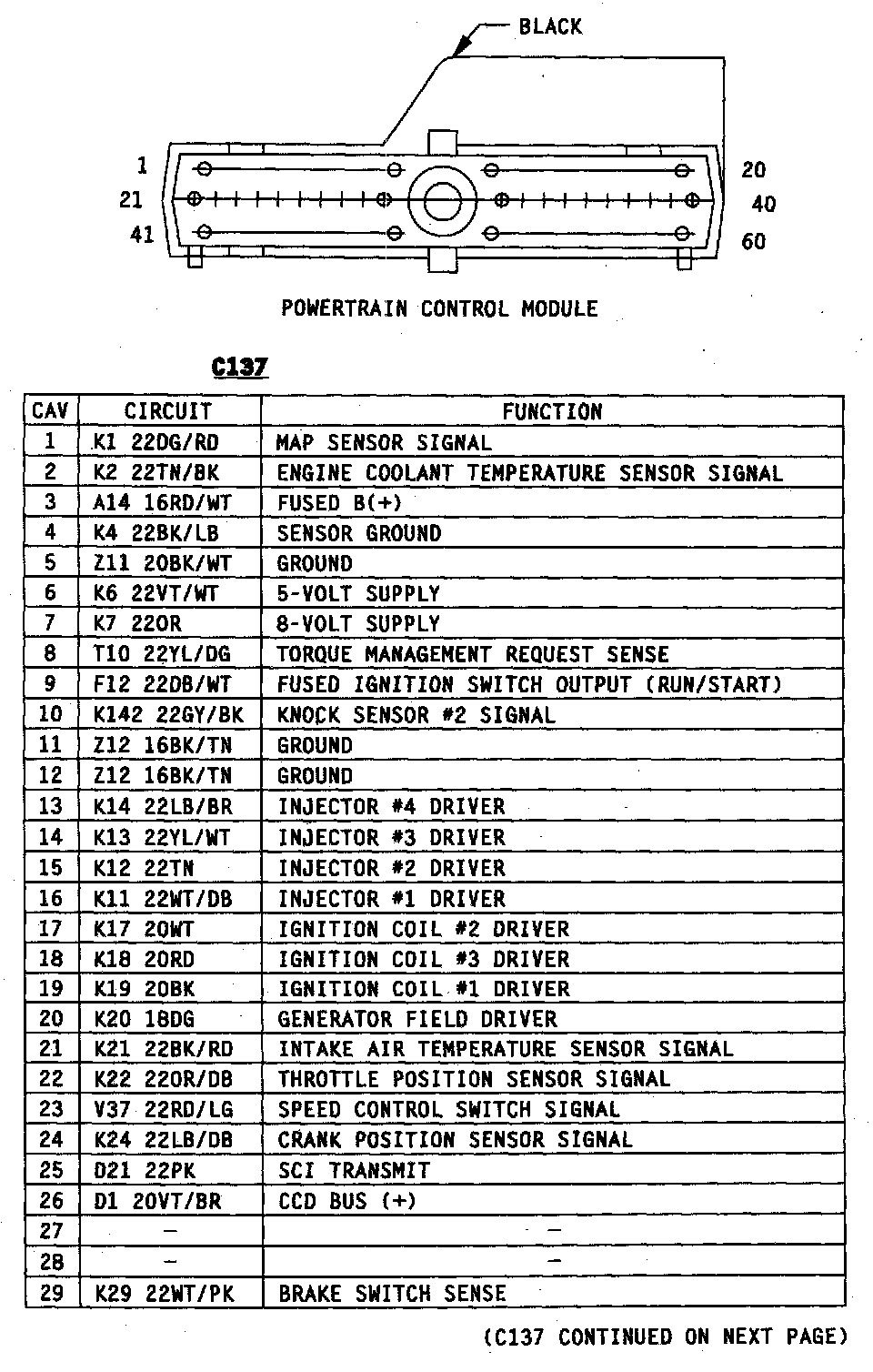

PCM Location And Pin Identification:



PCM Location and Pin Identification:



Part 1 Of 1:



Part 1 Of 1:
