Home >> Chrysler >> 1994 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 MFI >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Motor >> Testing and Inspection >> Component Tests and General Diagnostics >> Diagnostic Tests >> Test 44A: Washer Pump System Testing >> Part 2 of 2

Part 2 of 2

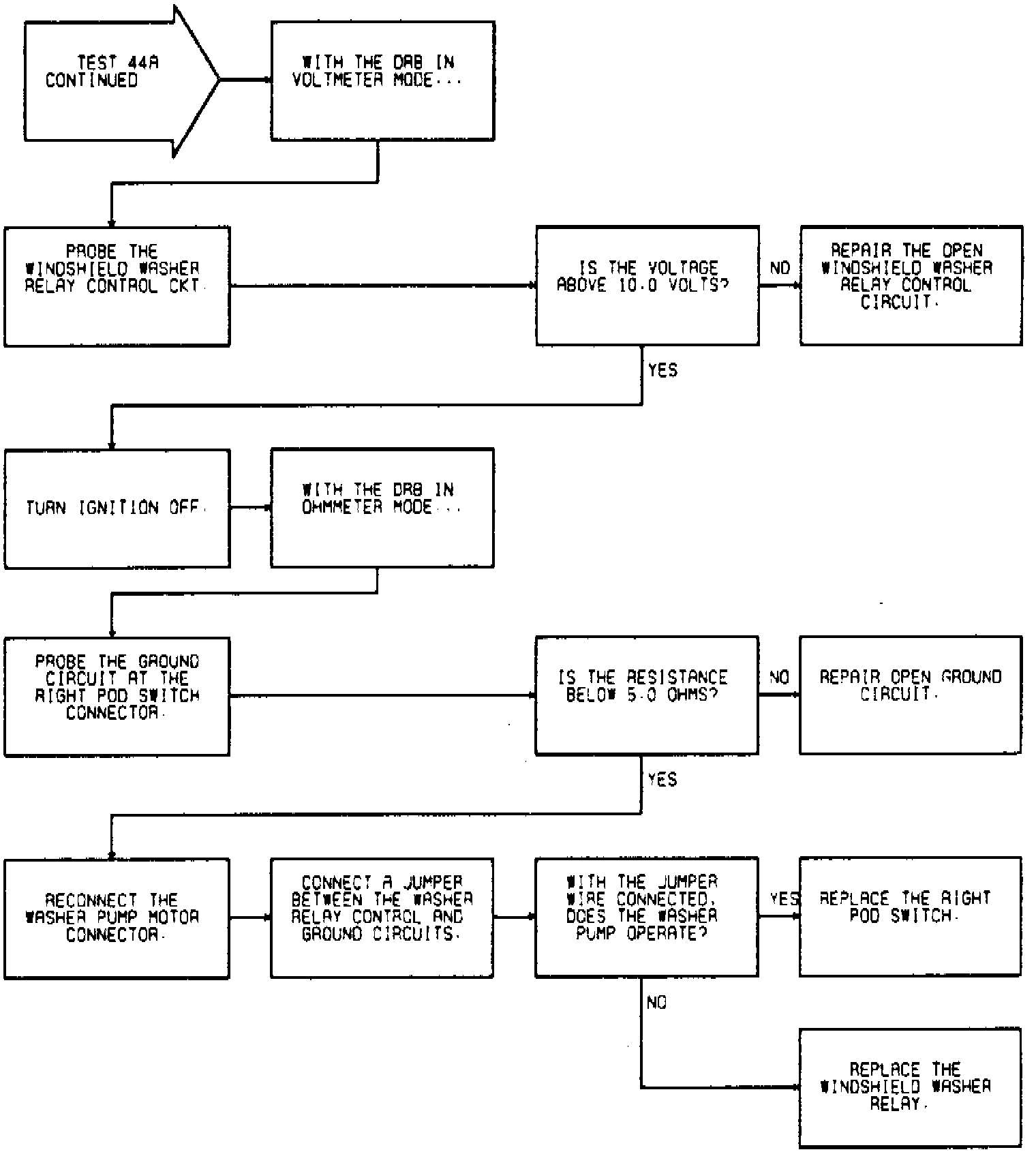

Fig.48 Test 44A: Washer Pump System Testing Part 2 of 2:
