Home >> Chrysler >> 1994 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 MFI >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Test 45B Wipers Will Not Park Testing >> Part 1 of 2

Part 1 of 2

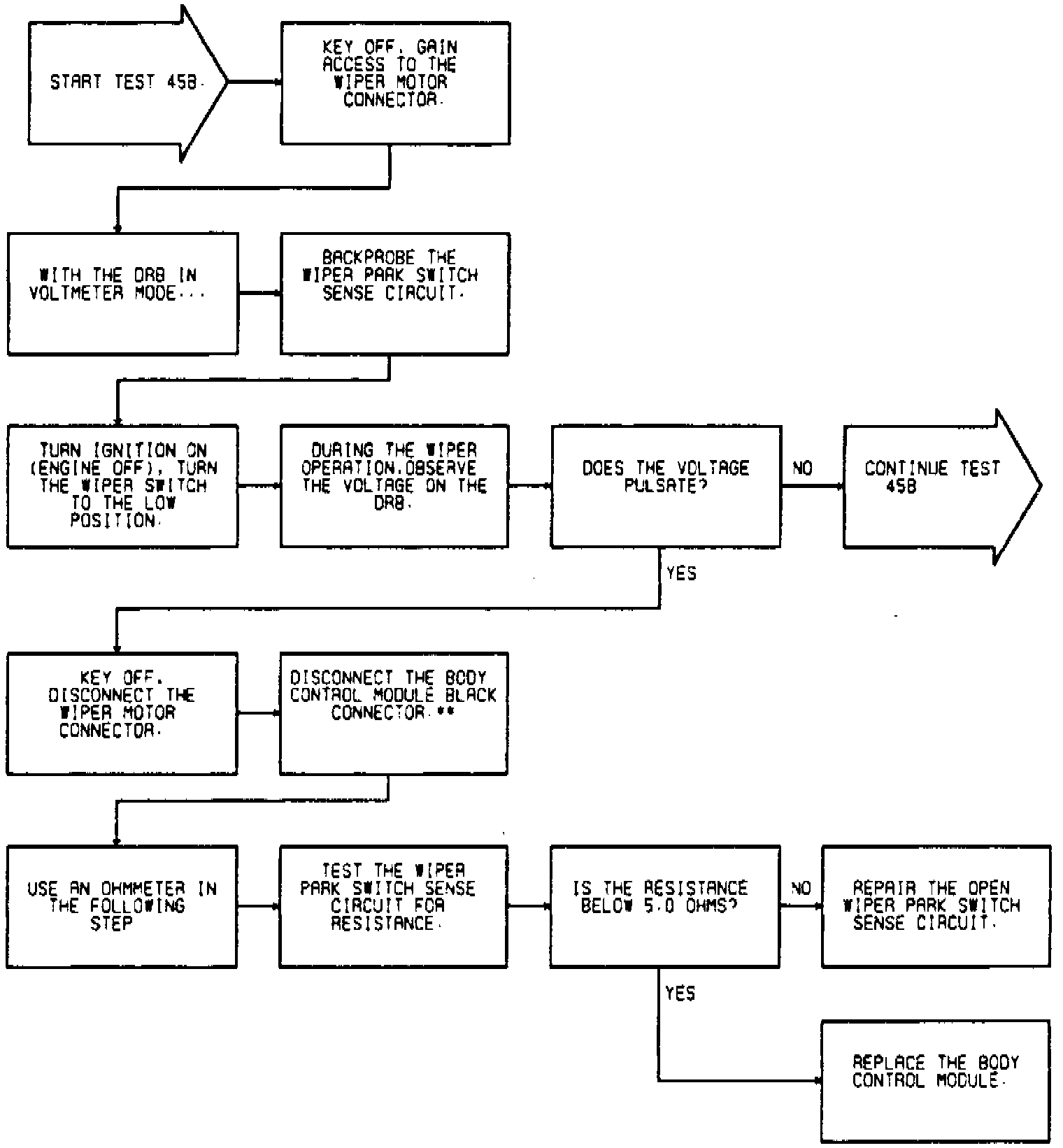

Fig.51 Test 45B: Wipers Will Not Park Testing Part 1 of 2:
