Home >> Chrysler >> 1994 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 MFI >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Test 43B Intermittent Wiper System Testing

Test 43B Intermittent Wiper System Testing

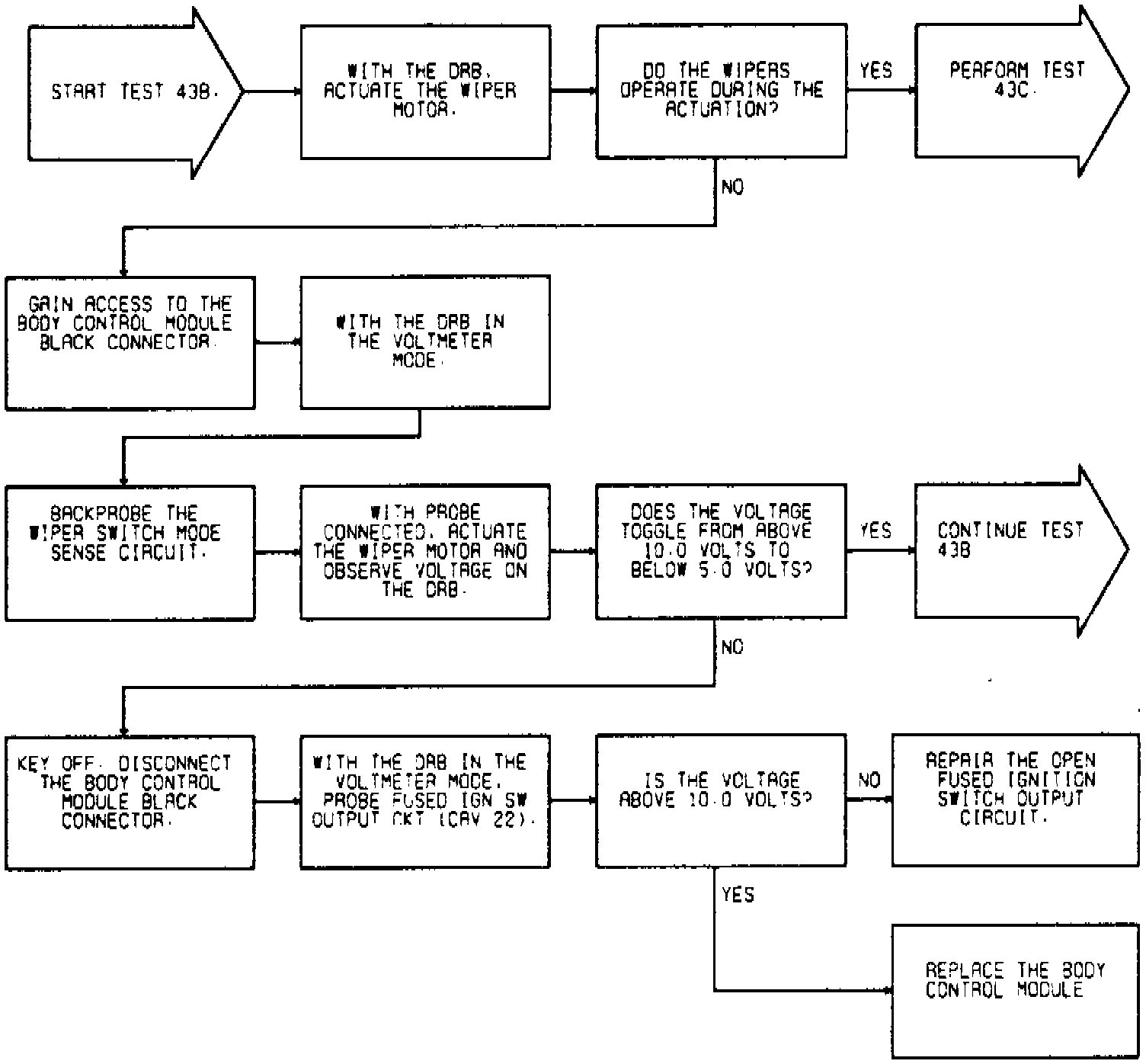

Fig.46 Test 43B: Intermittent Wiper System Testing Part 1 of 2:
