Seat Belt: Service and Repair

Rear Seat Belts:

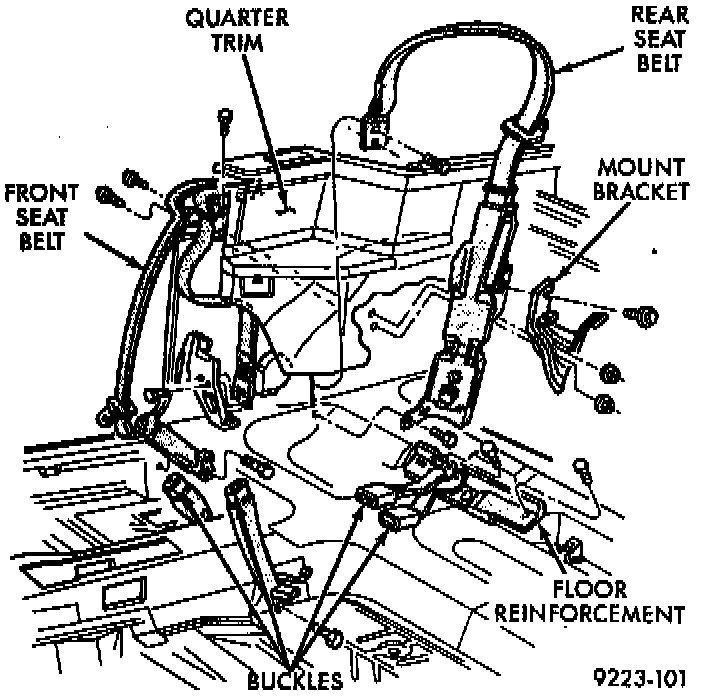

FRONT SEAT BELTS RETRACTOR REMOVAL
1. Remove bolt holding seat belt lower anchor to door sill.
2. Remove quarter trim panel.
3. Remove bolt holding seat belt turning loop to top of inner quarter panel.
4. Remove bolt holding seat belt retractor to brace on lower quarter panel.
5. Separate seat belt from vehicle.
6. Reverse the preceding operation for installation.

BUCKLE REMOVAL
1. Adjust front seat to the forward position.
2. Disengage wire connector from body harness (driver side only).
3. Remove bolt holding seat belt buckle to floor.
4. Separate seat belt buckle from vehicle.
5. Reverse the preceding operation for installation.

REAR SEAT BELTS REMOVAL
1. Remove rear seat cushion and back.
2. Remove bolt holding shoulder belt turning loop to seat back reinforcement panel.
3. Remove bolts holding rear seat belt retractor to floor kick-up.
4. Remove bolts holding retractor to quarter panel reinforcement.
5. Remove bolts holding lap belt to lower quarter panel reinforcement.
6. Separate seat belt retractor from vehicle.
7. Reverse the preceding operation for installation.
