Home >> Chrysler >> 1994 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 MFI >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Diagrams >> Electrical Diagrams

Electrical Diagrams

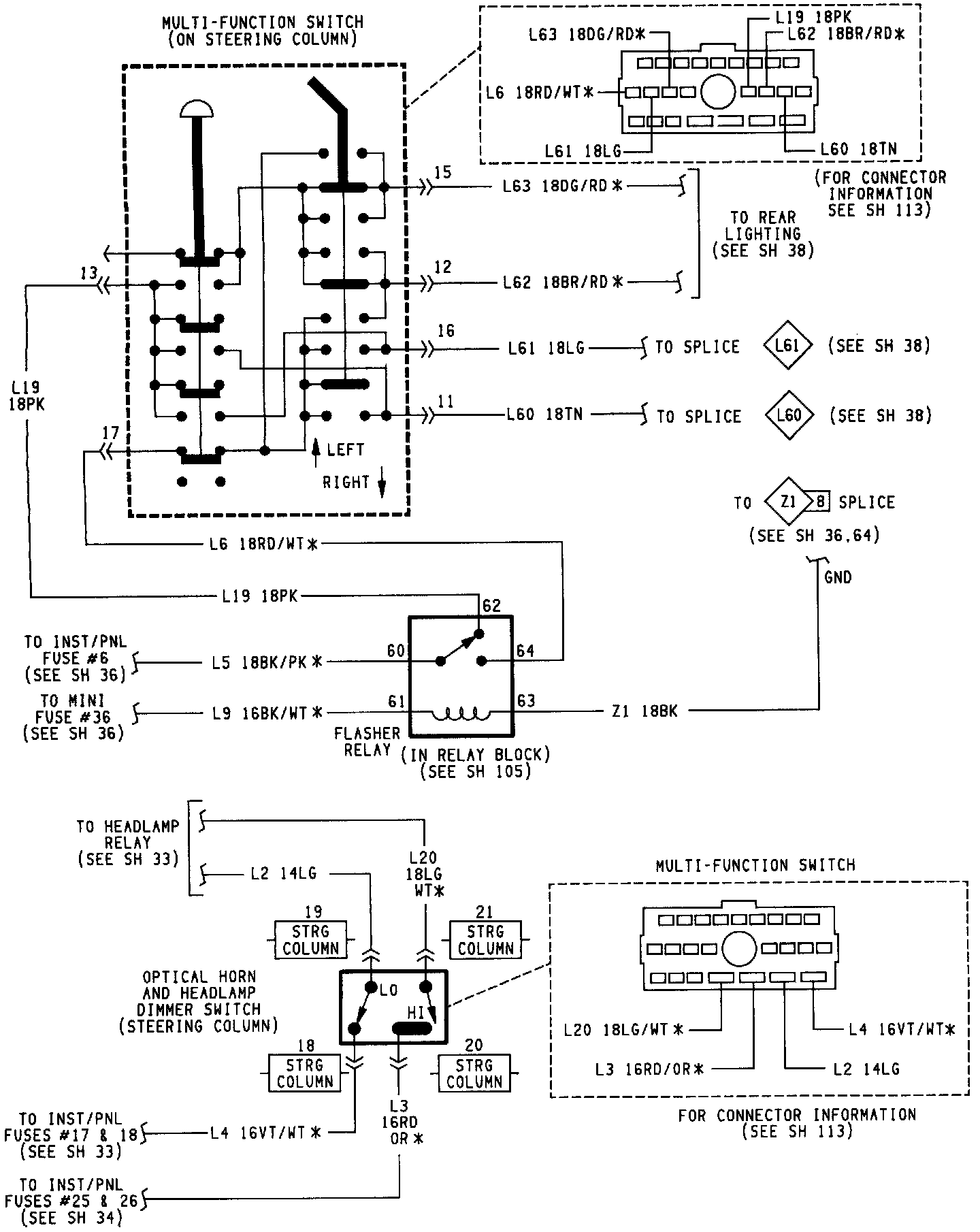

Turn And Hazard Flasher System - Part 1:

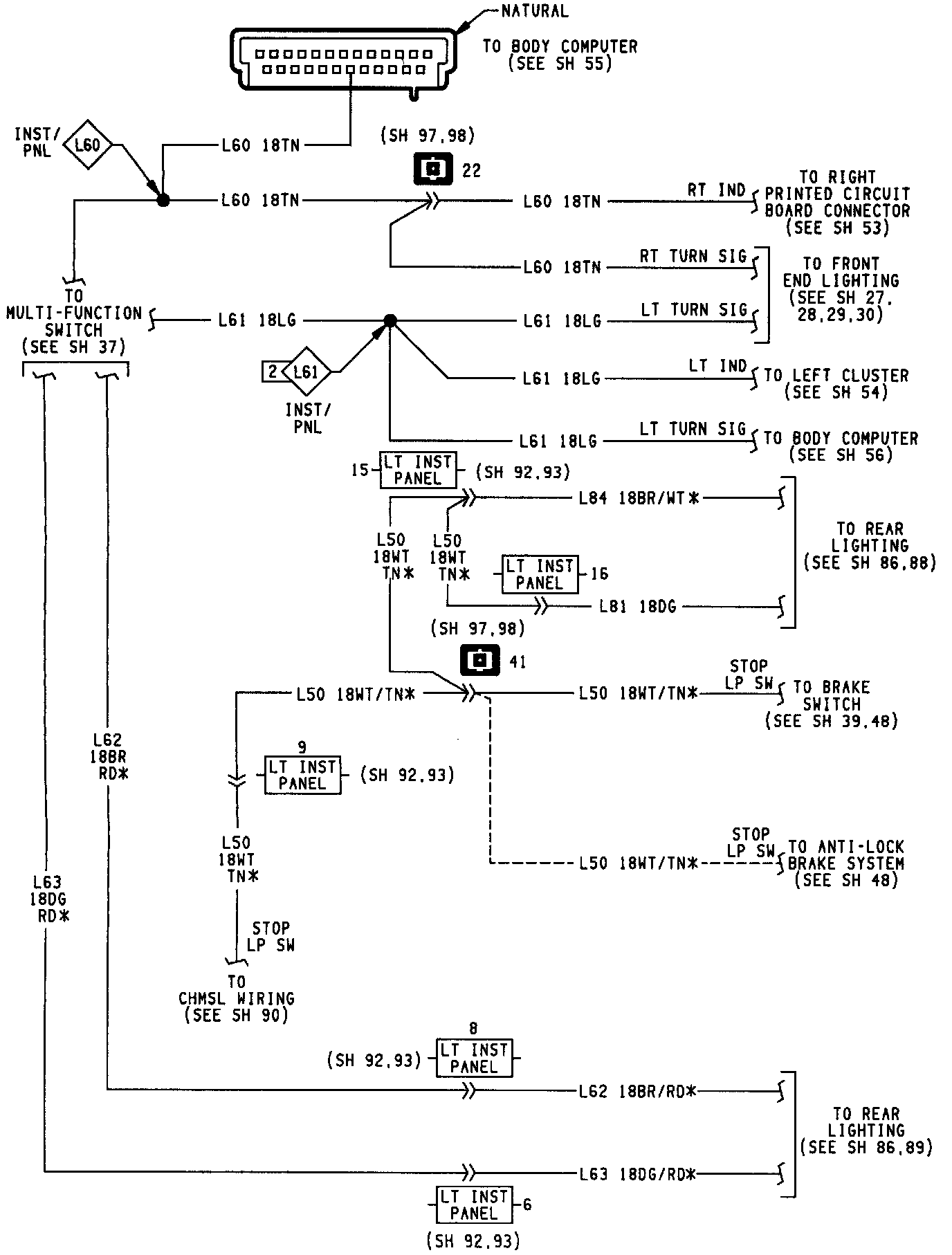

Turn And Hazard Flasher Systems - Part 2:

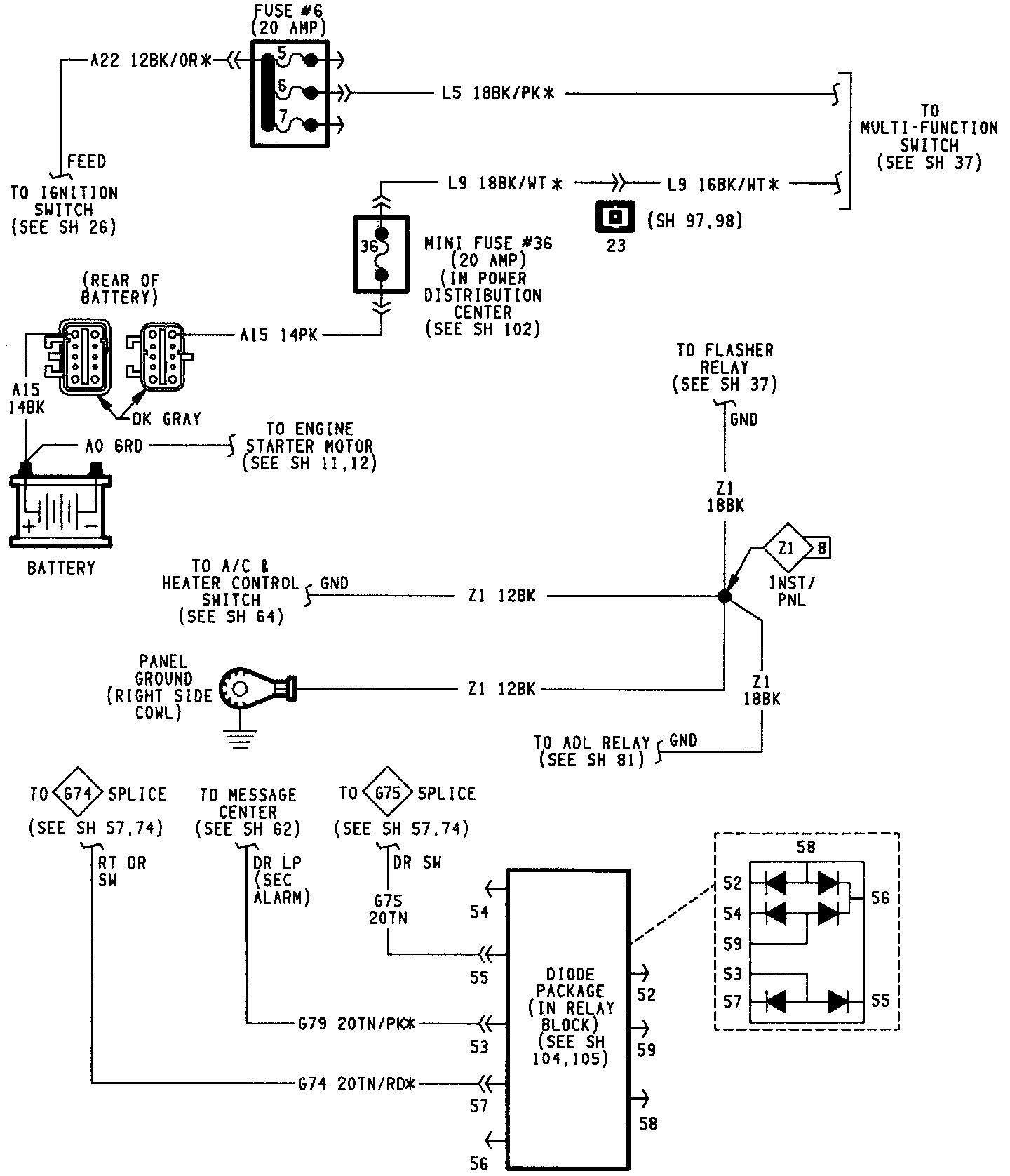

Turn And Hazard Flasher Systems - Part 3:
