Mechanical Cluster #1 Left Printed Circuit Board Connector
Mechanical Cluster #1 Left Printed Circuit Board Connector

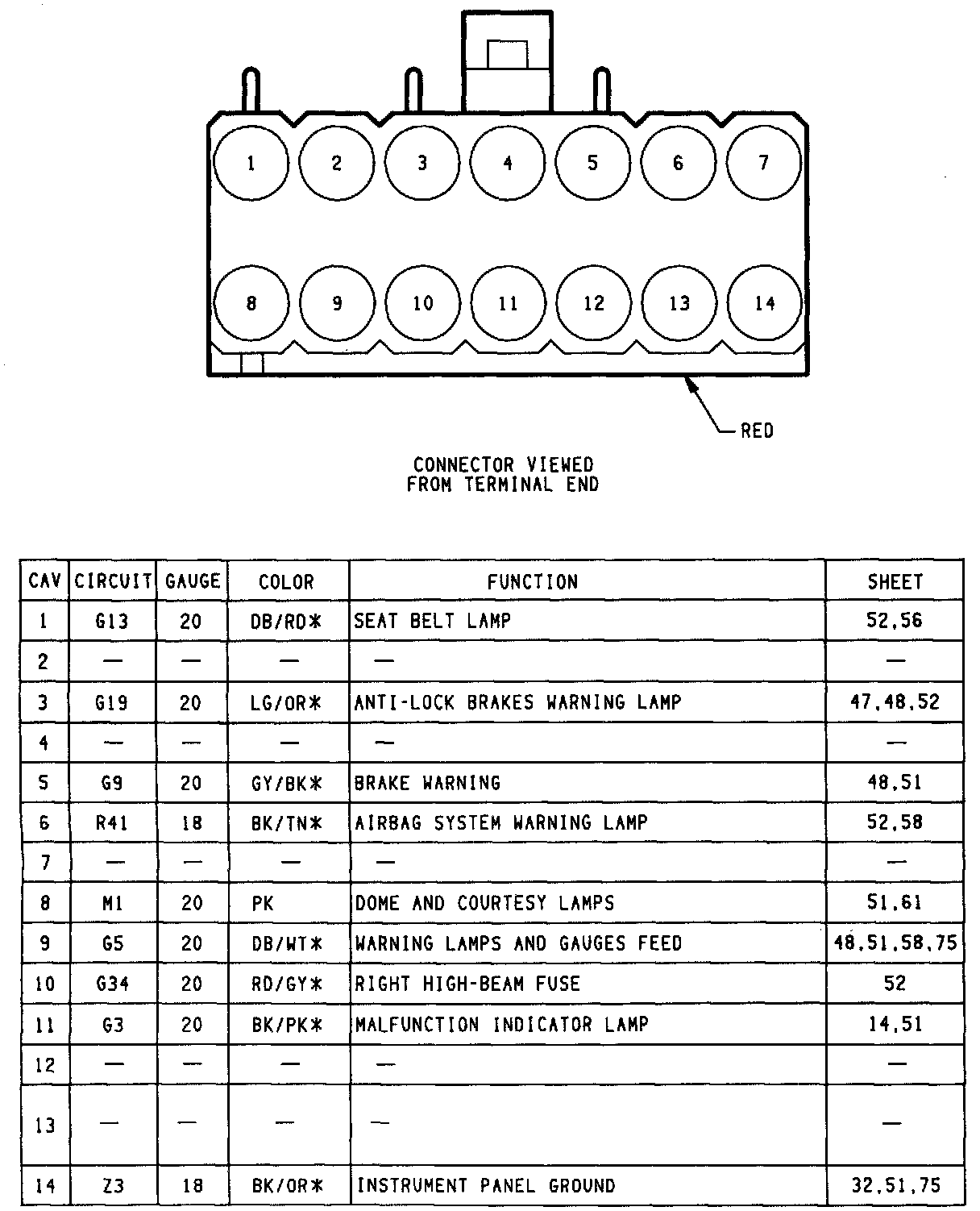

Mechanical Cluster #1 Left Printed Circuit Board Connector:
