Defroster/Demister Duct and Hose Replacement

REMOVAL AND INSTALLATION
1. Instrument panel assembly must be removed.
2. After instrument panel has been removed, separate the defroster/demister ducts from the air distribution duct.

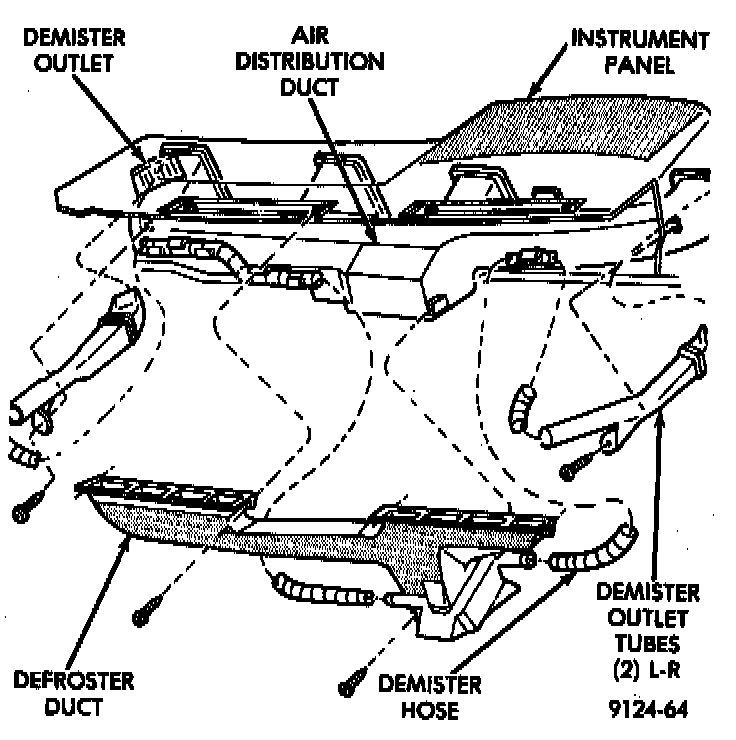

Defroster/Demister Ducts And Hoses:




3. Remove the demister tubes and hoses.

To install, reverse removal procedure.
