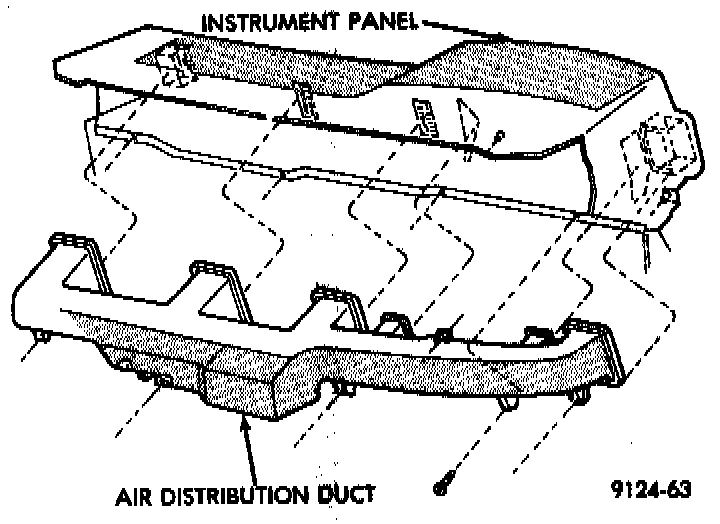

Air Distribution Duct Replacement

REMOVAL AND INSTALLATION
1. Instrument panel assembly must be removed.
2. After instrument panel has been removed, separate the defroster/demister ducts from the air distribution duct.

Air Distribution Duct:

3. Remove the air distribution duct-to-instrument panel mounting screws.

To install, reverse removal procedure.
