Home >> Chrysler >> 1994 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo >> Electronically Tuned Stereo Radio With RS System >> Part 2 of 2

Part 2 of 2

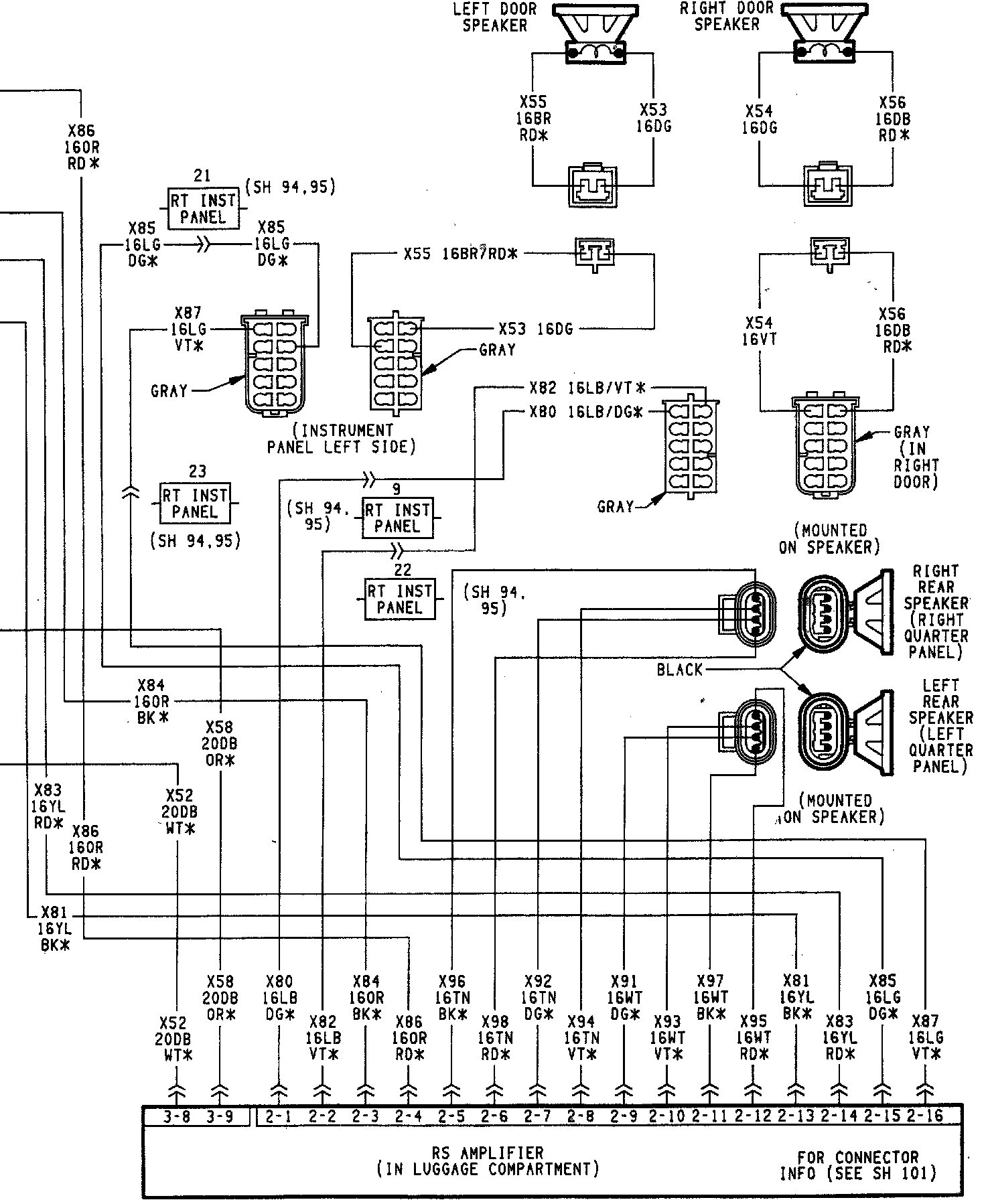

Electronically Tuned Stereo With RS System:
