Front End Lighting

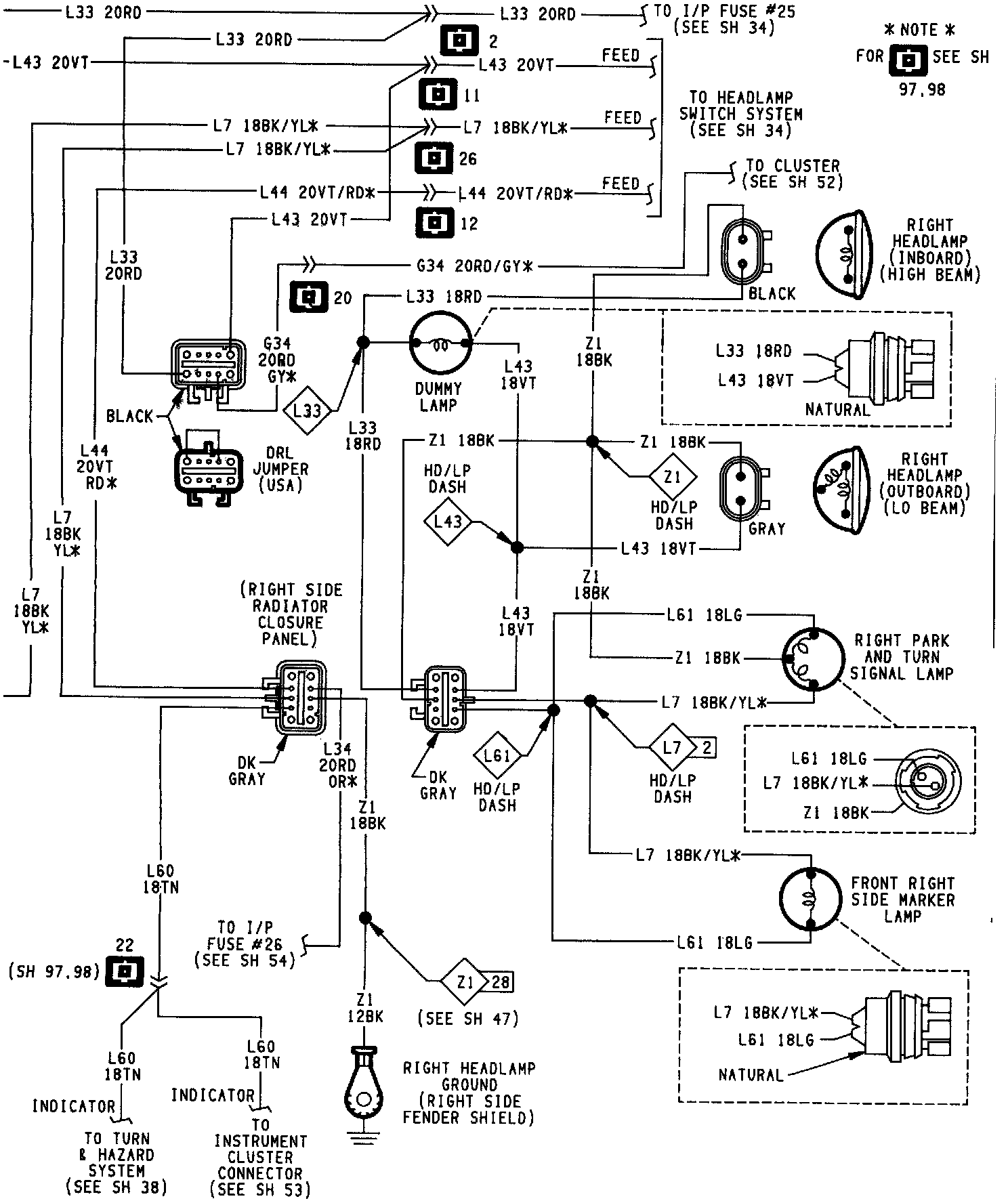

Front End Lighting:

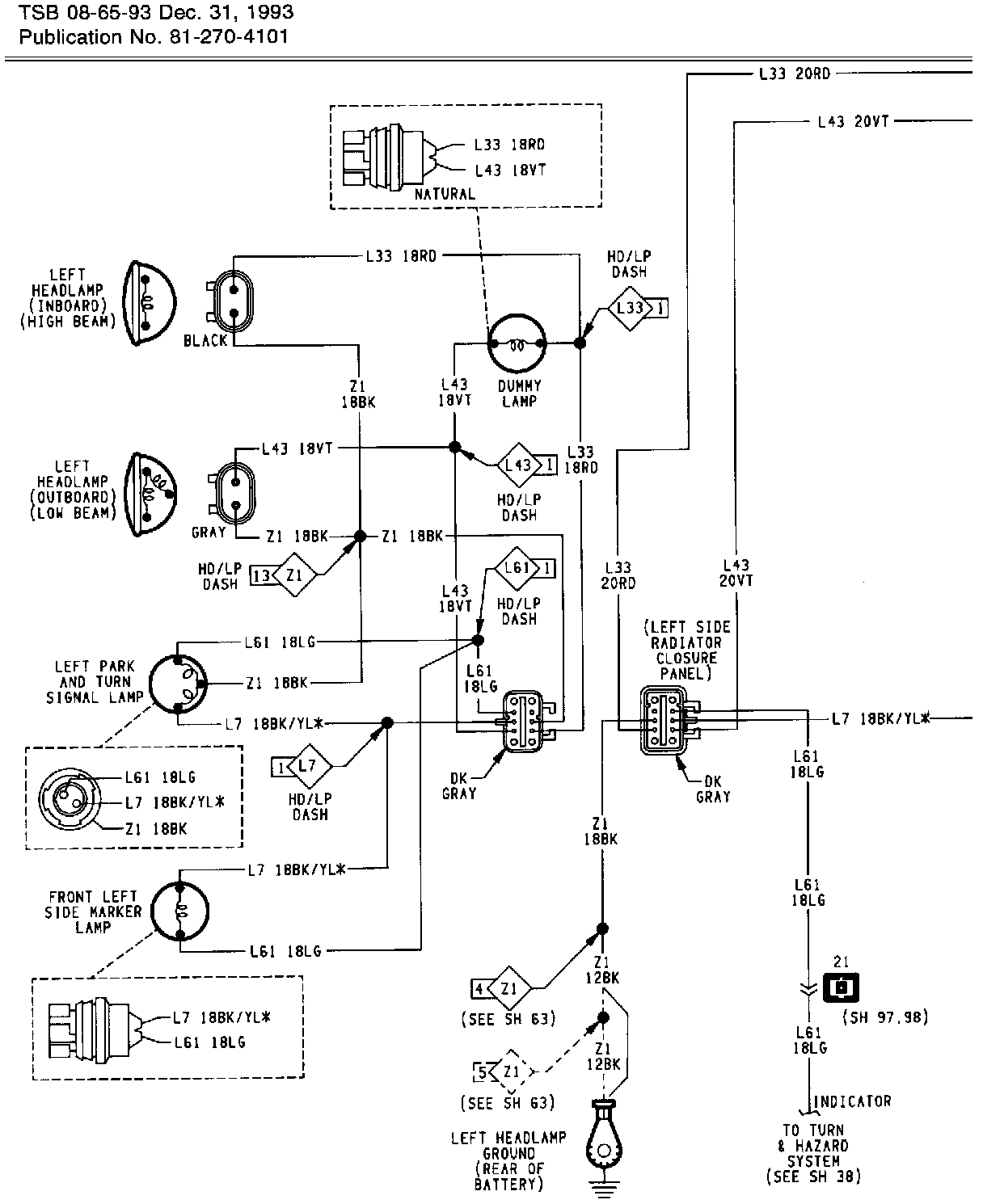

Front End Lighting (CANADA):

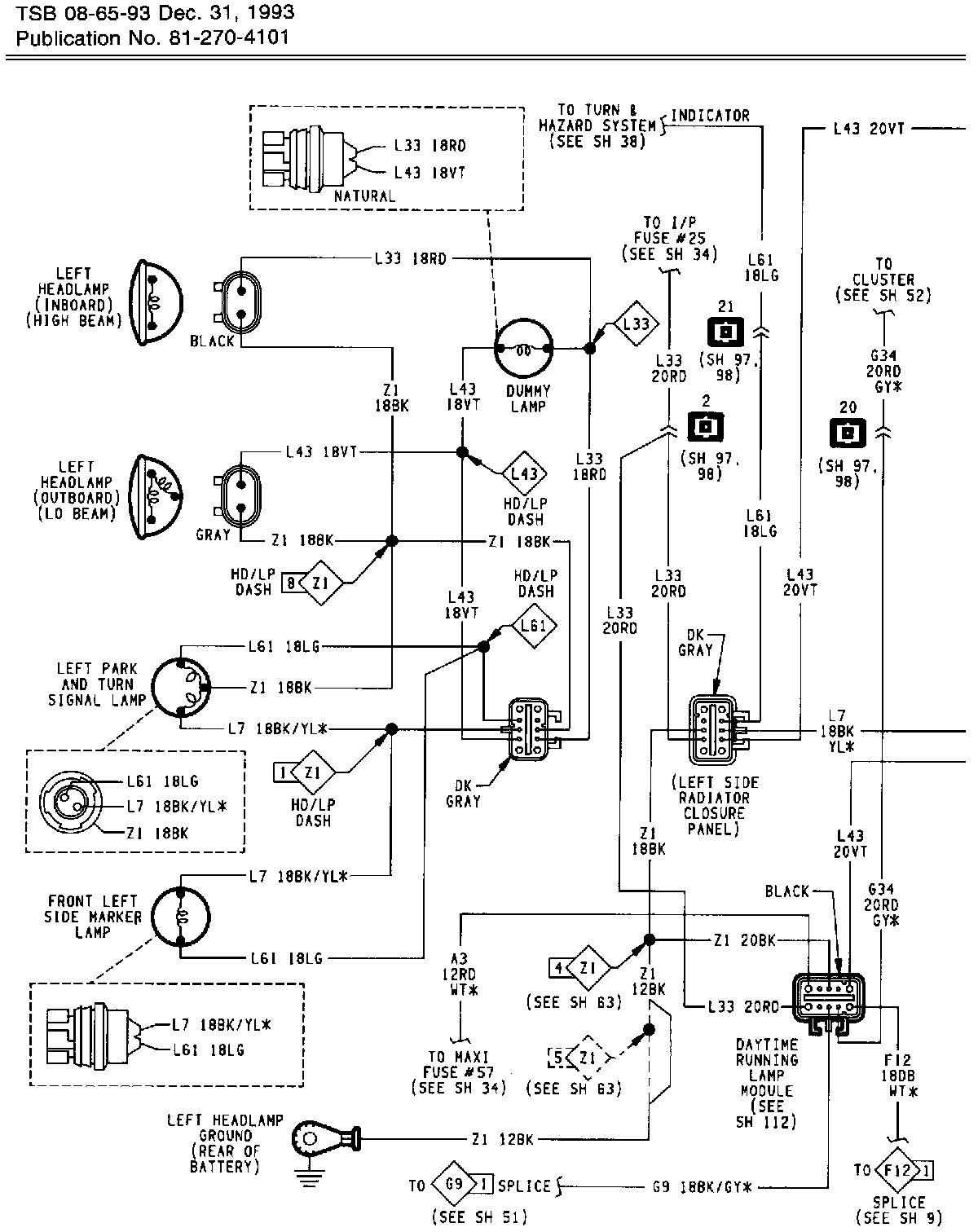

Front End Lighting:

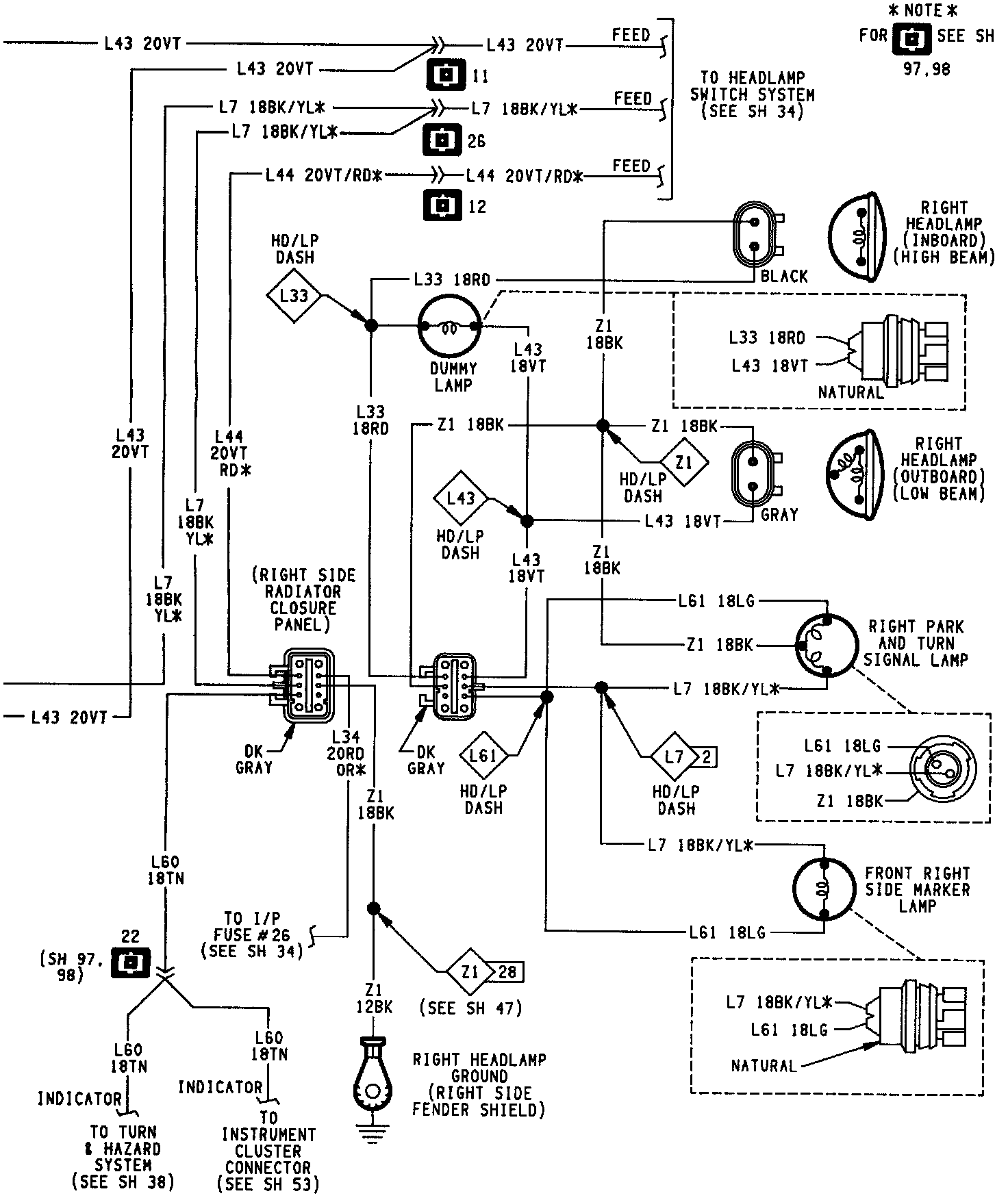

Front End Lighting (Canada):
