Home >> Chrysler >> 1994 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Courtesy Lamp >> System Diagram >> Dome, Reading, and Courtesy Lamps

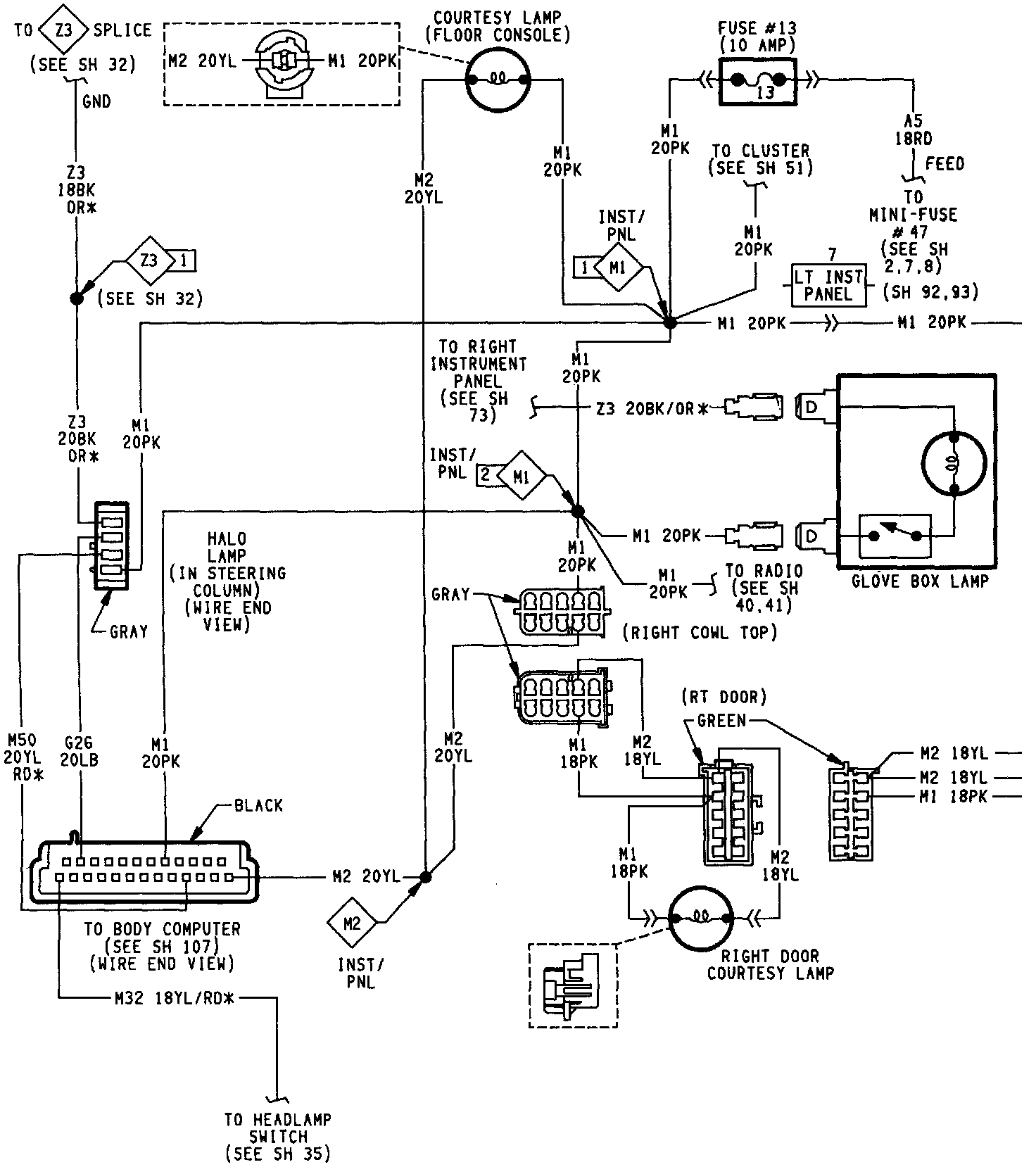

Dome, Reading, and Courtesy Lamps

Dome, Reading And Courtesy Lamps:



Dome, Reading And Courtesy Lamps:
