System Diagram

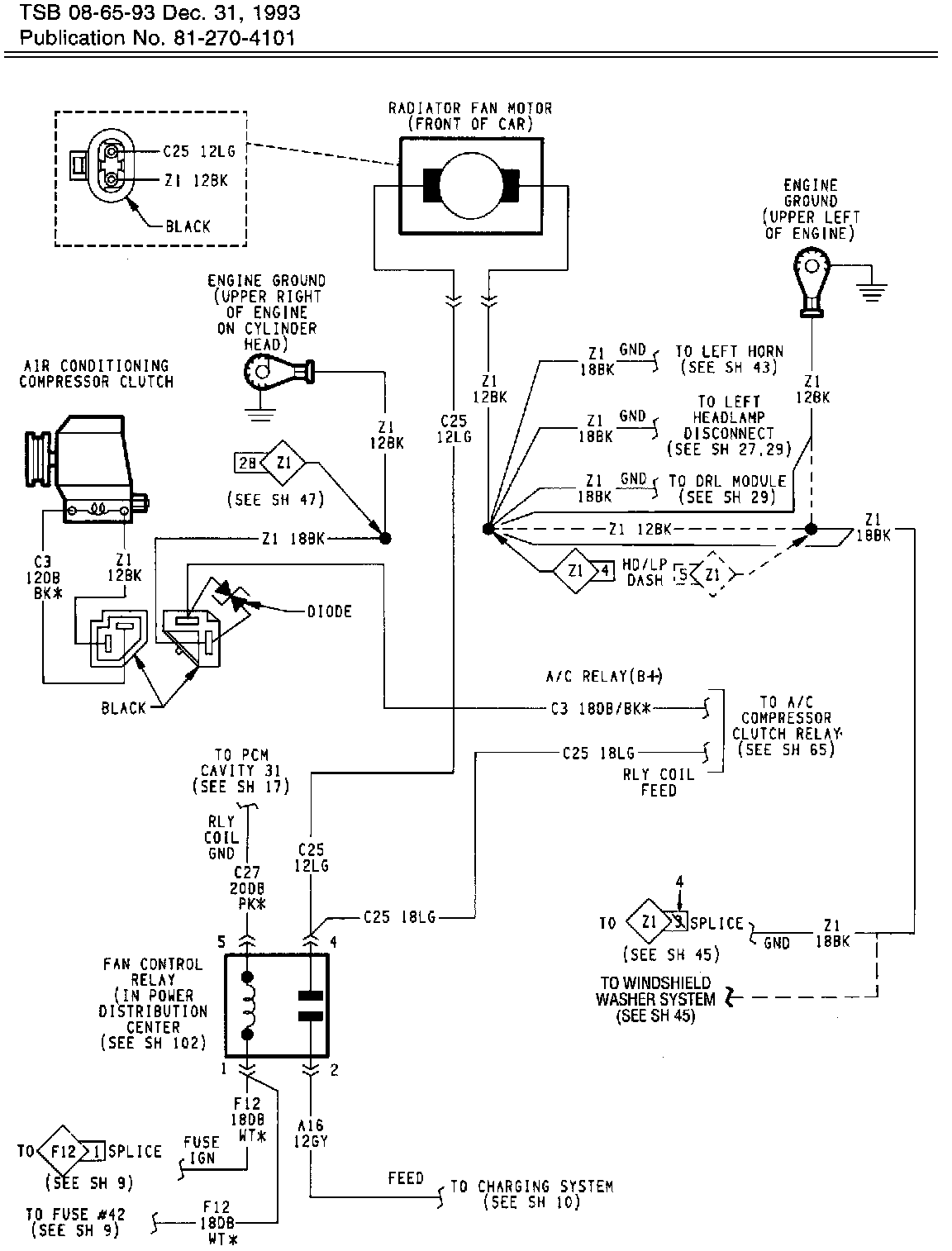

Cooling Fan:

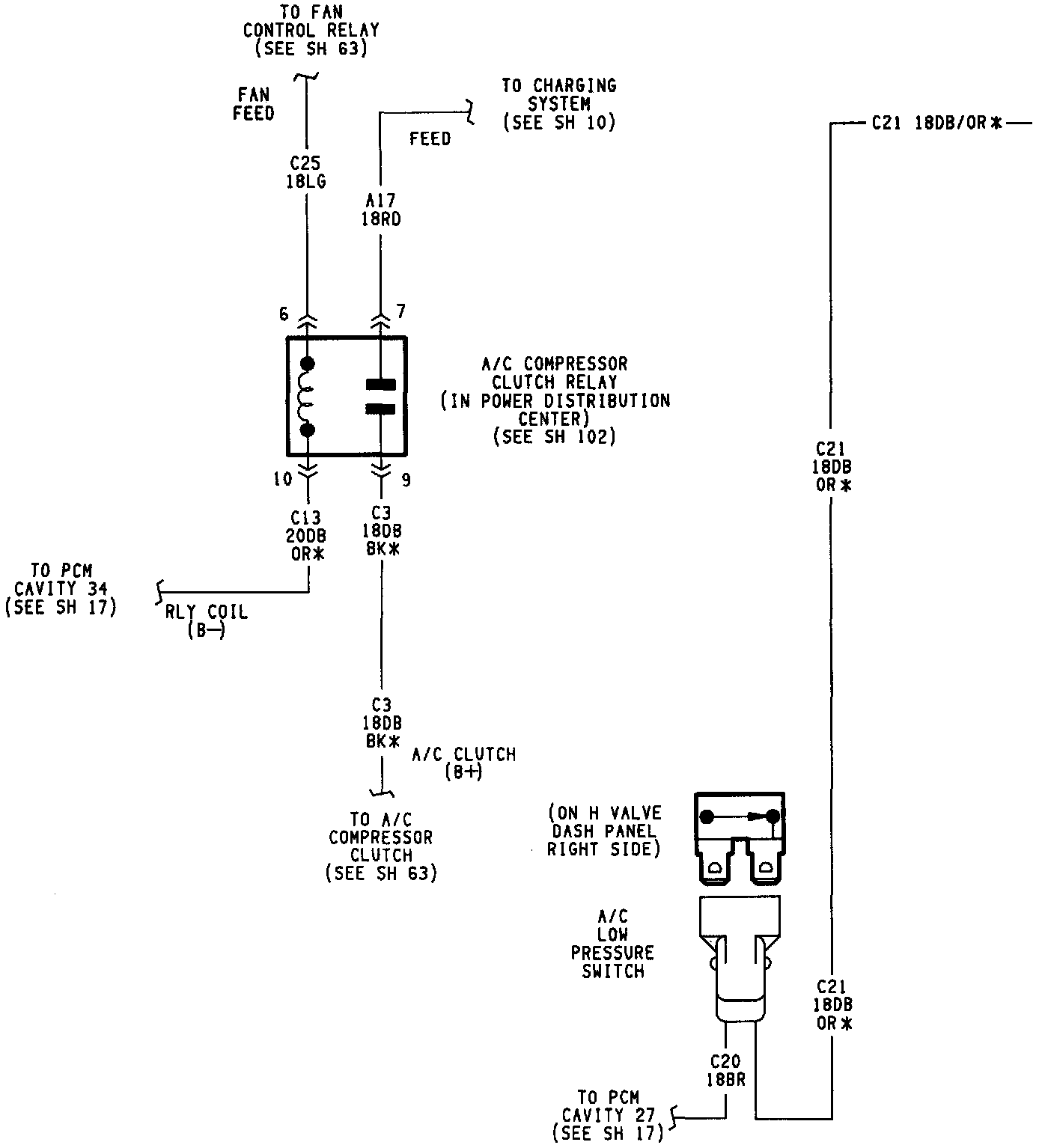

Air Conditioning Part 1 Of 3:

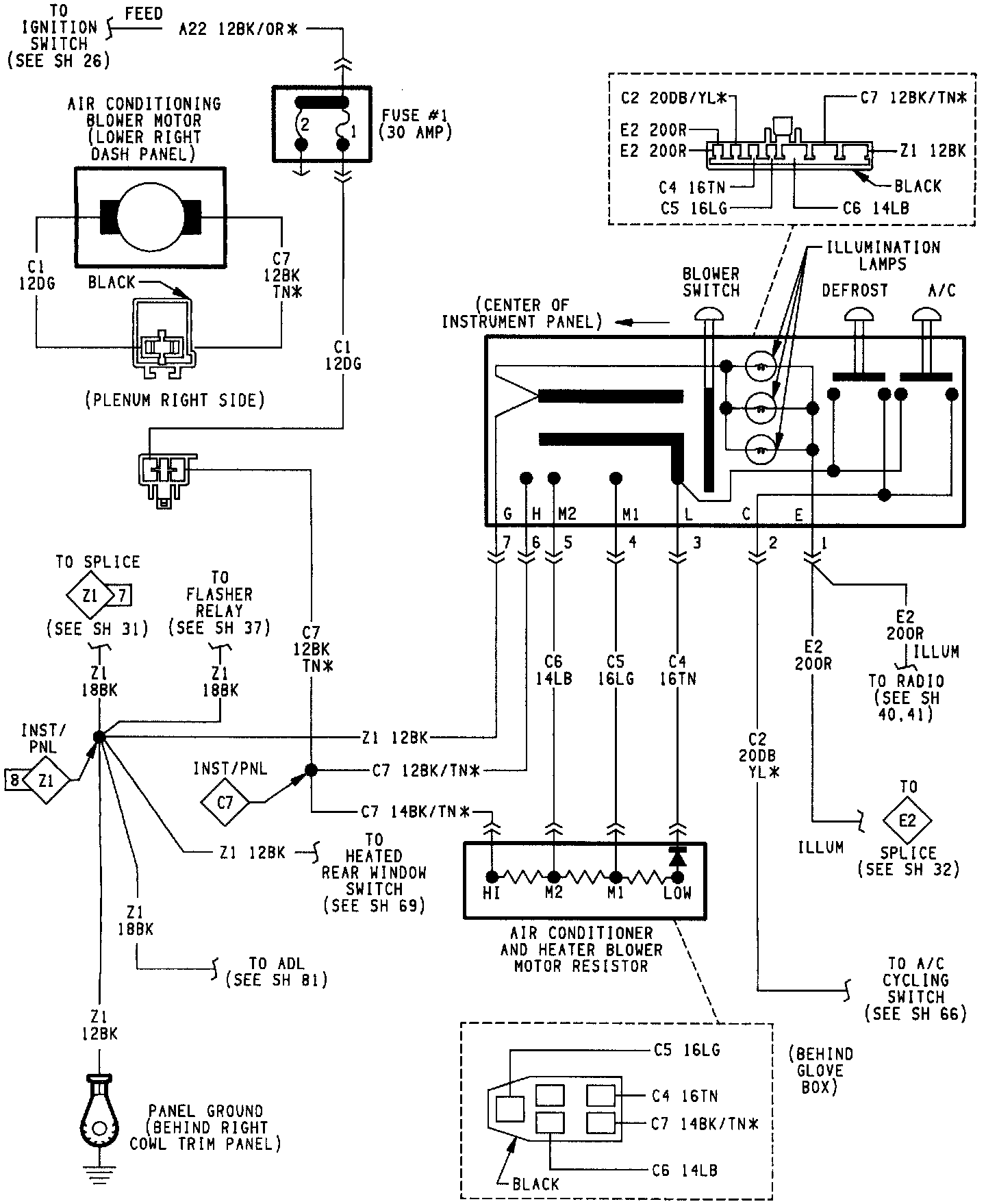

Air Conditioning And Heater System 2 Of 3:

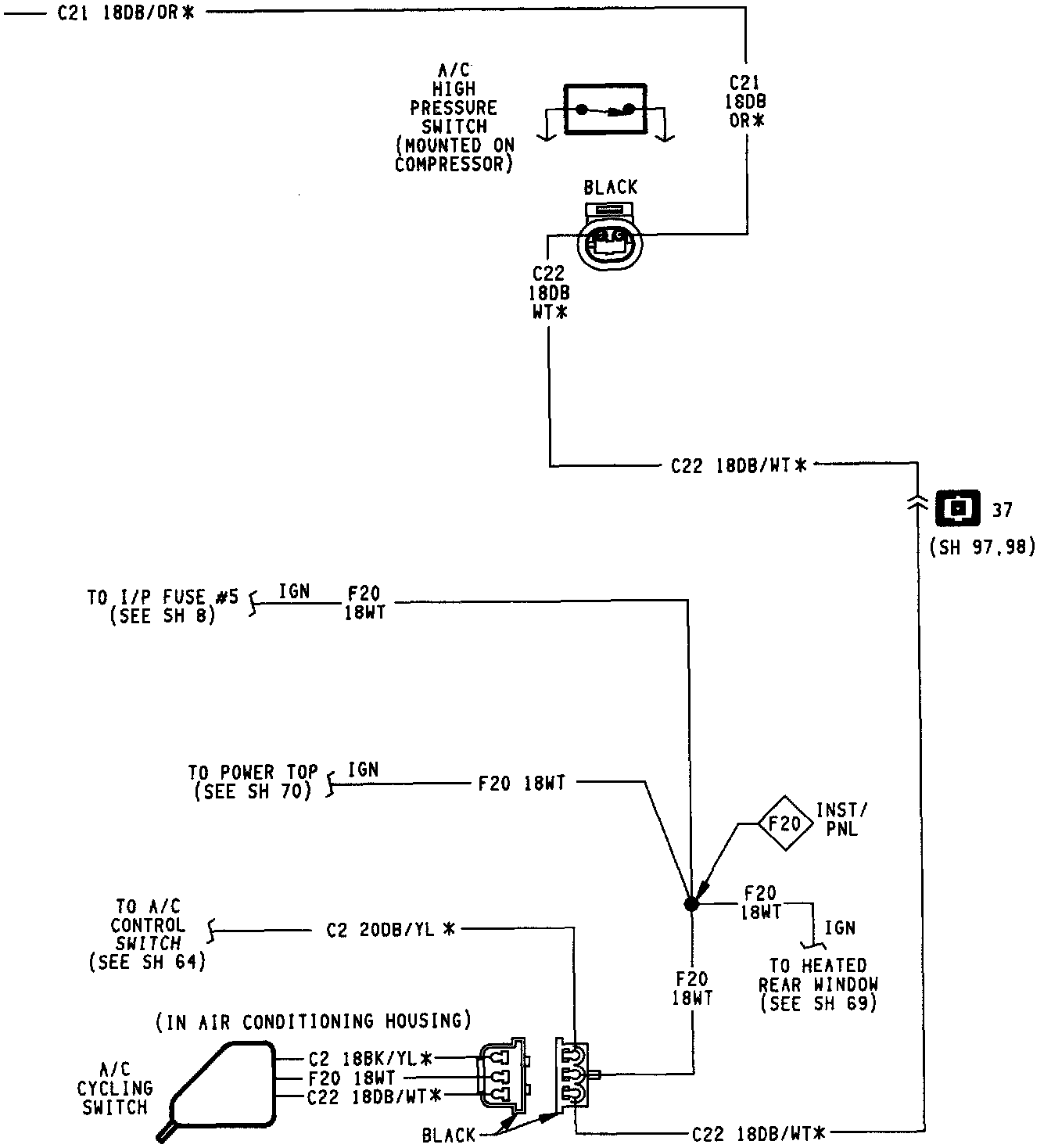

Air Conditioning And Heater System 3 Of 3:
