Outside Rear View Mirror

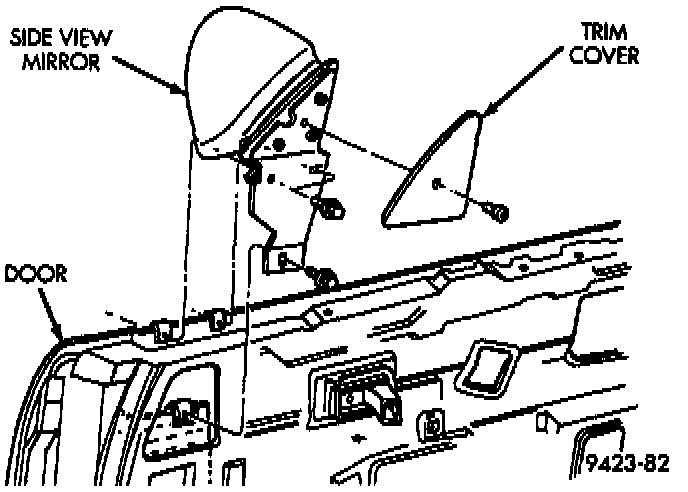

Side View Mirror:

1. Remove Door trim panel and water shield.
2. Remove door hinge pillar seal.
3. Remove screw holding trim cover to side view mirror.
4. Disengage wire connector from power side view mirror, if equipped.
5. Remove bolt holding side view mirror to door reinforcement beam.
6. Remove bolts holding side view mirror to door belt flange.
7. Separate side view mirror from door.
8. Reverse the preceding operation for installation.
