Doors: Service and Repair

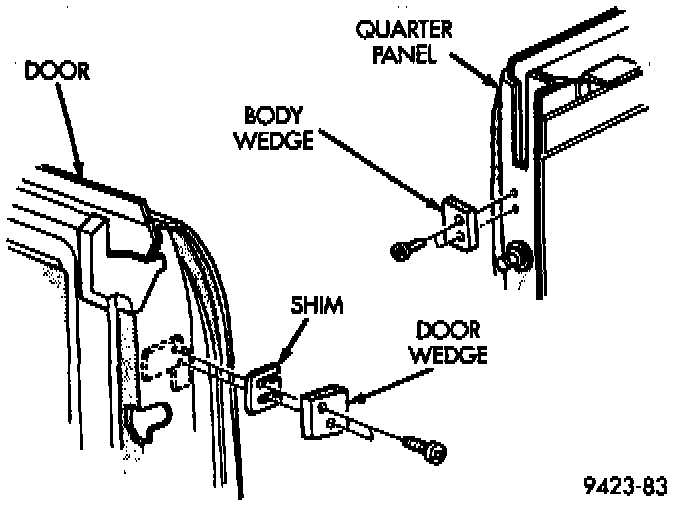

Door And Body Wedges:





Wedges limit the movement of a closed door to reduce rattles when the vehicle. is driven over rough or uneven road surfaces. The wedge on the door can be moved inward or outward using shims to achieve proper alignment.
