Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 MFI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Windshield Wiper and Washer System
>>
119A Repairing Wiper Problem During Wash Cycle
119A Repairing Wiper Problem During Wash Cycle

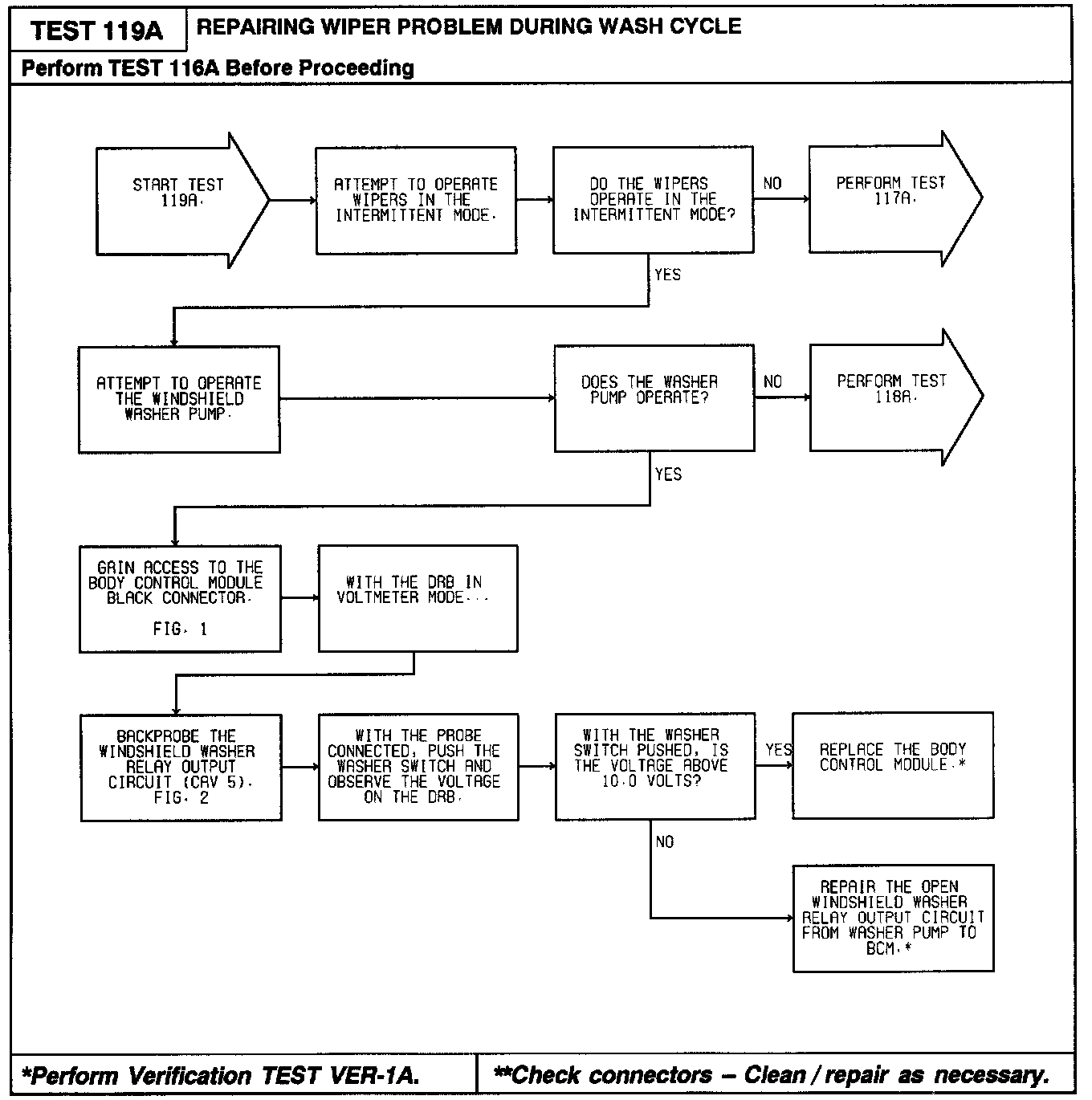

Diagnostic Chart:

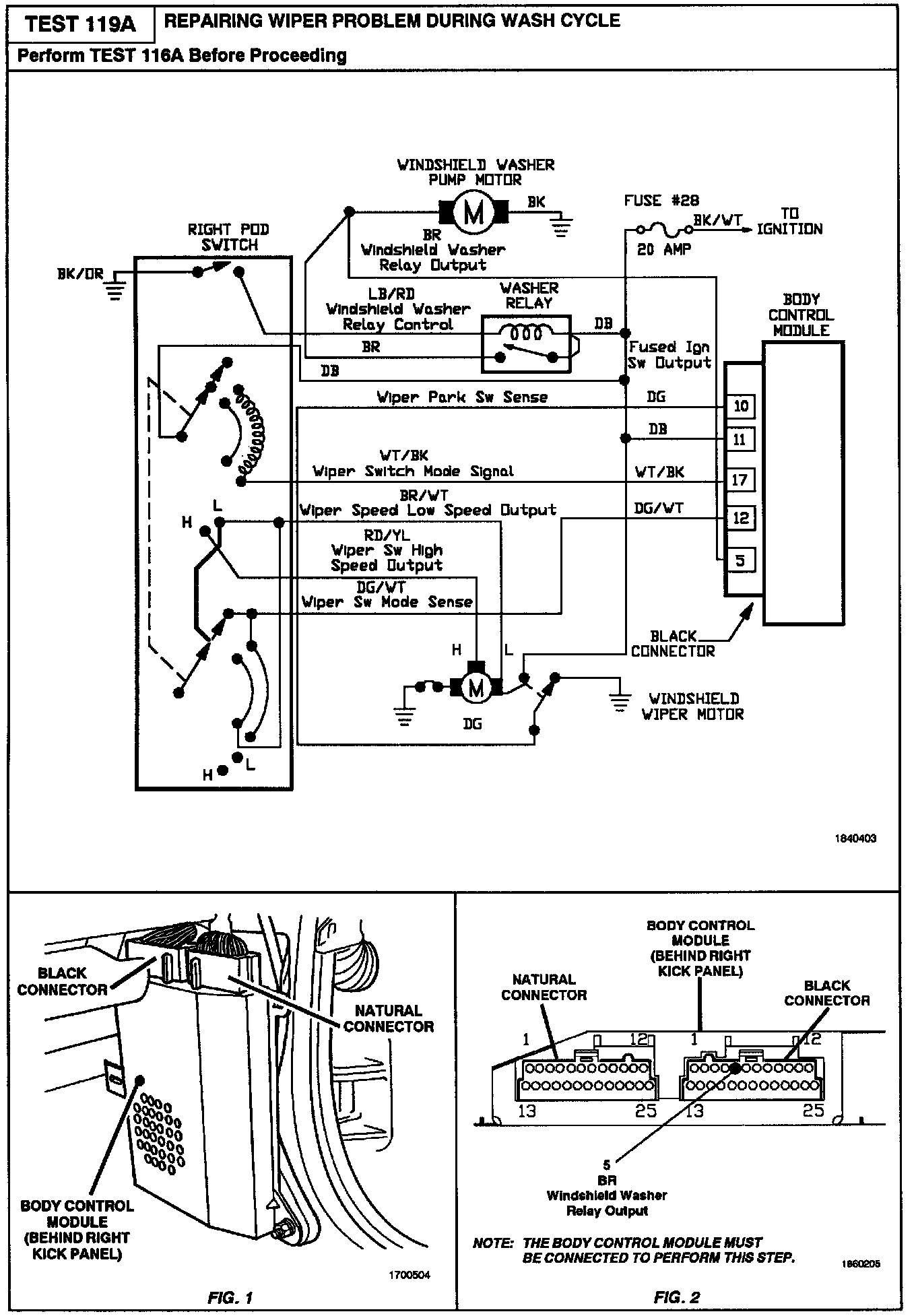

Related Images:
