Power Door Lock System
>>
85A One Door Failing to Lock and Unlock From One Switch
85A One Door Failing to Lock and Unlock From One Switch

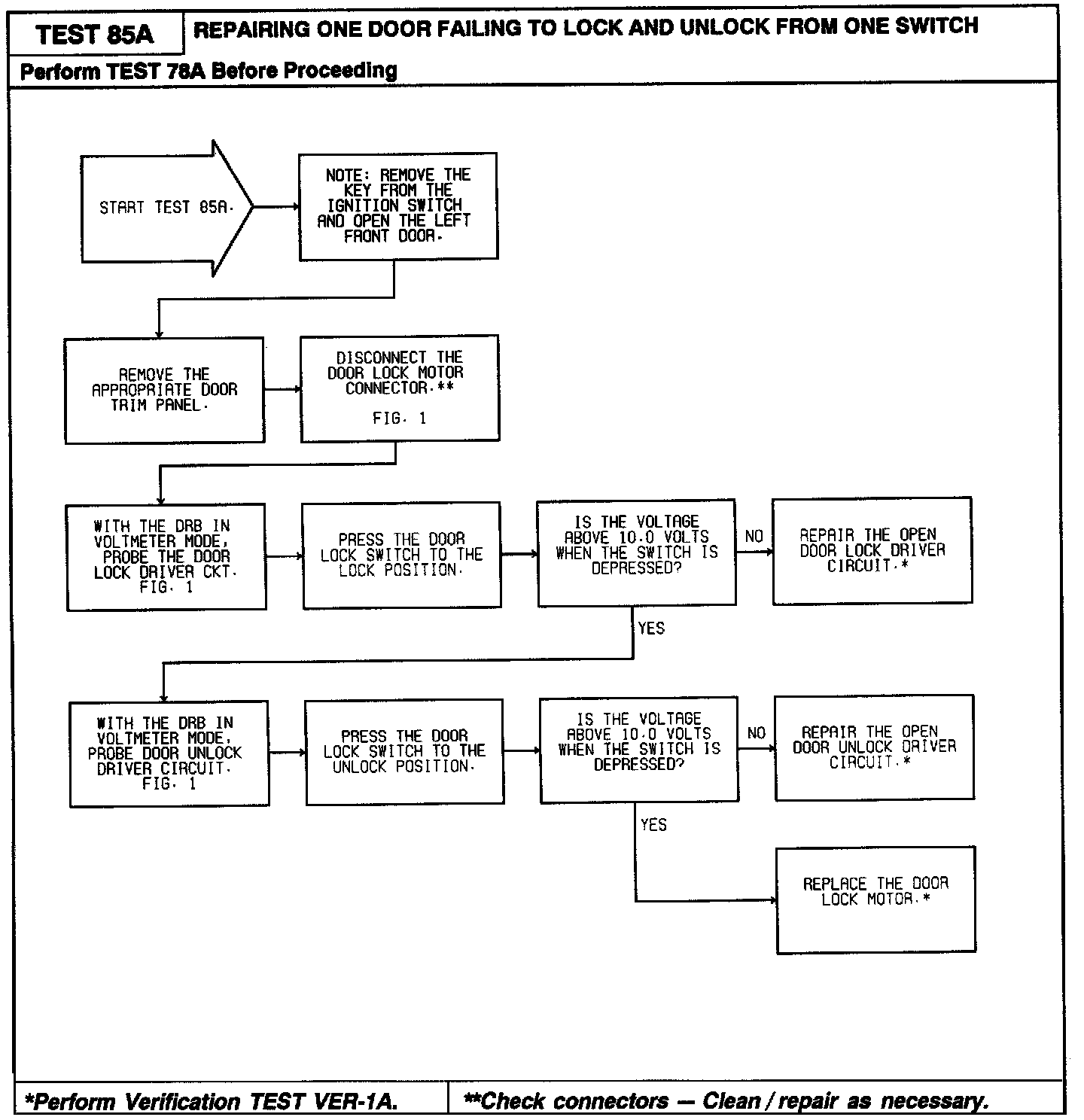

Diagnostic Chart:

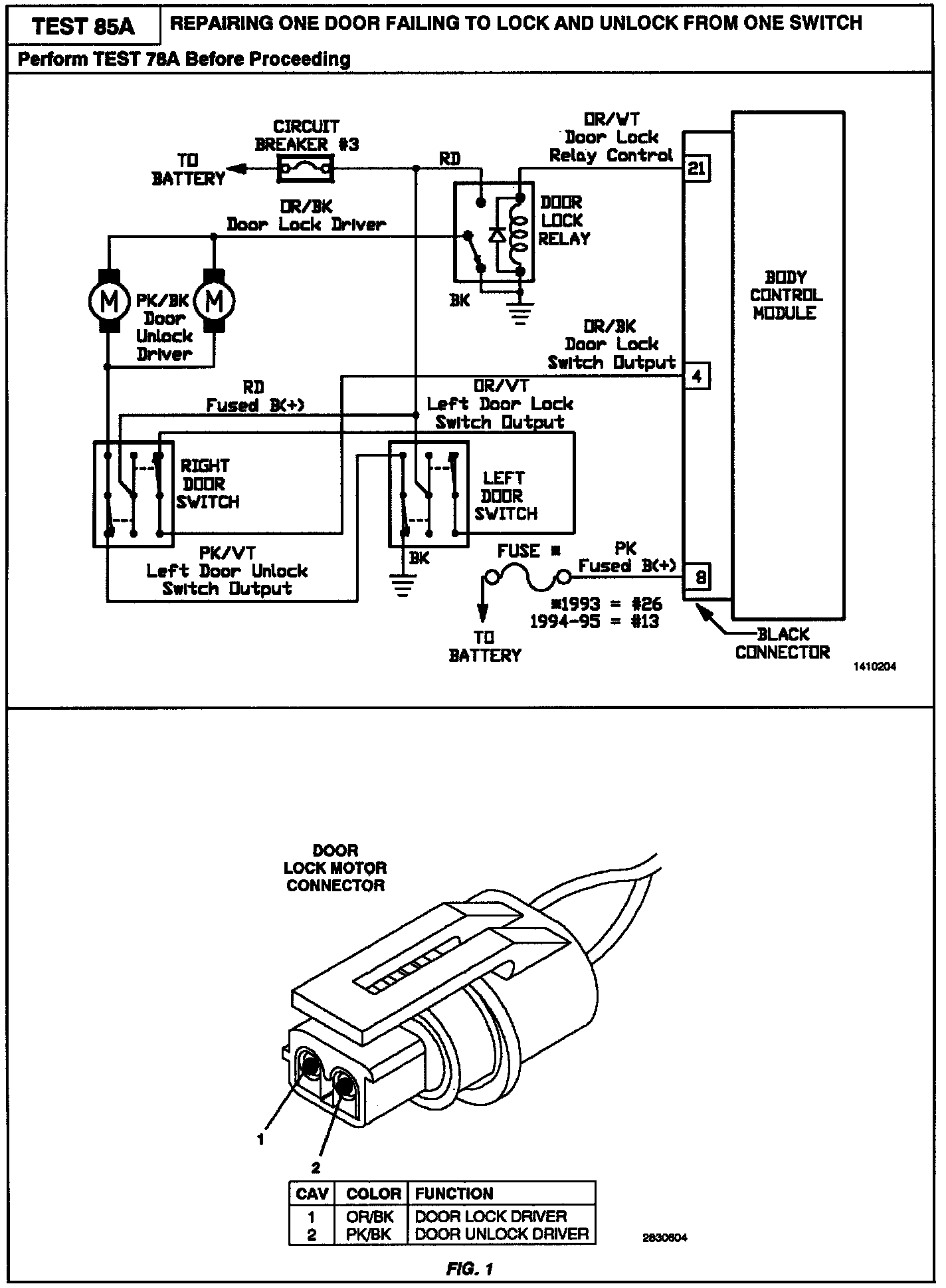

Related Images:
