83A All Doors Failing to Unlock From Either Switch
83A All Doors Failing to Unlock From Either Switch

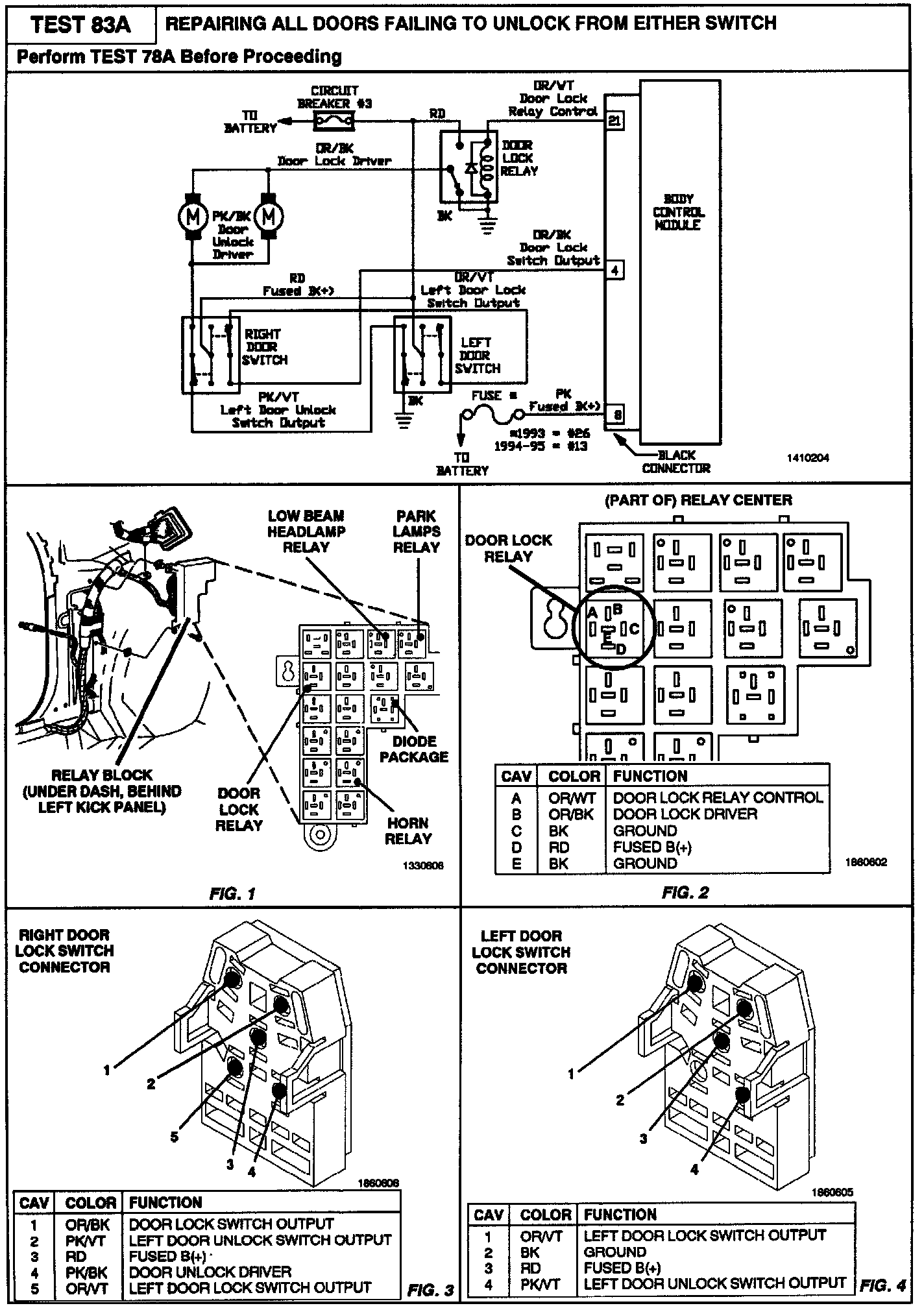

Diagnostic Chart:
Related Images:
