Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 MFI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Power Door Lock System
>>
80A All Doors Failing to Lock and Unlock From One Switch

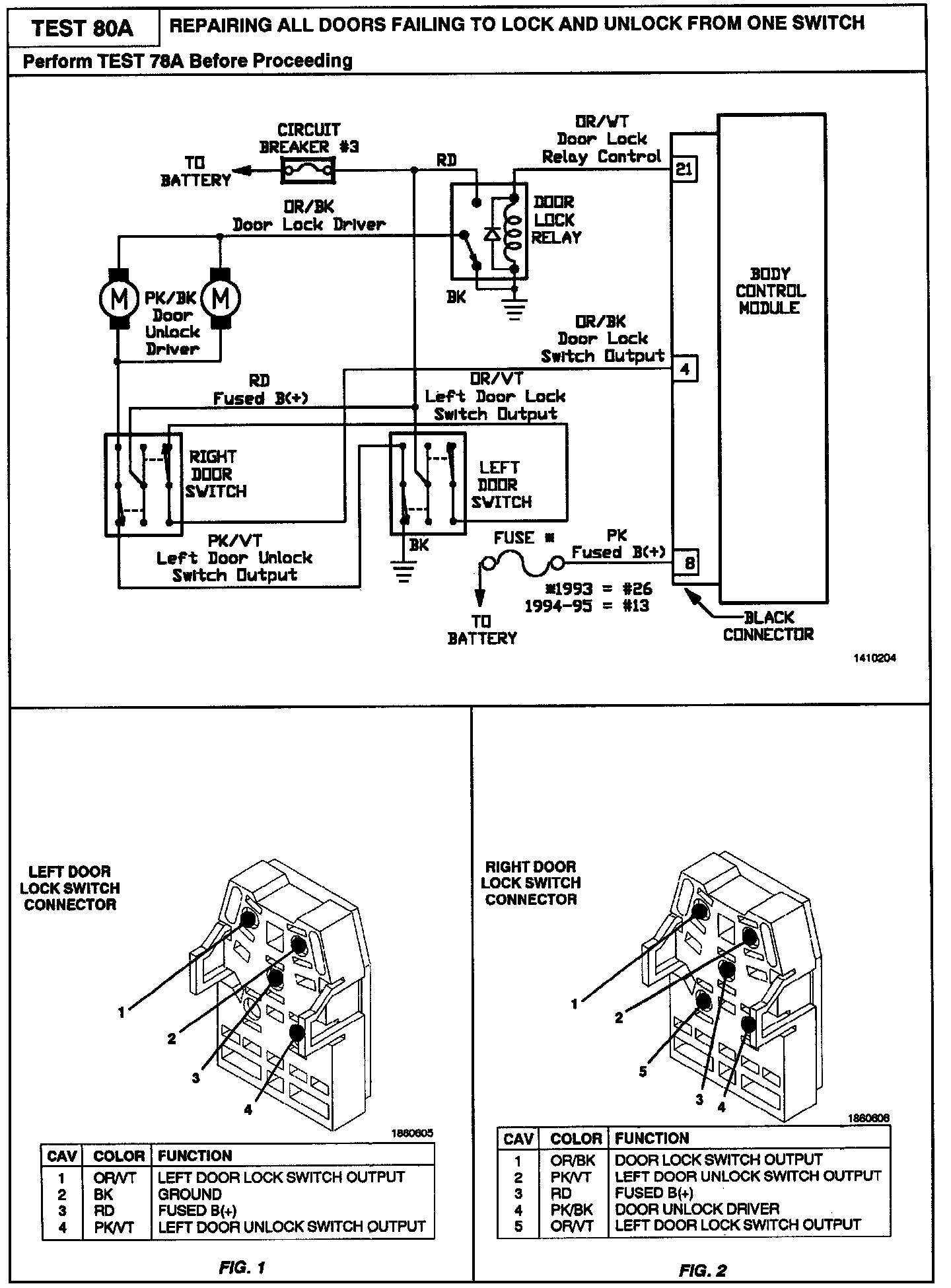

80A All Doors Failing to Lock and Unlock From One Switch

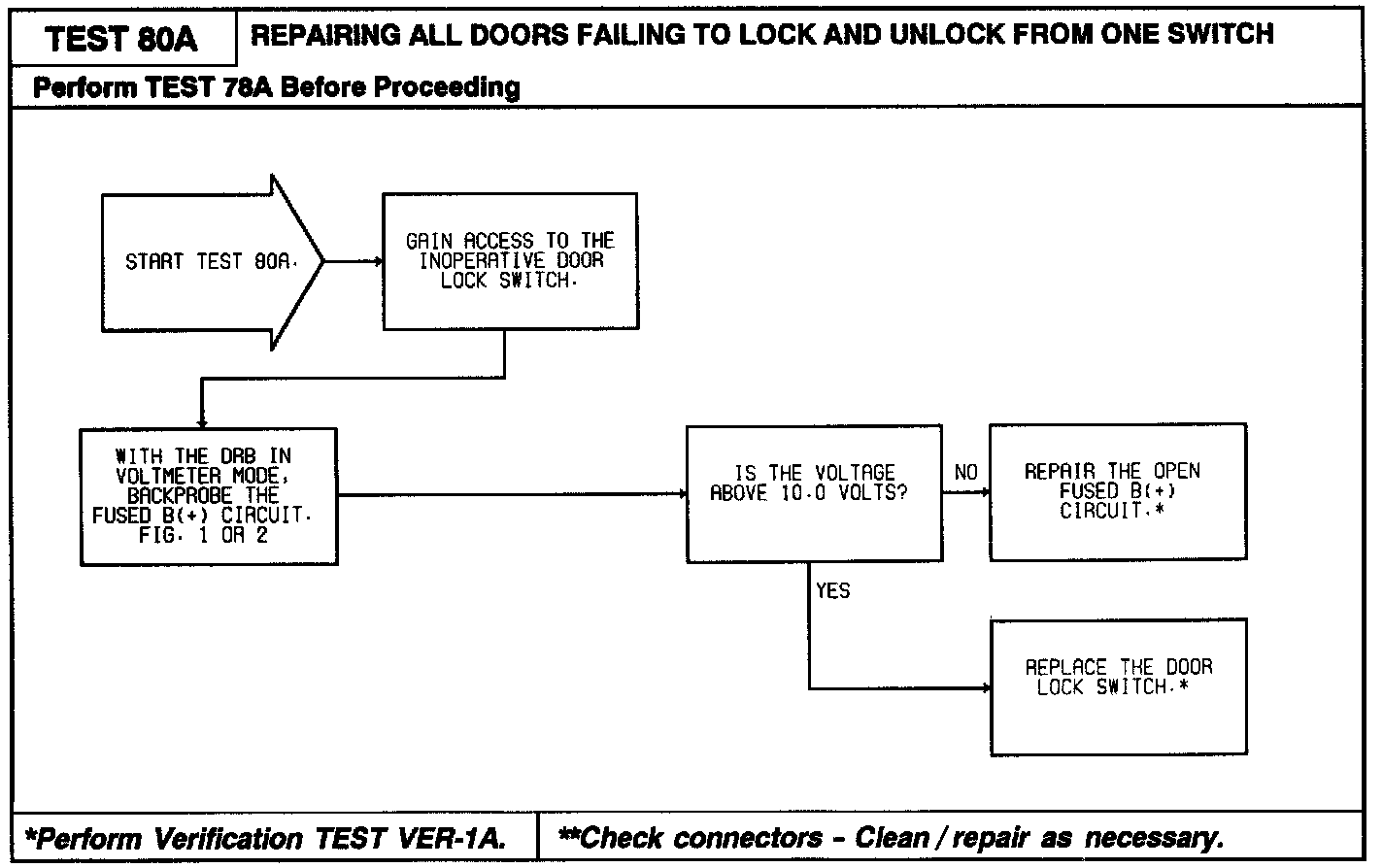

Diagnostic Chart:
Related Images:
