Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 MFI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Power Door Lock System With Remote Keyless Entry (RKE)
>>

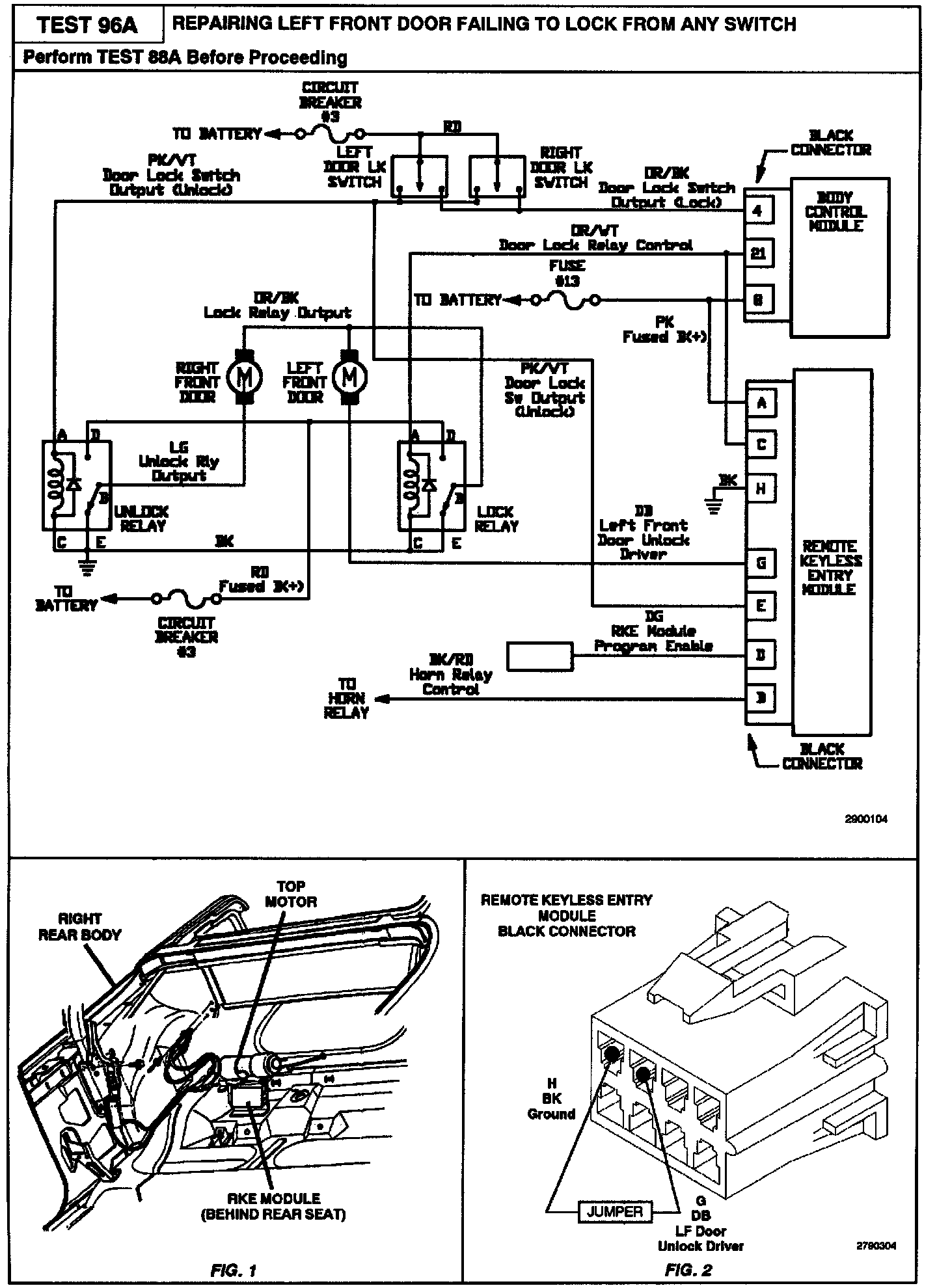

96A L/F Door Failing to Lock From Any Switch
96A L/F Door Failing to Lock From Any Switch

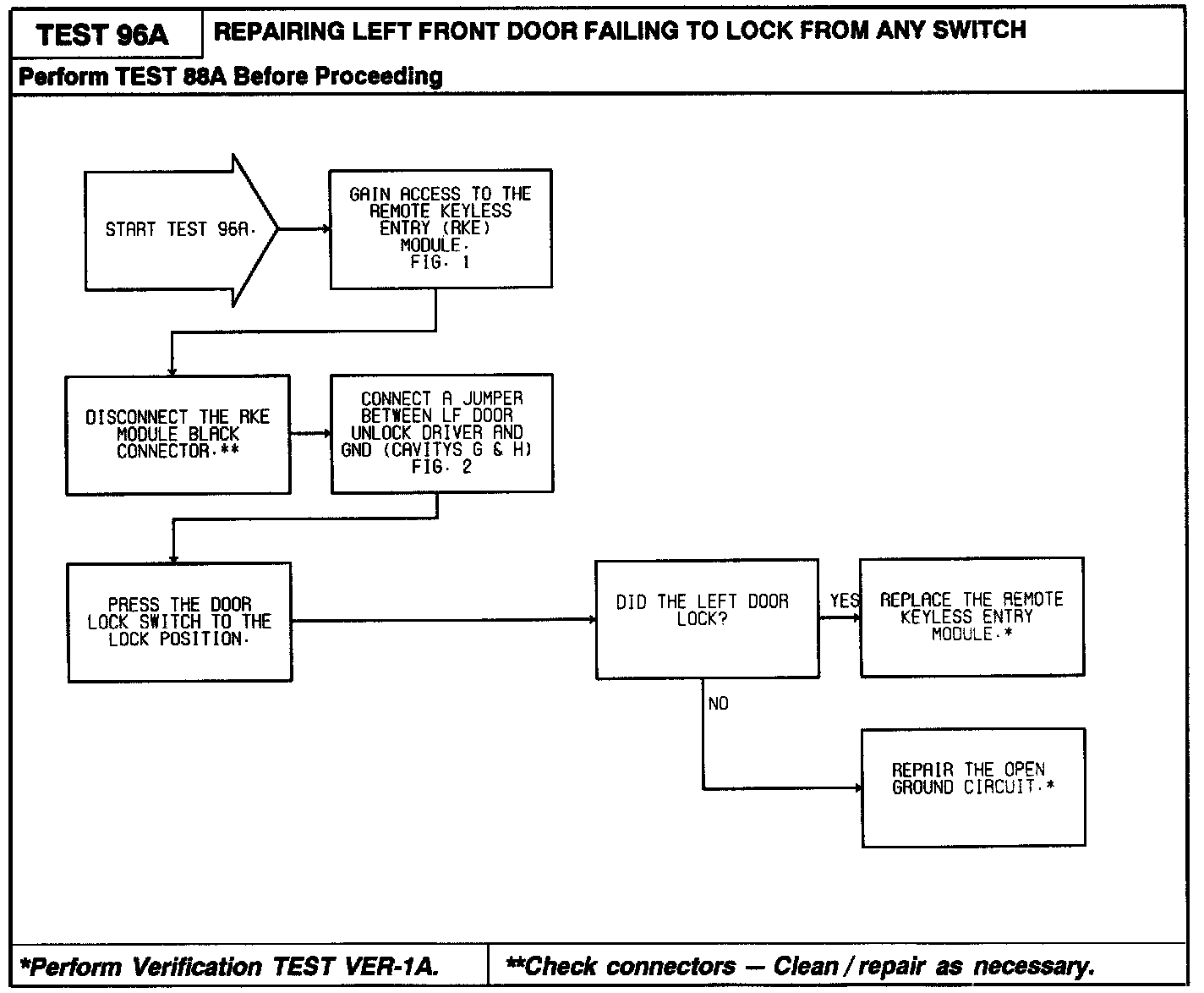

Diagnostic Chart:
Related Images:
