Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 MFI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Power Door Lock System With Remote Keyless Entry (RKE)
>>
92A Repairing Both Doors Failing to Lock From One Switch
92A Repairing Both Doors Failing to Lock From One Switch

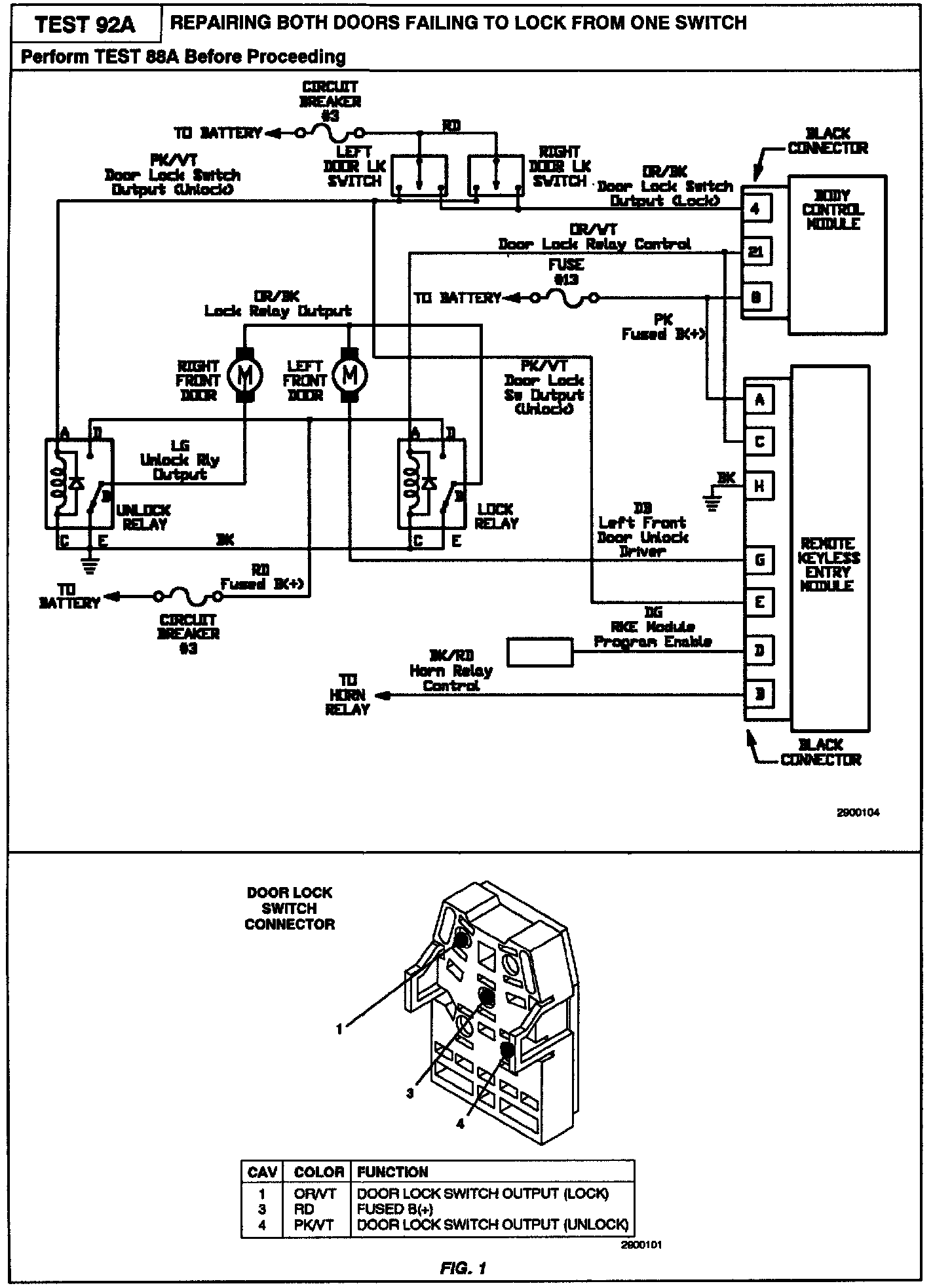

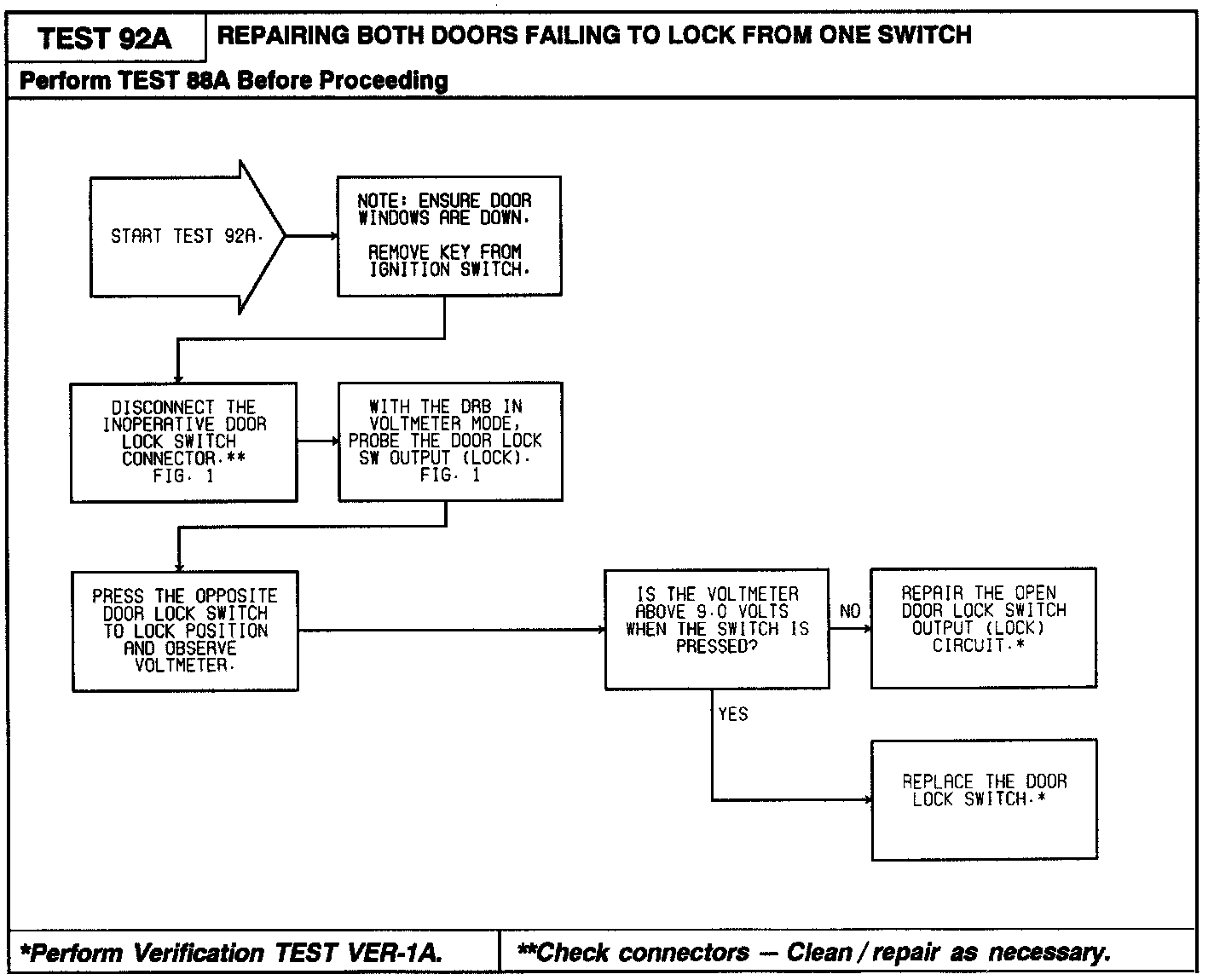

Diagnostic Chart:
Related Images:
