FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chrysler
>>
1994
>>
Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 MFI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Power Door Lock System With Remote Keyless Entry (RKE)
>>

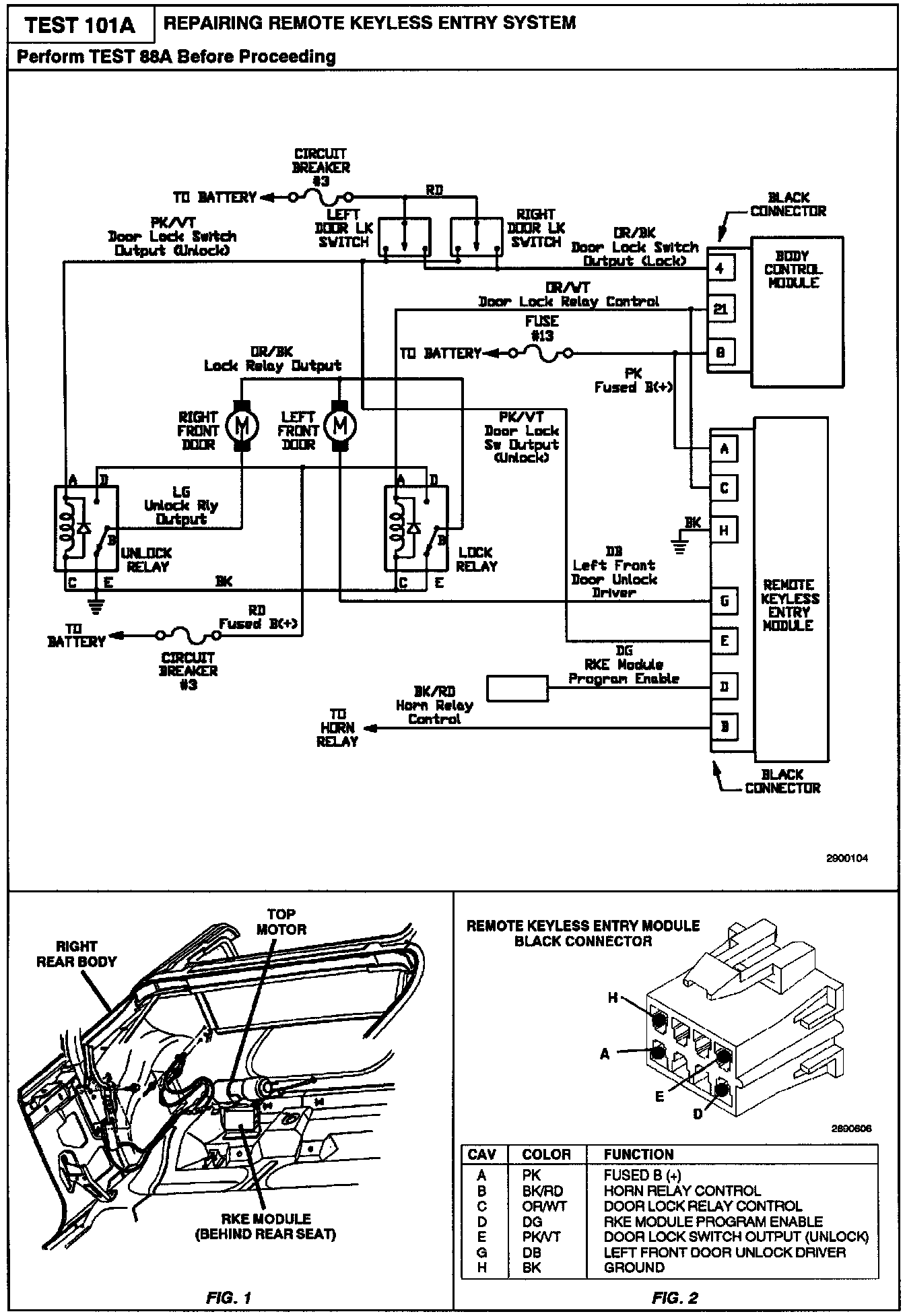

101A Repairing Remote Keyless Entry System
101A Repairing Remote Keyless Entry System

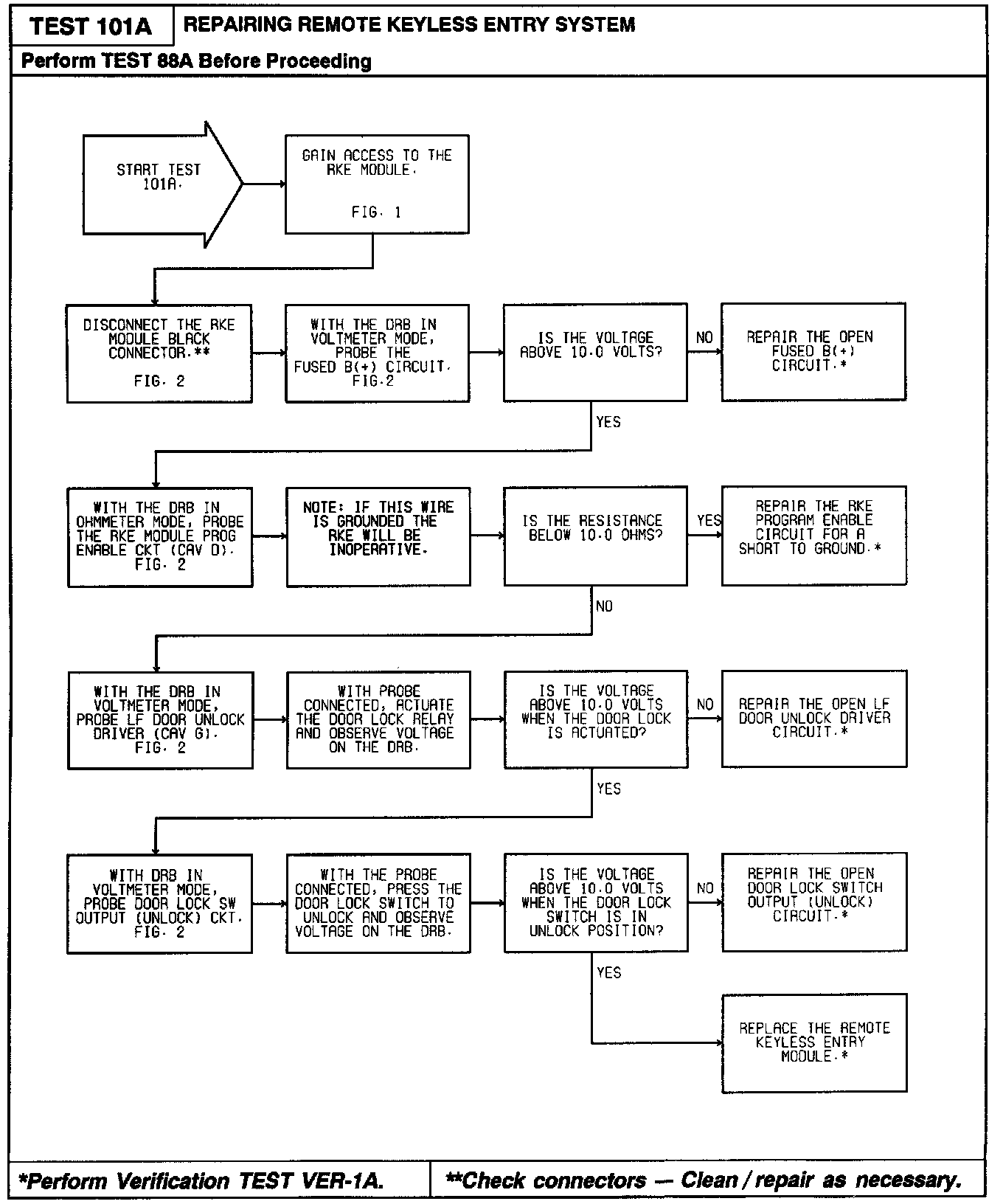

Diagnostic Chart:
Related Images:
