64A Repairing EVIC Illumination Dimming
64A Repairing EVIC Illumination Dimming

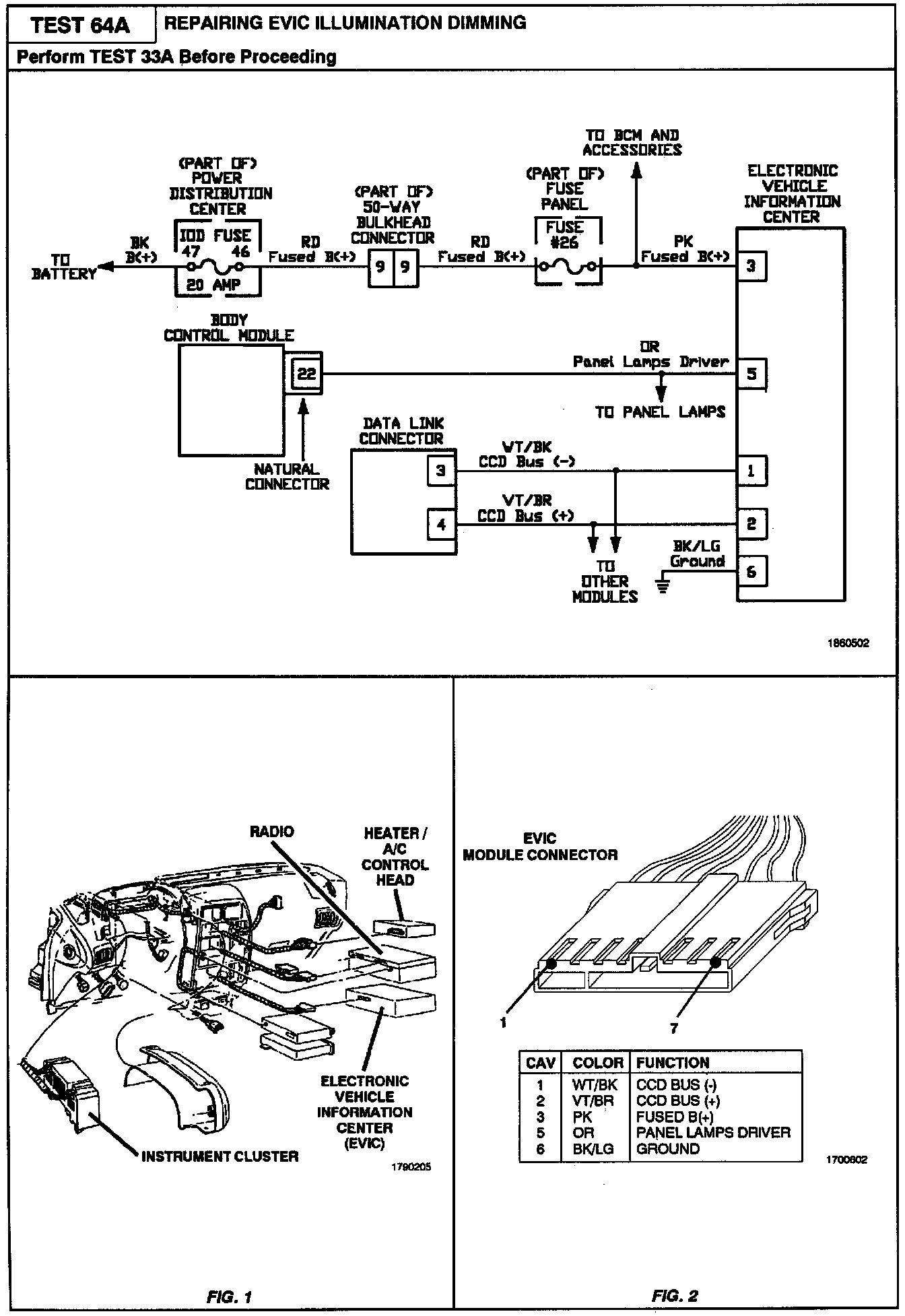

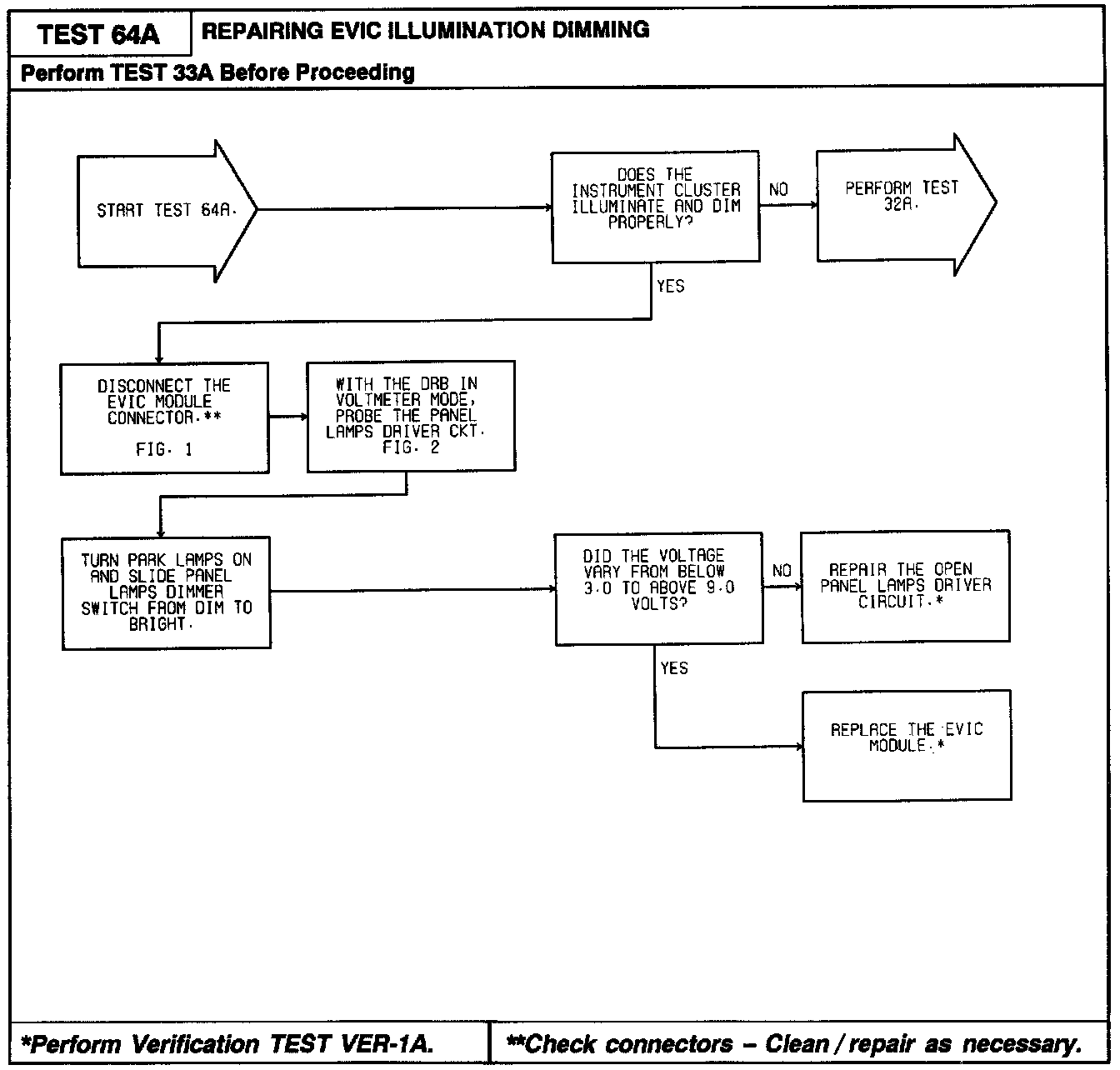

Diagnostic Chart:
Related Images:
