Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 MFI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
EVIC Panel Monitor
>>

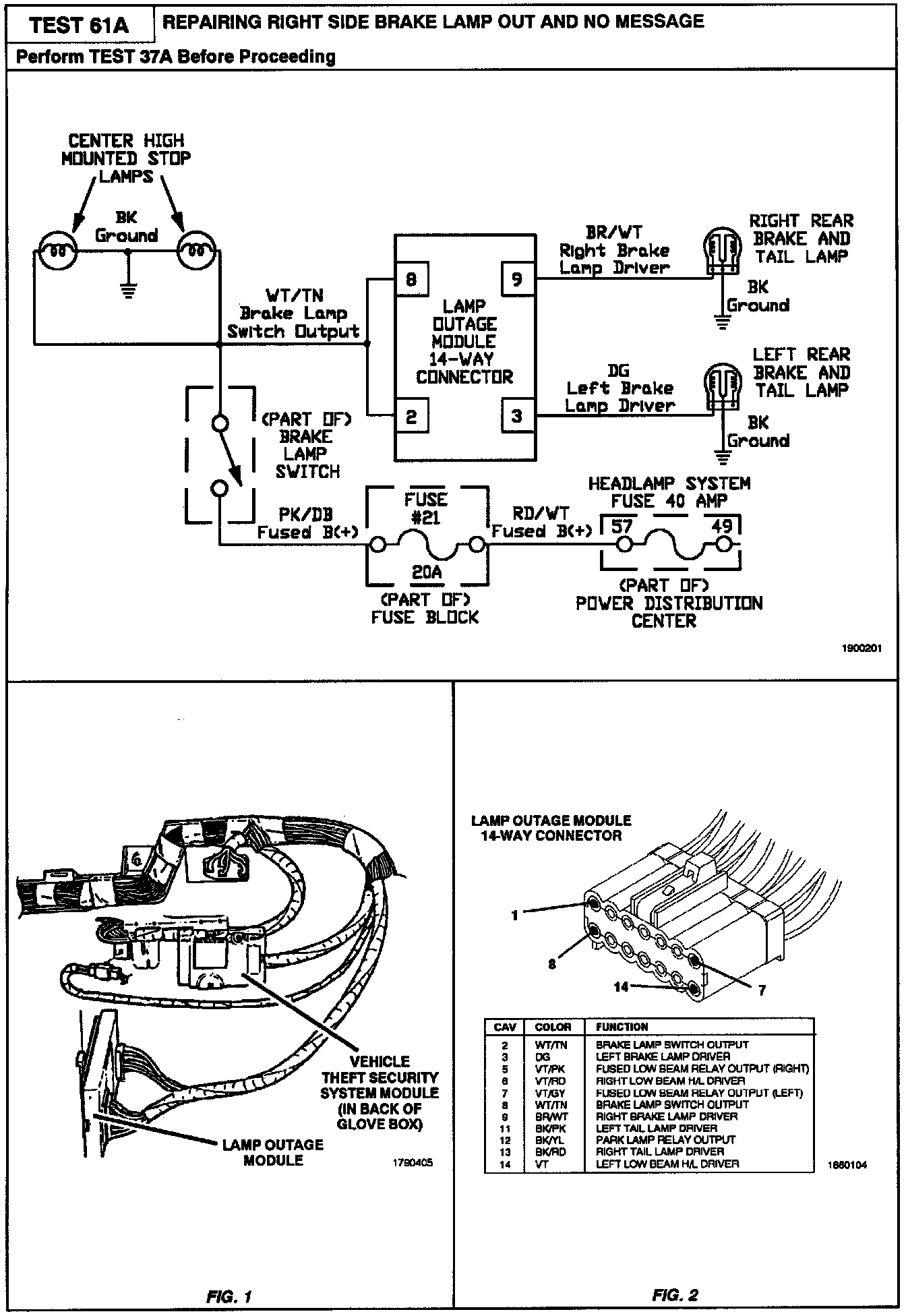

61A Repairing Right Side Brake Lamp Out and No Message
61A Repairing Right Side Brake Lamp Out and No Message

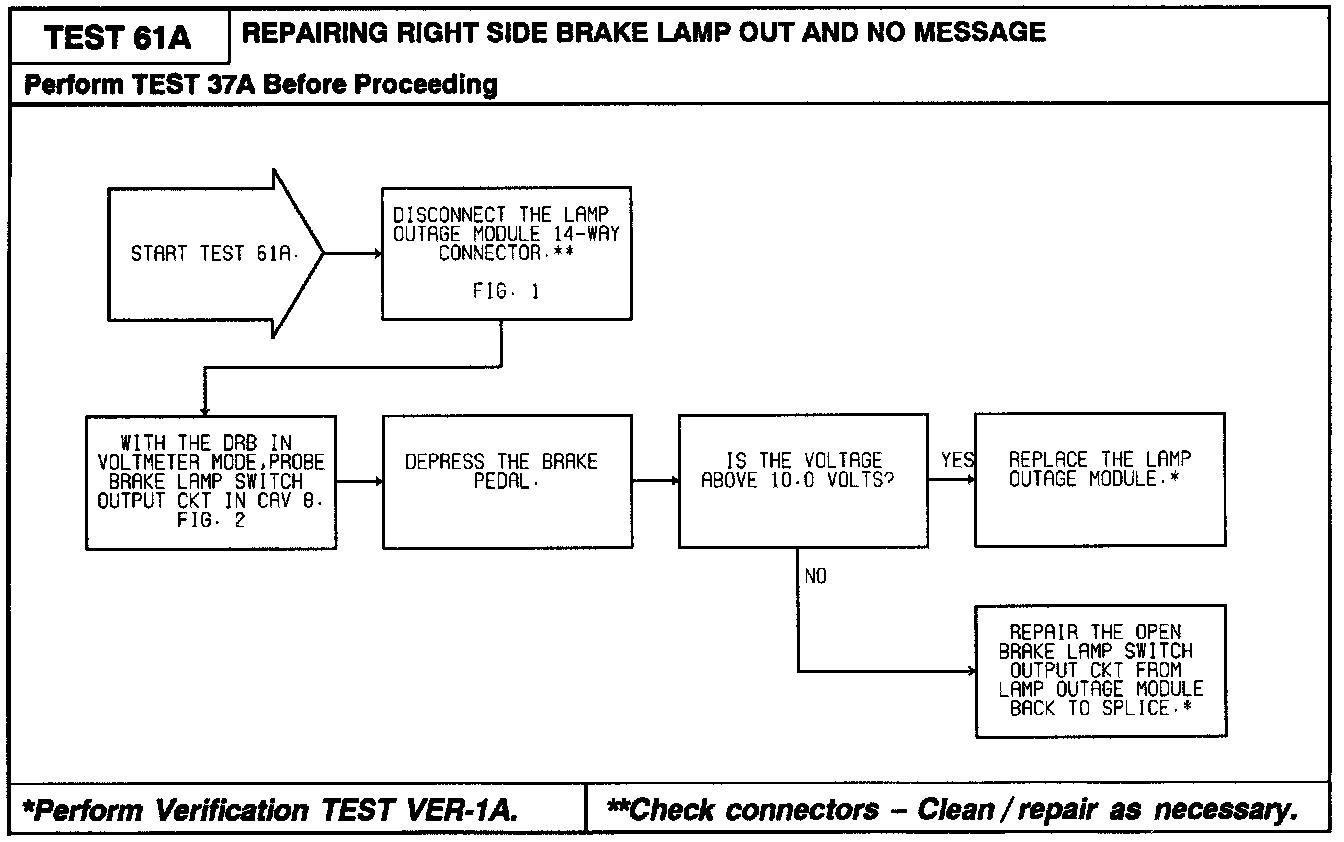

Diagnostic Chart:
Related Images:
