Home >> Chrysler >> 1994 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 MFI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Body Control Module >> Oil Pressure Sending Unit >> 122B Repairing Faulty Oil Gauge/Pressure Problem >> Part 2 of 2

Part 2 of 2

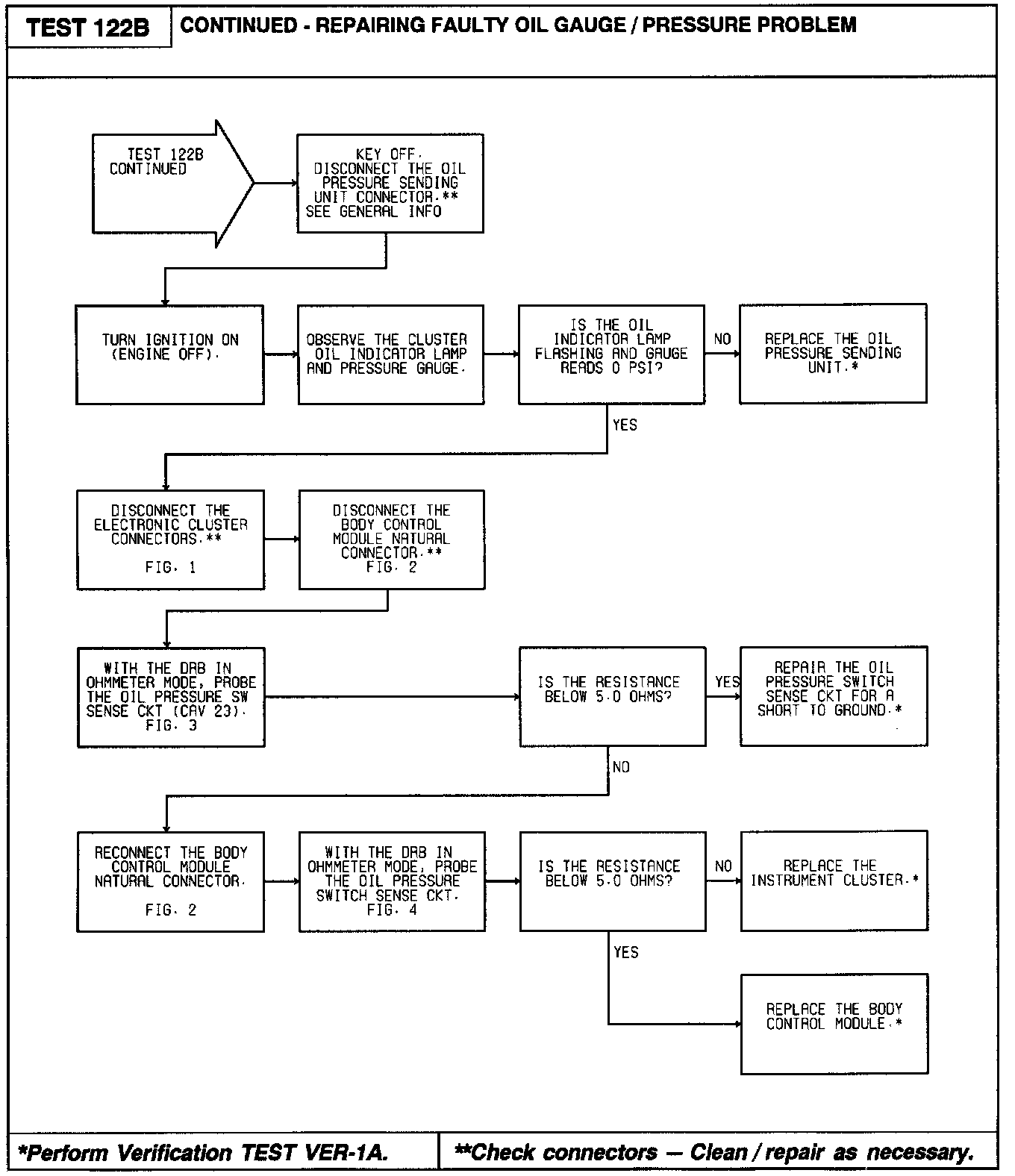

Diagnostic Chart:

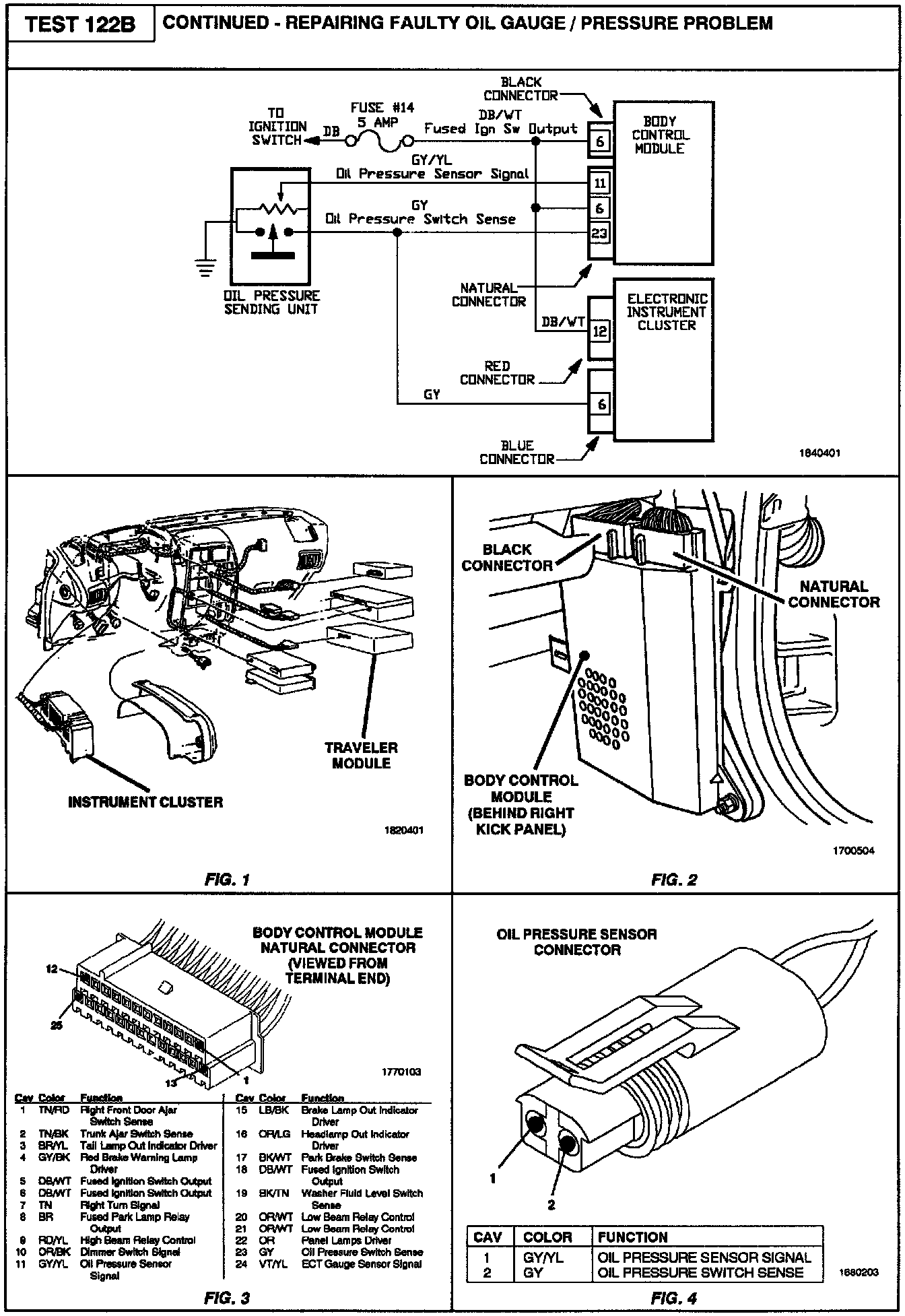

Related Images:
